QC5000-ITX/WiFi
QC5000-ITX
23
English

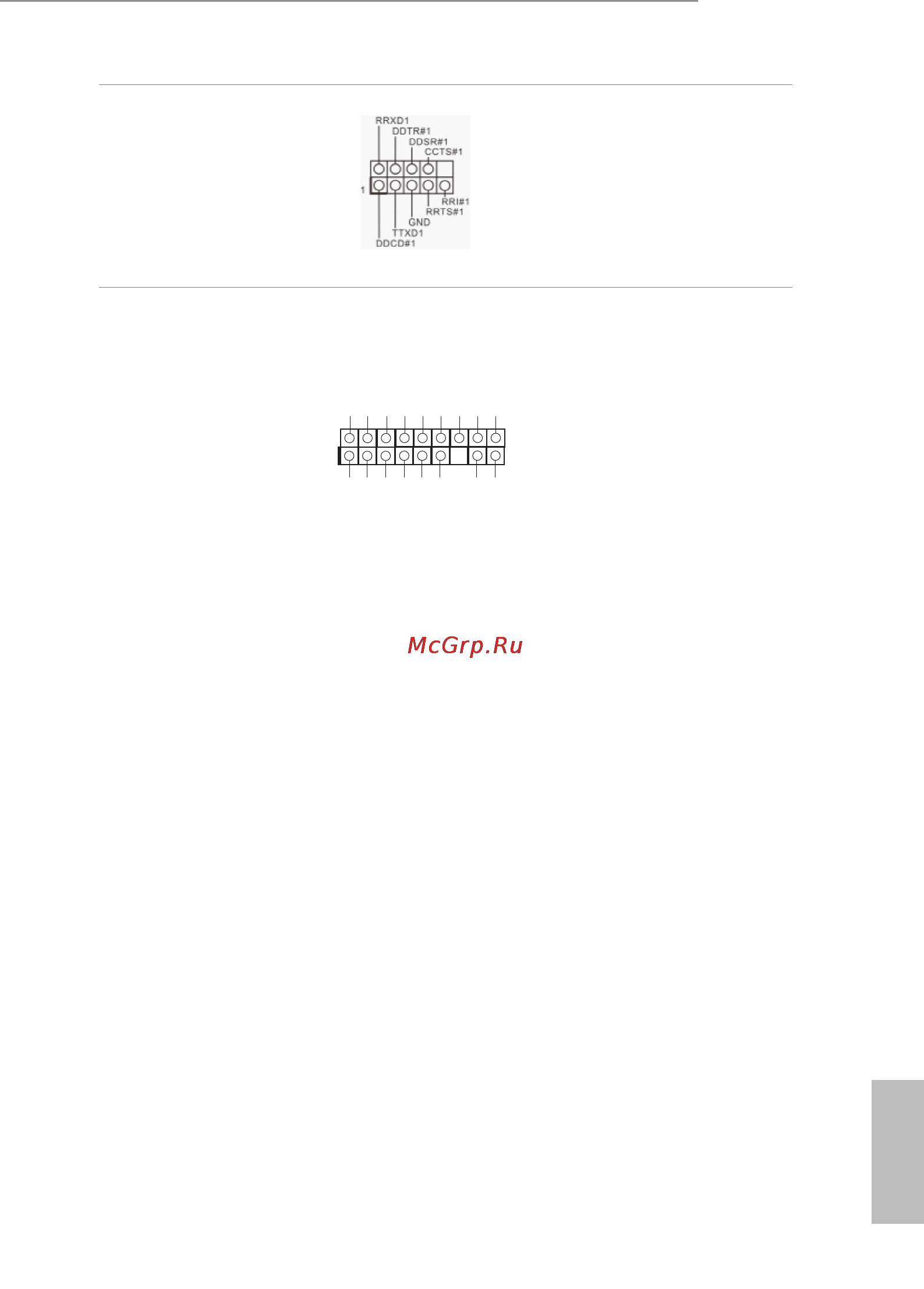

Serial Port Header
(9-pin COM1)
(see p.10, No. 14)
is COM1 header
supports a serial port
module.
TPM Header
(17-pin TPMS1)
(see p.10, No. 17)
is connector supports
Trusted Platform Module
(TPM) system, which can
securely store keys, digital
certicates, passwords,
and data. A TPM system
also helps enhance
network security, protects
digital identities, and
ensures platform integrity.
1
G N D
S M B_DATA_ MAIN
LAD2
LAD1
G N D
S _ PWRDWN#
S E RIRQ#
G N D
P C ICLK
P C IRST#
LAD3
+ 3 V
LAD0
+ 3 VSB
G N D
F R AME
S M B_CLK_M AIN
