ASRock qc5000-itx/wifi [46/60] Super io configuration
![ASRock qc5000-itx/wifi [46/60] Super io configuration](/views2/1159448/page46/bg2e.png)
English
42

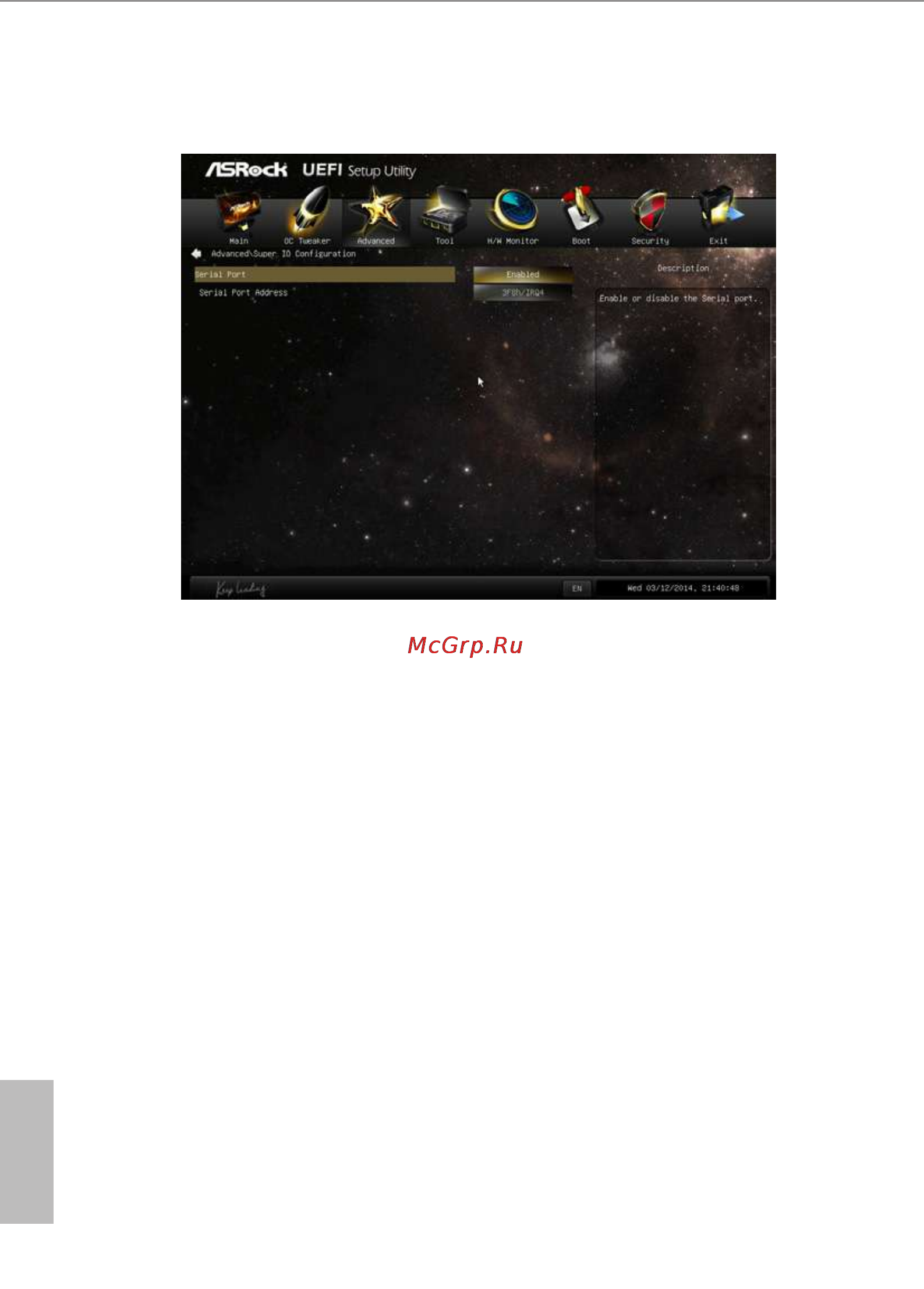

4.4.4 Super IO Conguration
Serial Port
Enable or disable the Serial port.
Serial Port Address
Select the address of the Serial port.
