English
12

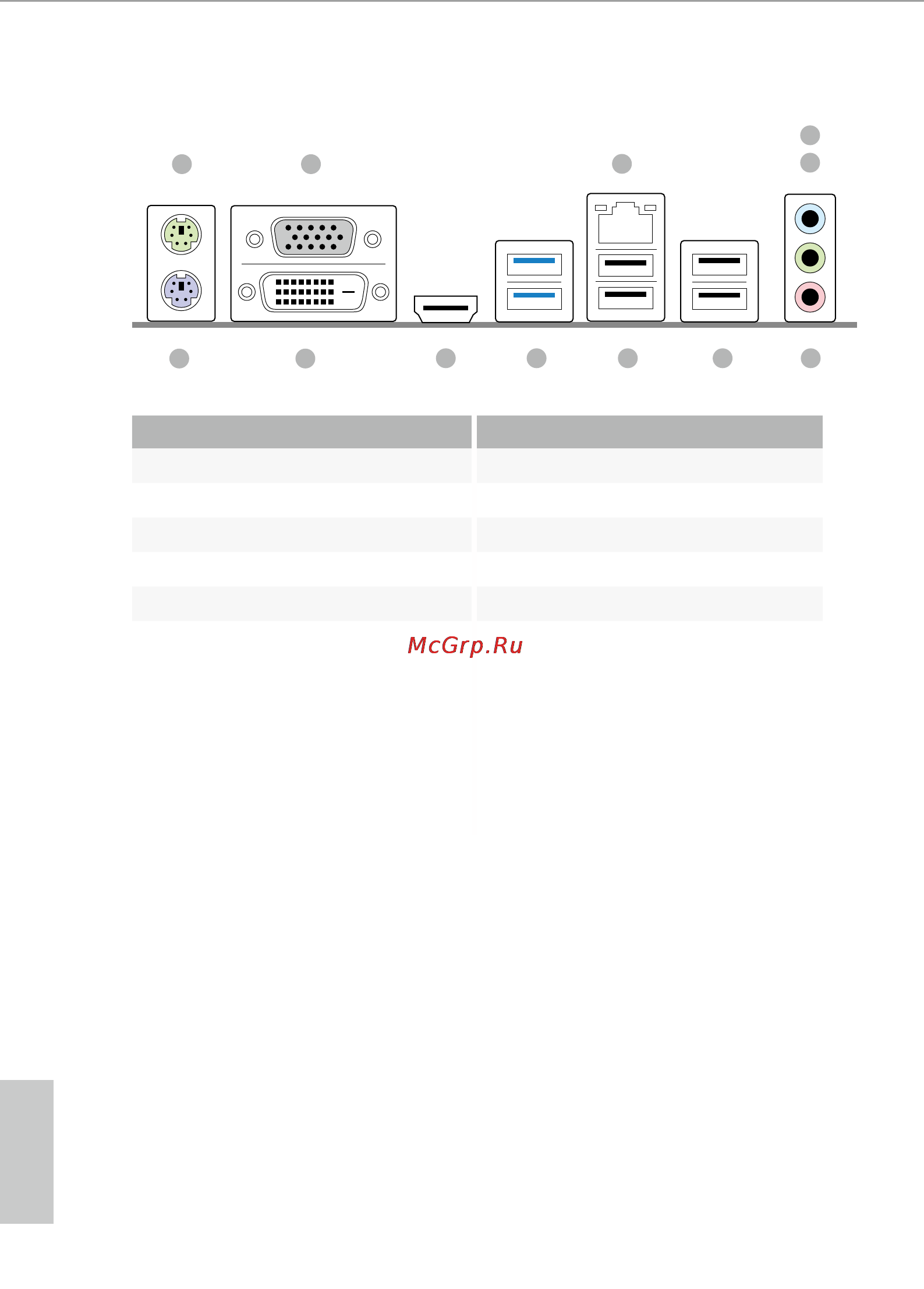

1.5 I/O Panel
No. Description No. Description
1 PS/2 Mouse Port (Green) 7 USB 2.0 Ports (USB45)
2 D-Sub Port (VGA1) 8 USB 2.0 Ports (USB23)
3 LAN RJ-45 Port* 9 USB 3.0 Ports (USB01)
4 Line In (Light Blue) 10 HDMI Port
5 Front Speaker (Lime) 11 DVI-D Port (DVI1)
6 Microphone (Pink) 12 PS/2 Keyboard Port (Purple)
1 2
3
5
4
678910
1112
