English
8

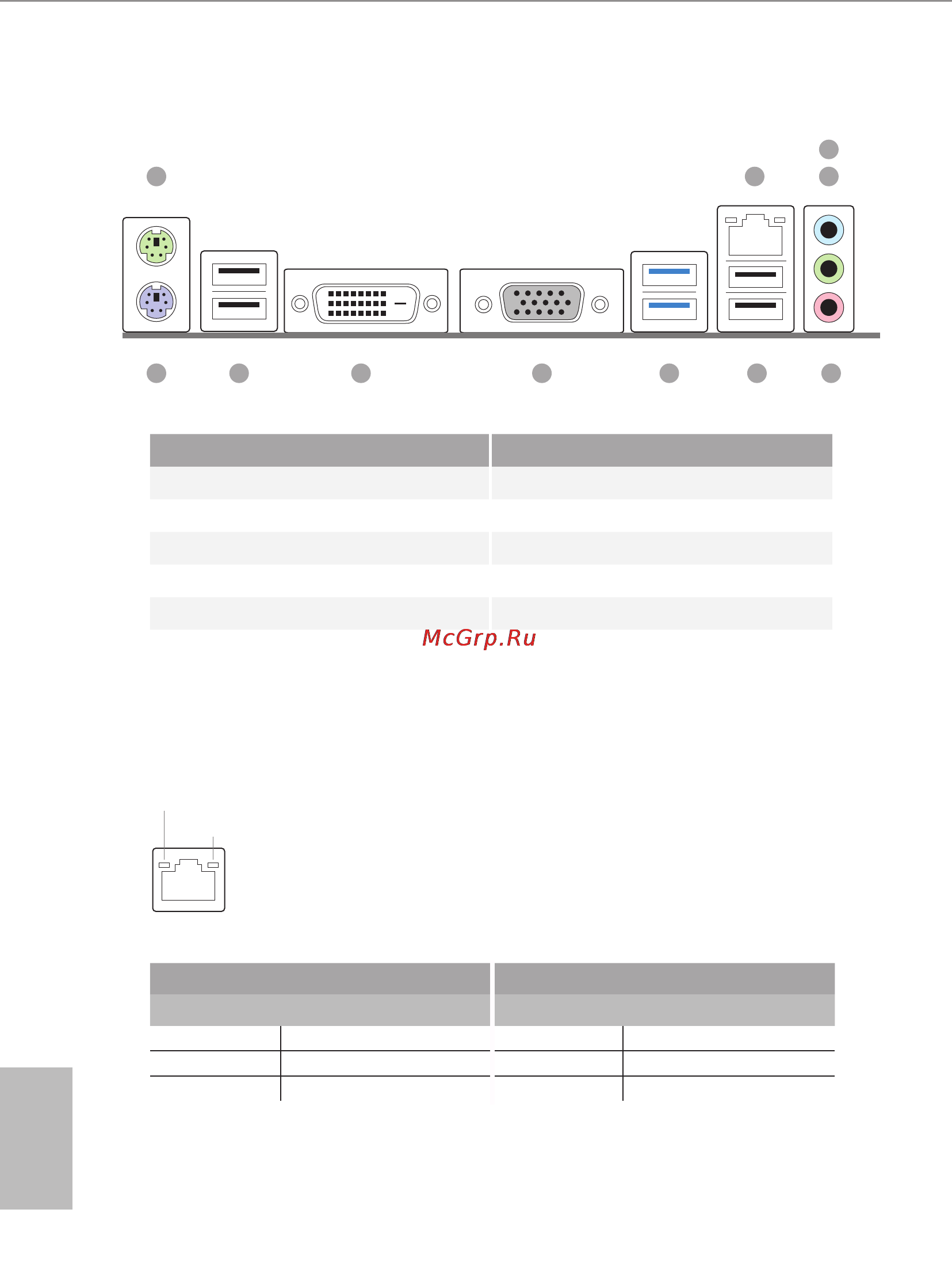

1.4 I/O Panel
No. Description No. Description
1 PS/2 Mouse Port (Green) 7 USB 3.0 Ports (USB23)
2 LAN RJ-45 Port* 8 D-Sub Port (VGA1)
3 Line In (Light Blue) 9 DVI-D Port (DVI1)
4 Front Speaker (Lime) 10 USB 2.0 Ports (USB01)
5 Microphone (Pink) 11 PS/2 Keyboard Port (Purple)
6 USB 2.0 Ports (USB45)
* There are two LEDs on the LAN port. Please refer to the table below for the LAN port LED
indications.
Activity / Link LED Speed LED
Status Description Status Description
Off No Link Off 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
1 2 4
567891011
3
