English
Fatal1ty Z97X Killer/3.1 Series

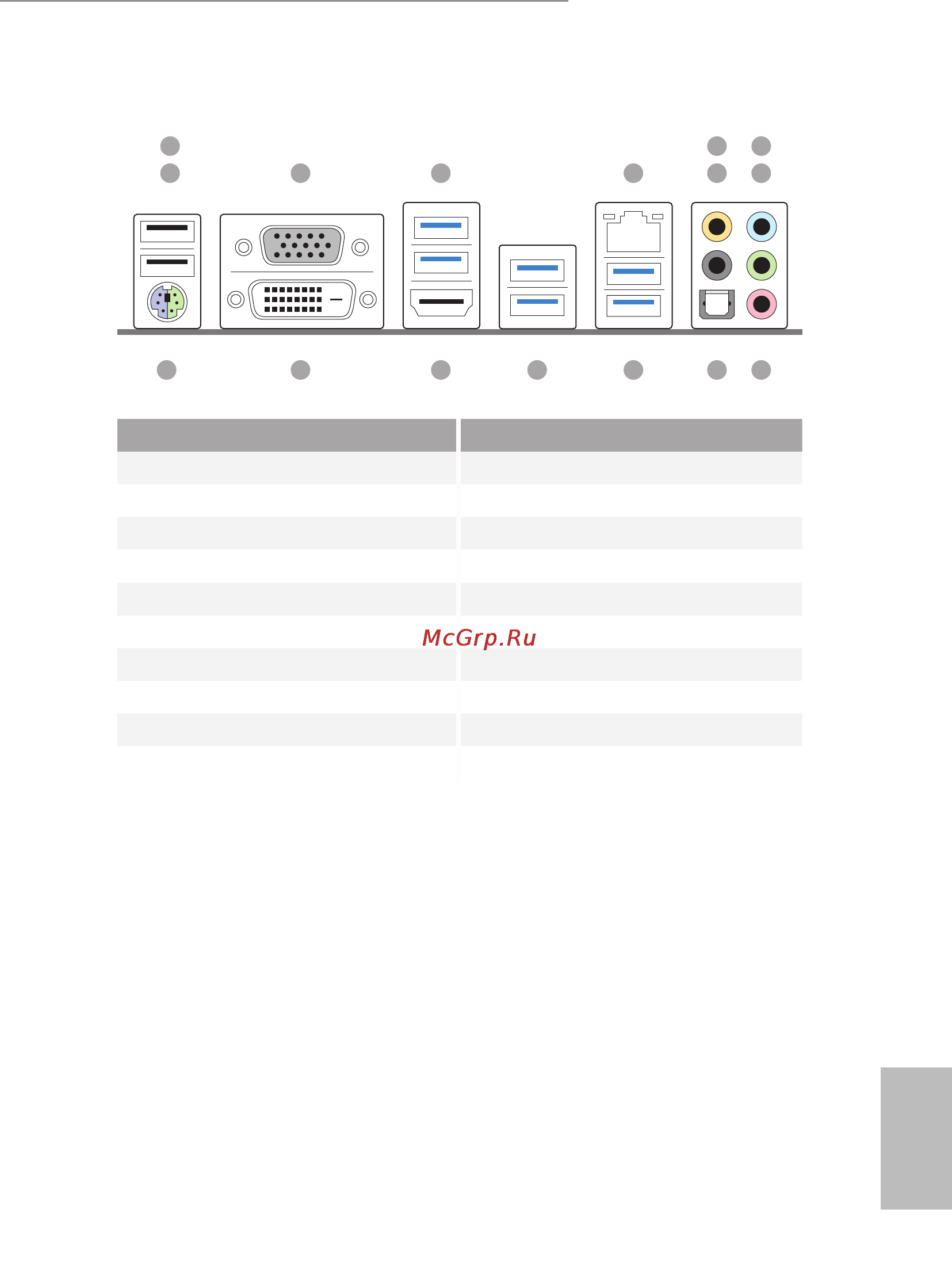

1.4 I/O Panel
No. Description No. Description
1 Fatal1ty Mouse Port (USB0) 10 Microphone (Pink)
2 USB 2.0 Port (USB1) 11 Optical SPDIF Out Port
3 D-Sub Port 12 USB 3.0 Ports (USB3_2_3)
4 USB 3.0 Ports (USB3_0_1) (Intel® Z97)
(Intel® Z97) 13 USB 3.0 Ports (USB3_A0_A1)
5 LAN RJ-45 Port* (ASMedia ASM1042AE)
6 Central / Bass (Orange) 14 HDMI Port
7 Rear Speaker (Black) 15 DVI-D Port
8 Line In (Light Blue) 16 PS/2 Mouse/Keyboard Port
9 Front Speaker (Lime)**
3 42
1
5 7
101116 12131415
6
9
8
