24
English

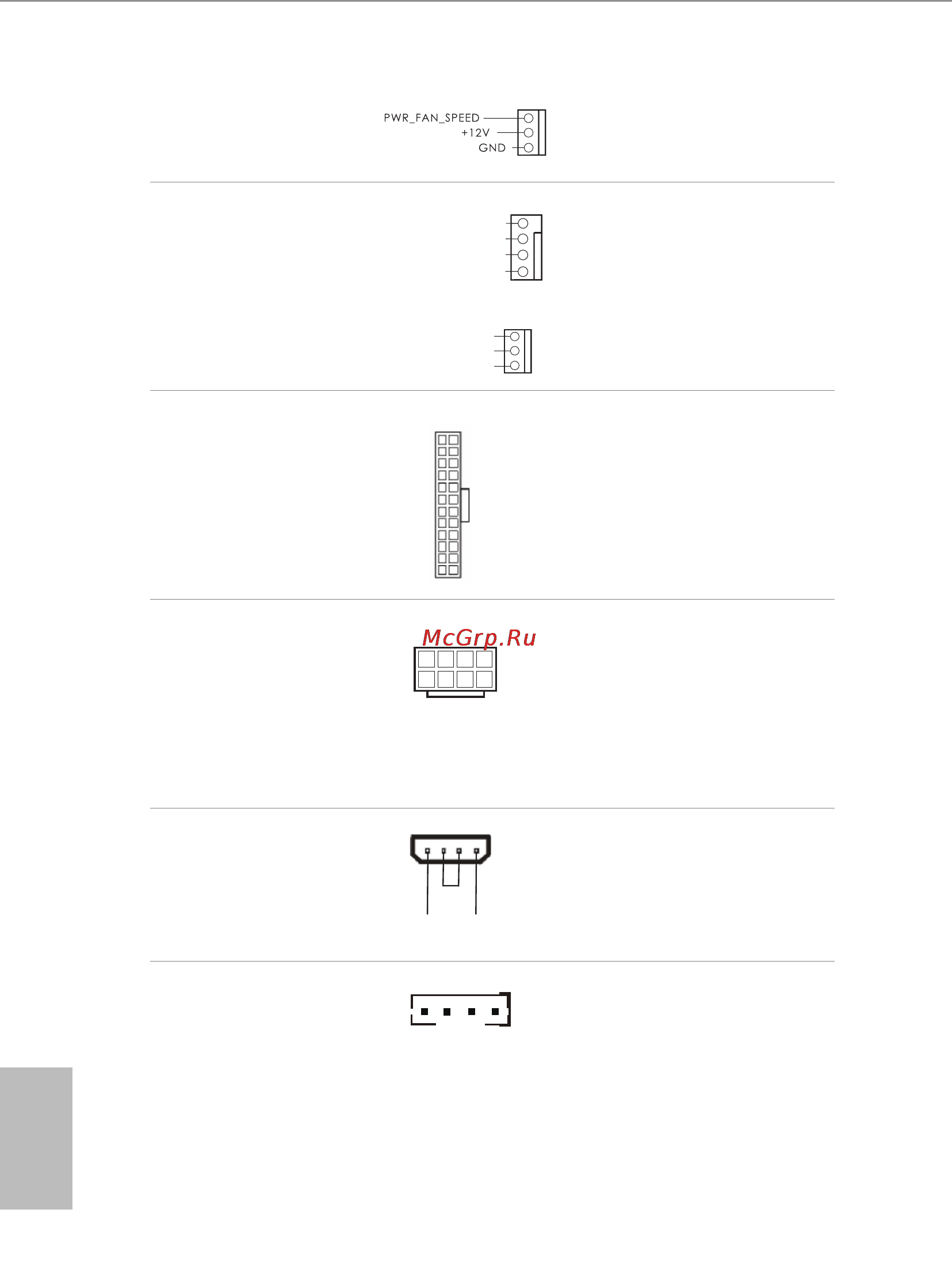

(3-pin PWR_FAN1)
(see p.12, No. 30)
CPU Fan Connectors
(4-pin CPU_FAN1)
(see p.12, No. 2)
(3-pin CPU_FAN2)
(see p.12, No. 29)
is motherboard pro-
vides a 4-Pin CPU fan
(Quiet Fan) connector.
If you plan to connect a
3-Pin CPU fan, please
connect it to Pin 1-3.
ATX Power Connector
(24-pin ATX PWR1)
(see p.12, No. 5)
is motherboard pro-
vides a 24-pin ATX power
connector. To use a 20-pin
ATX power supply, please
plug it along Pin 1 and Pin
13.
ATX 12V Power
Connector
(8-pin ATX12V1)
(see p.12, No. 1)
is motherboard pro-
vides an 8-pin ATX 12V
power connector. To use a
4-pin ATX power supply,
please plug it along Pin 1
and Pin 5.
PCIe Power Connector
(4-pin PCIE _ PWR1)
(see p.12, No. 25)
Please connect a 4 pin molex
power cable to this connector
when more than three PCI
Express cards are installed.
HDD Saver Connector
(4-pin SATA_PWR_1)
(see p.12, No. 7)
Please connect the HDD Saver
Cable to this connector to
manage the power state of HDD.
12
1
24
13
GN D
+12V
FAN_SPEED
FA
N_SPEED_CONTROL
1
2
3
4
GND
FAN_SPEED
FAN_VOLTAGE
14
58
1
+12V DETECT
GND
