25
English
Z170 Extreme4+ / Z170 Extreme4

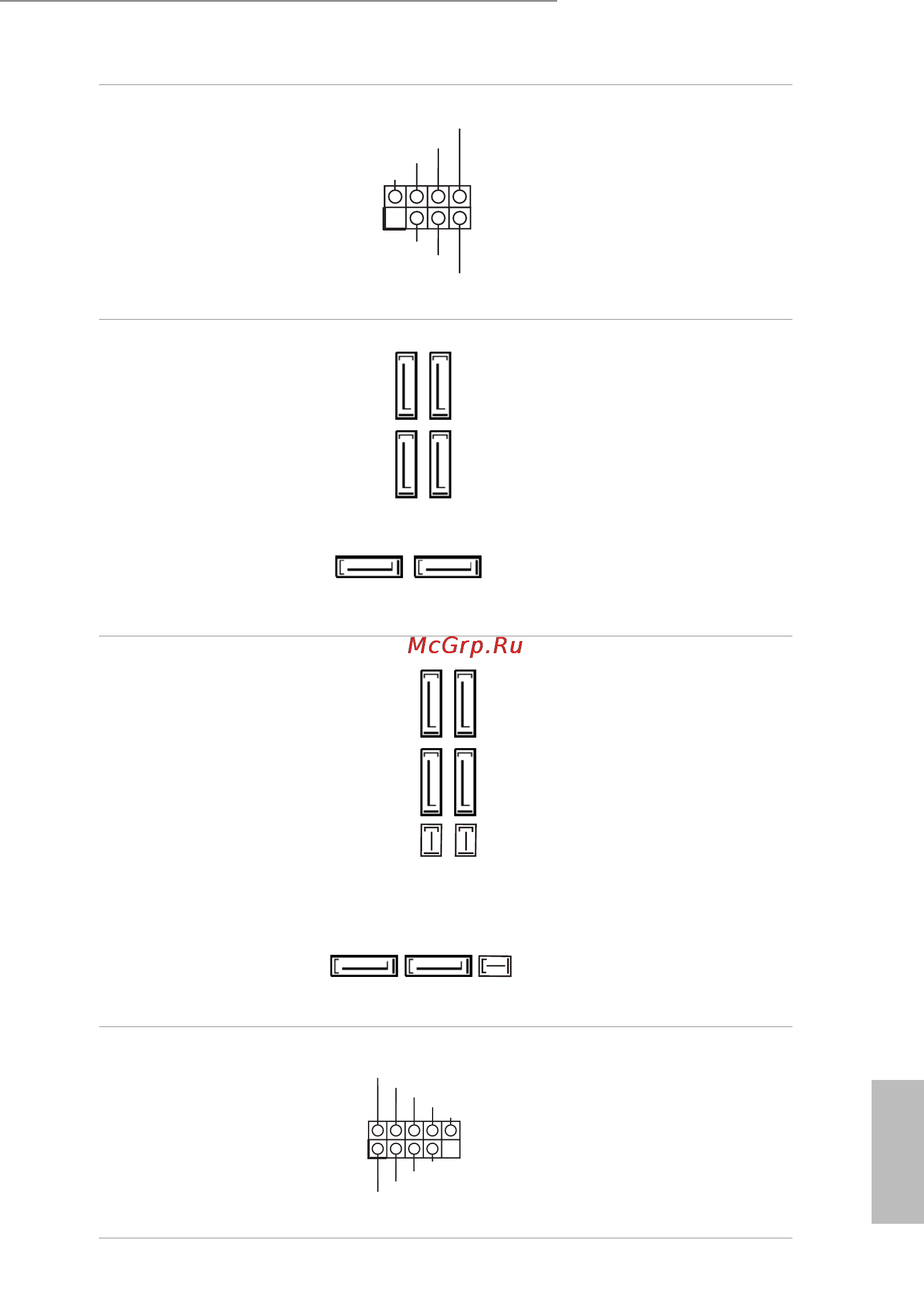

Power LED and Speaker
Header
(7-pin SPK_PLED1)
(see p.7, No. 14)
Please connect the
chassis power LED and
the chassis speaker to this
header.
Serial ATA3 Connectors
(SATA3_0_2:
see p.7, No. 9)
(SATA3_1_3:
see p.7, No. 10)
(SATA3_5_4:
see p.7, No. 16)
ese six SATA3
connectors support SATA
data cables for internal
storage devices with up to
6.0 Gb/s data transfer rate.
Serial ATA Express
Connectors
(SATA3_5_4:
see p.7, No. 16)
(SATA_EXP_0_1:
see p.7, No. 11)
Please connect either
SATA or PCIe storage
devices to these
connectors. e upper
SATA Express Connector
(SATA3_EXP_0) is shared
with the SATA3_0,
SATA3_1 and the Ultra
M.2 Socket (M2_1).
USB 2.0 Headers
(9-pin USB_1_2)
(see p.7, No. 21)
(9-pin USB_3_4)
(see p.7, No. 20)
ere are two headers
on this motherboard.
Each USB 2.0 header can
support two ports.
1
+5V
DUMMY
PLED+
PLED+
PLED-
DUMMY
SPEAKER
DUMMY
GND
GND
P+
P-
USB_PWR
P+
P-
USB_PWR
1
SATA3_0SATA3_1
SATA3_2SATA3_3
SATA3_4 SATA3_5
SATA3_4 SATA3_5 SATA_EXP2
SATA3_0SATA3_1
SATA3_2SATA3_3
SATA_EXP_0
SATA_EXP_1
