8
English

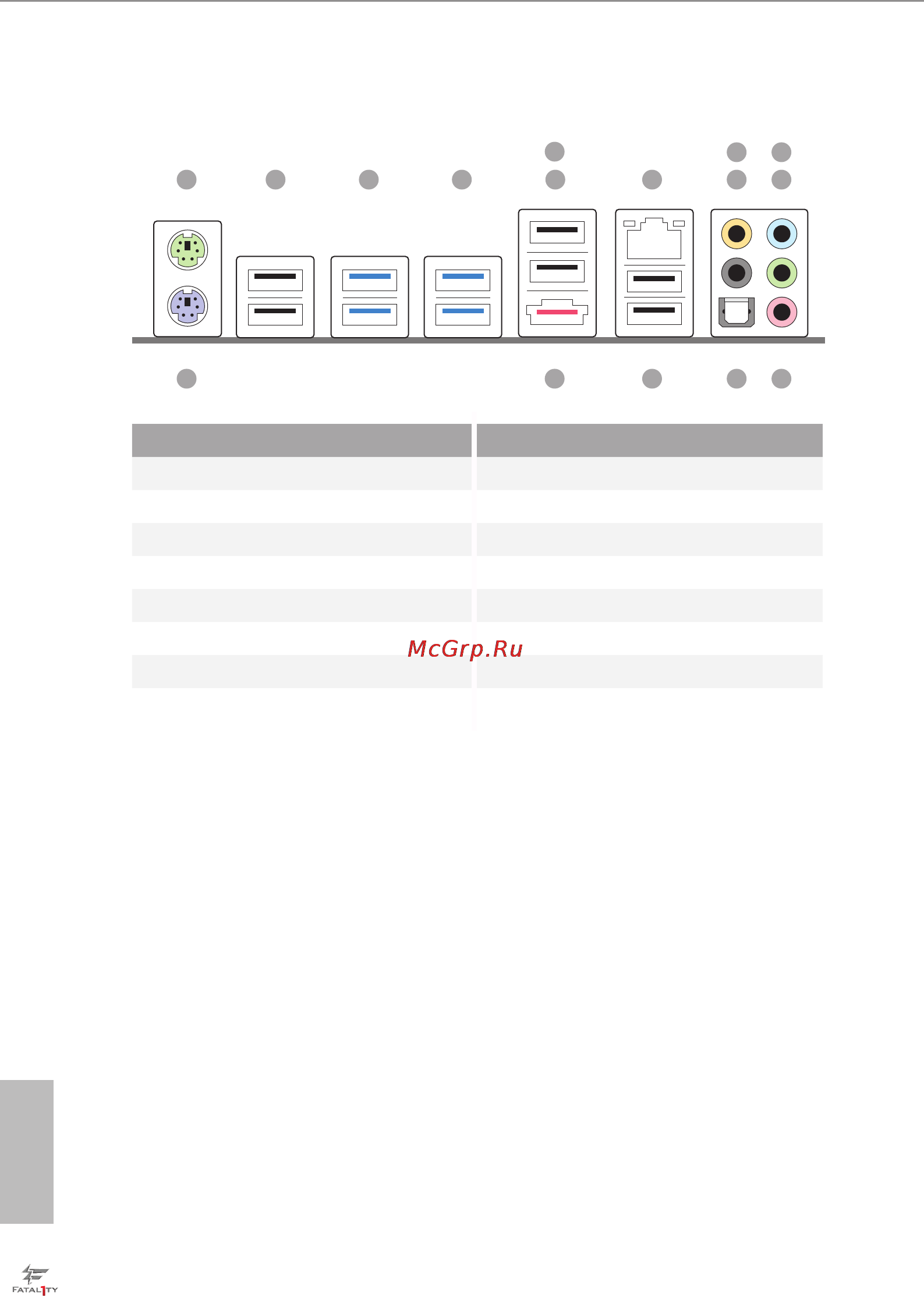

1.4 I/O Panel
No. Description No. Description
1 PS/2 Mouse Port 9 Rear Speaker (Black)
2 USB 2.0 Ports (USB_01) 10 Line In (Light Blue)
3 USB 3.0 Ports (USB3_12) 11 Front Speaker (Lime)**
4 USB 3.0 Ports (USB3_34) 12 Microphone (Pink)
5 Fatal1ty Mouse Port (USB2) 13 Optical SPDIF Out Port
6 USB 2.0 Port (USB3) 14 USB 2.0 Ports (USB_45)
7 LAN RJ-45 Port* 15 eSATA3 Port (ESATA1)***
8 Central / Bass (Orange) 16 PS/2 Keyboard Port
1 2 43 6 7 9
121316 1415
8
11
10
5
