8 9
English

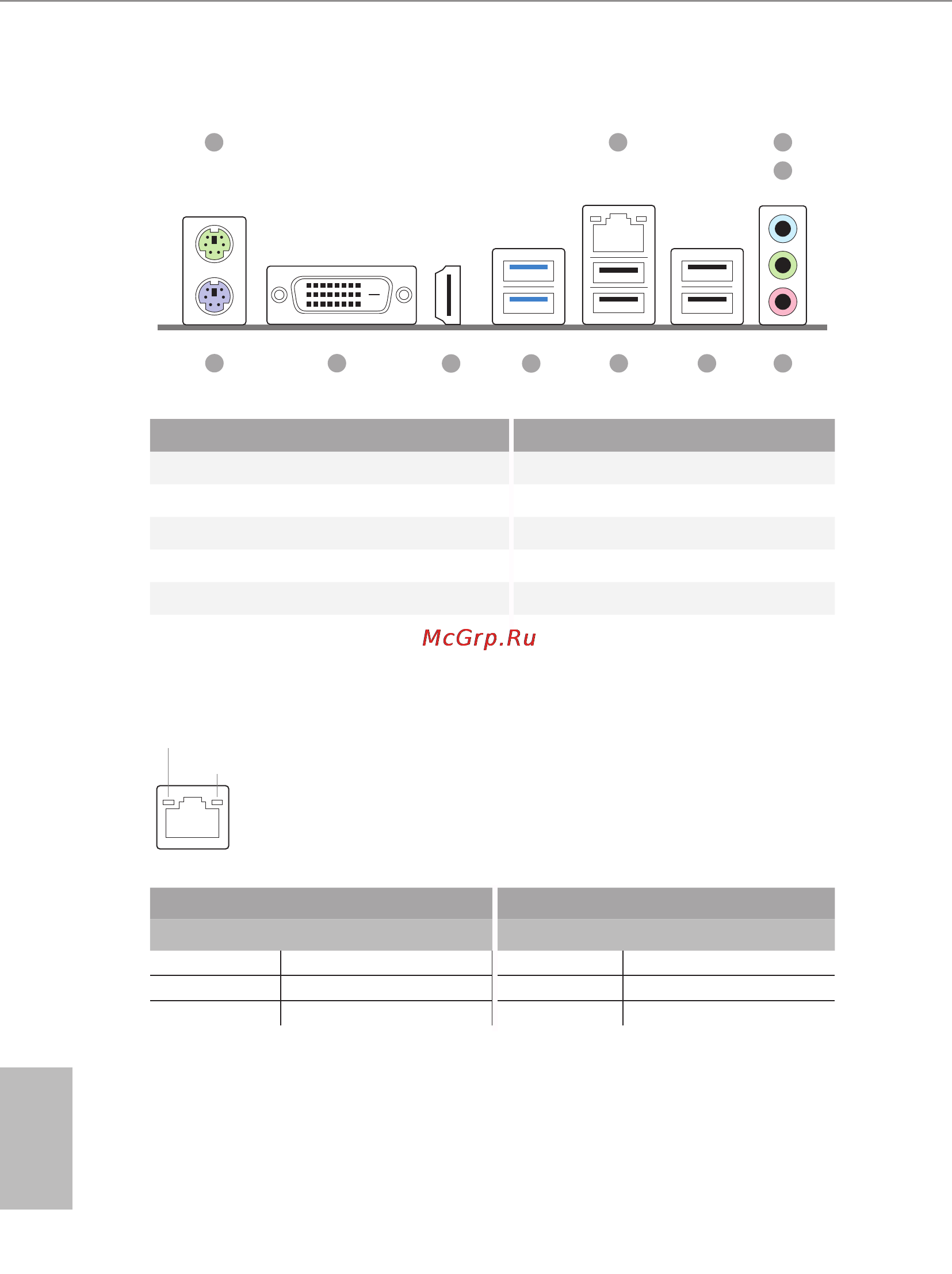

1.4 I/O Panel
No. Description No. Description
1 PS/2 Mouse Port (Green)*** 7 USB 2.0 Ports (USB01)
2 LAN RJ-45 Port* 8 USB 3.0 Ports (USB3_12)
3 Line In (Light Blue)** 9 HDMI Port
4 Front Speaker (Lime)** 10 DVI-D Port
5 Microphone (Pink)** 11 PS/2 Keyboard Port (Purple)***
6 USB 2.0 Ports (USB23)***
5
6
7
2
4
3
11
1
89
10
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
