ASRock h170a-x1/3.1 [12/78] I o panel
![ASRock h170a-x1/3.1 [12/78] I o panel](/views2/1159608/page12/bgc.png)
8 9
English

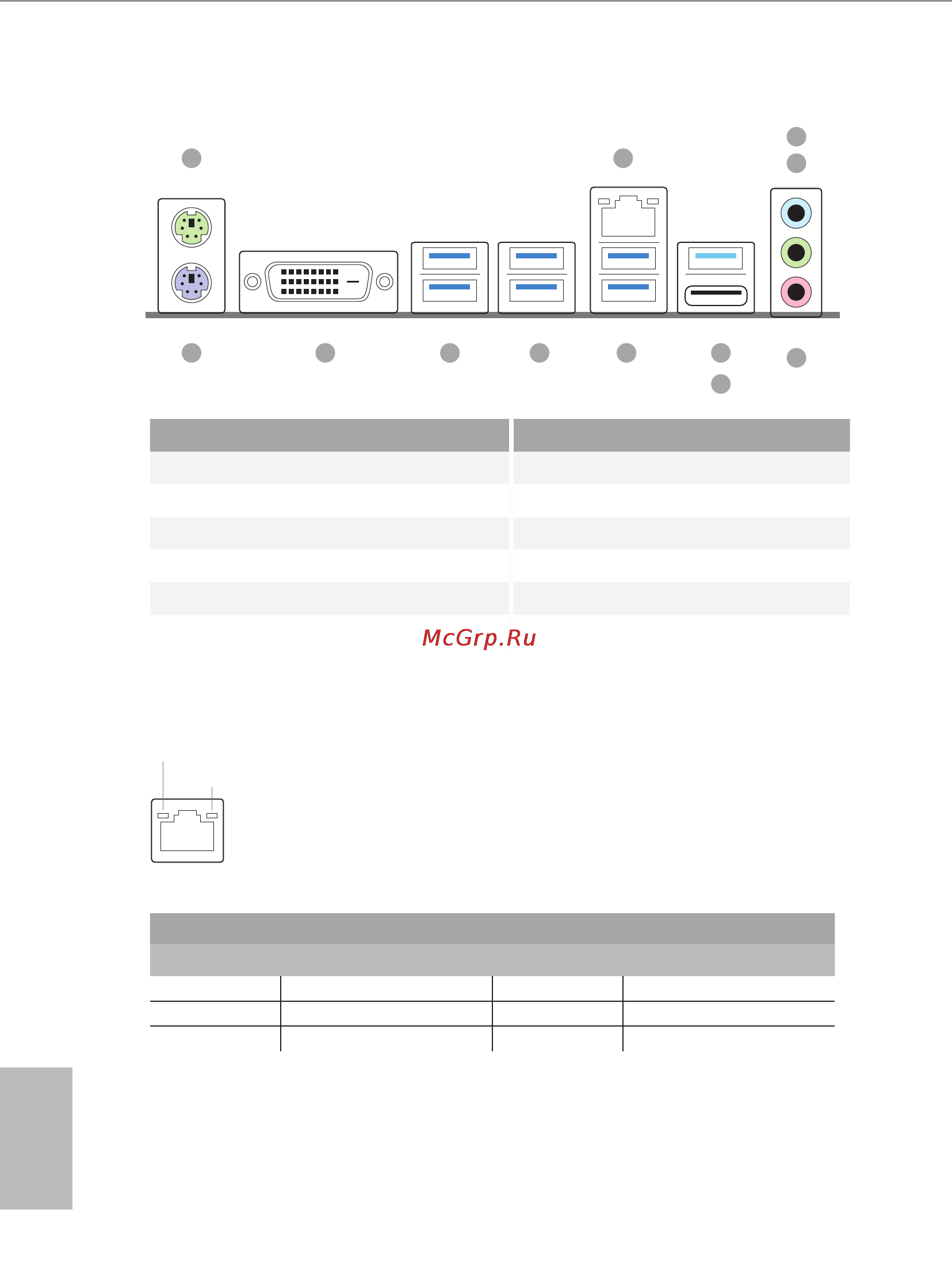

1.4 I/O Panel
No. Description No. Description
1 PS/2 Mouse Port 7 USB 3.1 Type-C Port (USB31_TC_1)
2 LAN RJ-45 Port* 8 USB 3.0 Ports (USB_01)
3 Line In (Light Blue) 9 USB 3.0 Ports (USB3_23)
4 Front Speaker (Lime)** 10 USB 3.0 Ports (USB3_01)
5 Microphone (Pink) 11 DVI-D Port
6 USB 3.1 Type-A Port (USB31_TA_1) 12 PS/2 Keyboard Port
* ere are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
1
12 6
7
891011
2
5
4
3
