22
For Windows
®
Vista
TM
/ Vista
TM
64-bit / 7 / 7 64-bit OS:

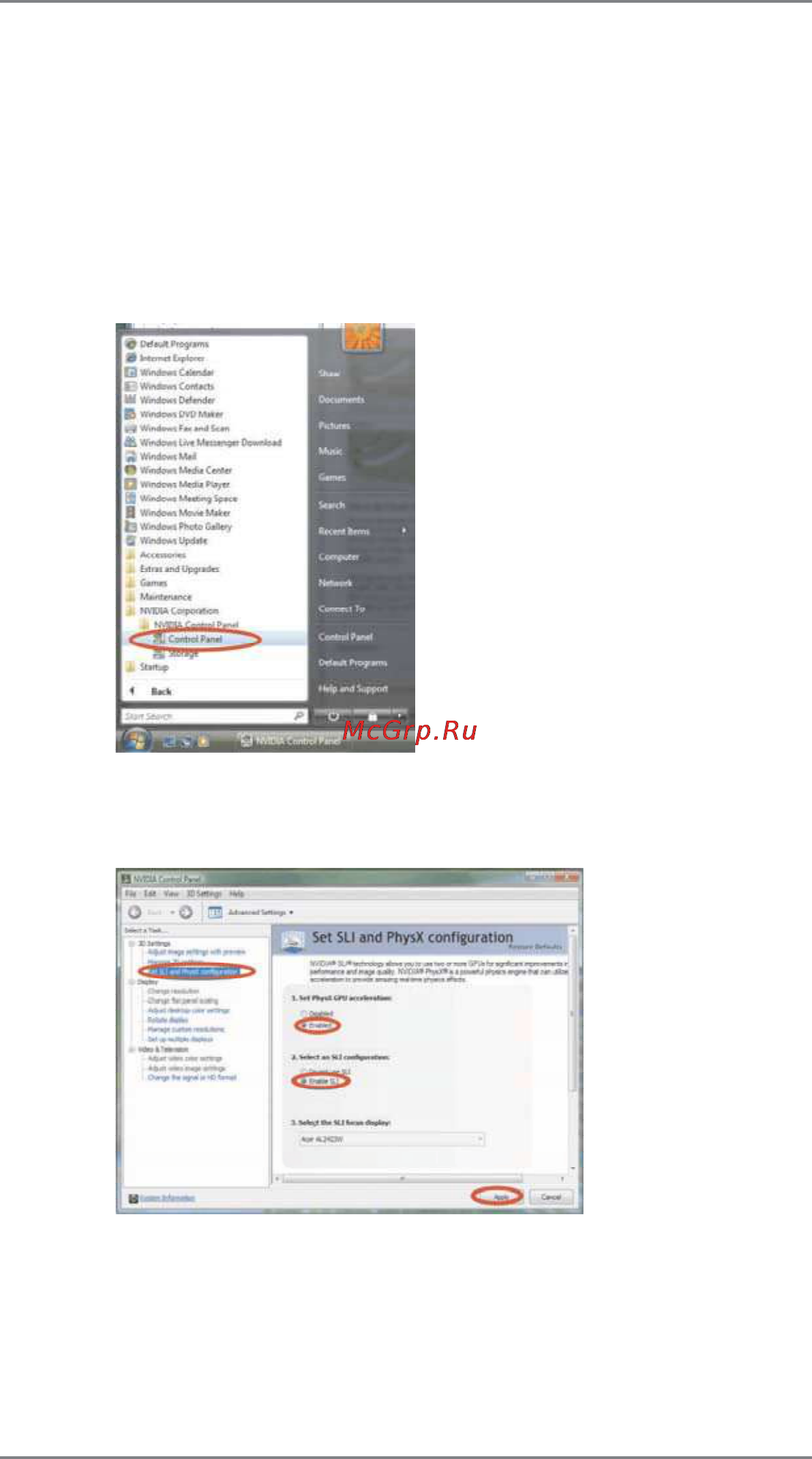

A. Click the Start icon on your Windows taskbar.
B. From the pop-up menu, select All Programs, and then click NVIDIA
Corporation.
C. Select NVIDIA Control Panel tab.
D. Select Control Panel tab.
F. Reboot your system.
G.You can freely enjoy the benef t of SLI
TM
feature.
* SLI
TM
appearing here is a registered trademark of NVIDIA
®
Technologies Inc., and is used
only for identif cation or explanation and to the owners’ benef t, without intent to infringe.
E. From the pop-up menu, select Set SLI and PhysX confi guration. In
Set PhysX GPU acceleration item, please select Enabled. In Select
an SLI confi guration item, please select Enable SLI. And click Apply.
