32

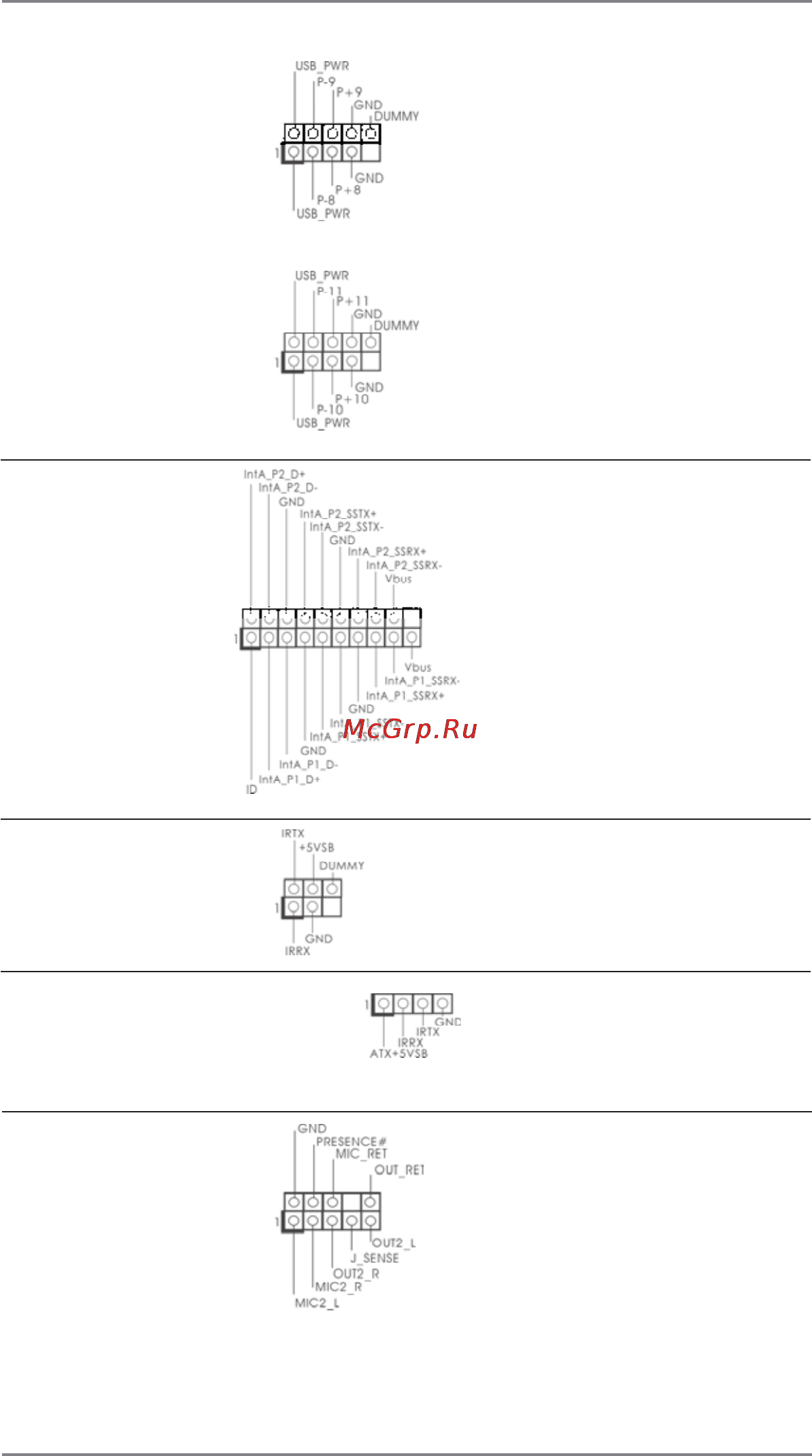

USB 3.0 Header Besides two default USB 3.0
(19-pin USB_12_13)
ports on the I/O panel, there is
(see p.12 No. 11)
one USB 3.0 header on this
motherboard. This USB 3.0
header can support two USB
3.0 ports.
Infrared Module Header This header supports an
(5-pin IR1)
optional wireless transmitting
(see p.12 No. 32)
and receiving infrared module.
Front Panel Audio Header This is an interface for the front
(9-pin HD_AUDIO1)
panel audio cable that allows
(see p.12 No. 42)
convenient connection and
control of audio devices.
(9-pin USB_8_9)
(see p.12 No. 29)
(9-pin USB_10_11)
(see p.12 No. 30)
Consumer Infrared Module Header This header can be used to
(4-pin CIR1)
connect the remote
(see p.12 No. 28)
controller receiver.
