ASUS Z87M-PLUS
1-9
Chapter 1
Recommended memory congurations
1.2.4 System memory
The motherboard comes with four Double Data Rate 3 (DDR3) Dual Inline Memory Modules
(DIMM) slots.
A DDR3 module is notched differently from a DDR or DDR2 module. DO NOT install a DDR
or DDR2 memory module to the DDR3 slot.

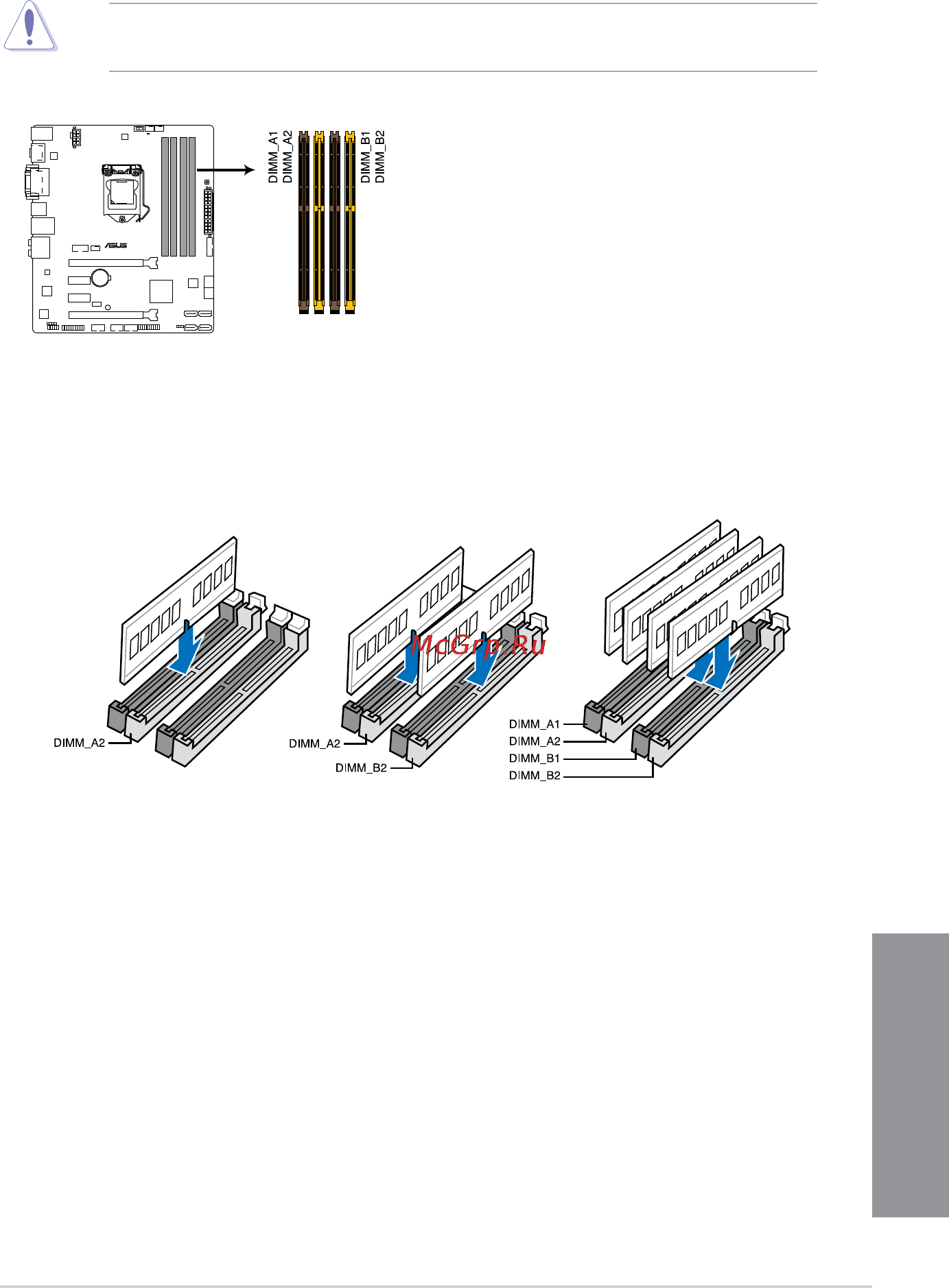

Z87M-PLUS
Z87M-PLUS 240-pin DDR3 DIMM sockets
