Asus z87m-plus [43/164] Basic installation
![Asus z87m-plus [43/164] Basic installation](/views2/1159681/page43/bg2b.png)
ASUS Z87M-PLUS
2-1
Chapter 2
Basic installation
2
2.1 Building your PC system
2.1.1 Motherboard installation
The diagrams in this section are for reference only. The motherboard layout may vary with
models, but the installation steps are the same for all models.

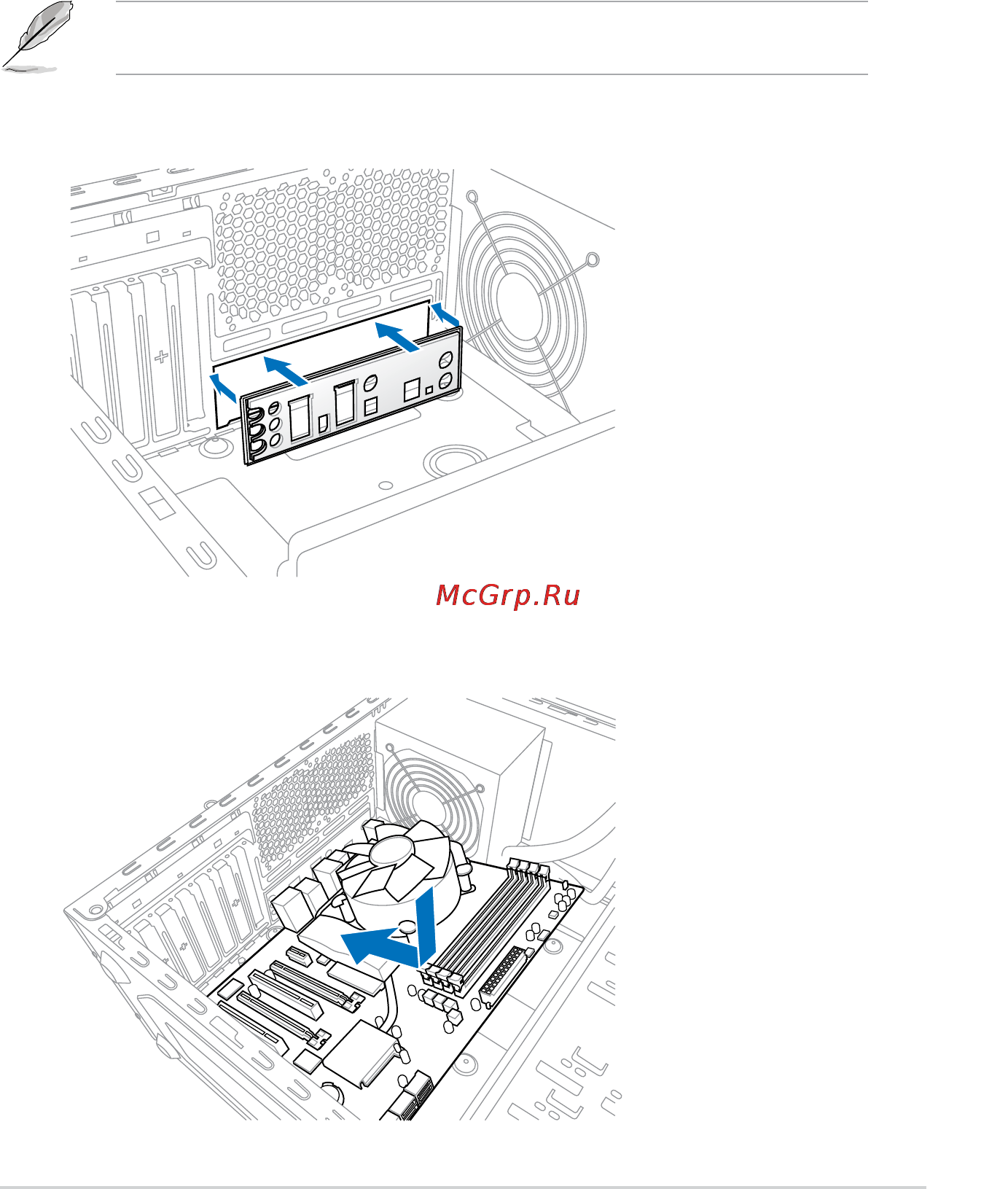

1. Install the ASUS I/O shield to the chassis rear I/O panel.
Chapter 2: Basic installation
2. Place the motherboard into the chassis, ensuring that its rear I/O ports are aligned to
the chassis’ rear I/O panel.
