![Asus h81m-k [10/48] H81m k](/img/pdf.png)
Asus h81m-k [10/48] H81m k
![Asus h81m-k [10/48] H81m k](/views2/1159861/page10/bga.png)
1-2
Chapter 1: Product introduction
H81M-K
Place this side towards
the rear of the chassis

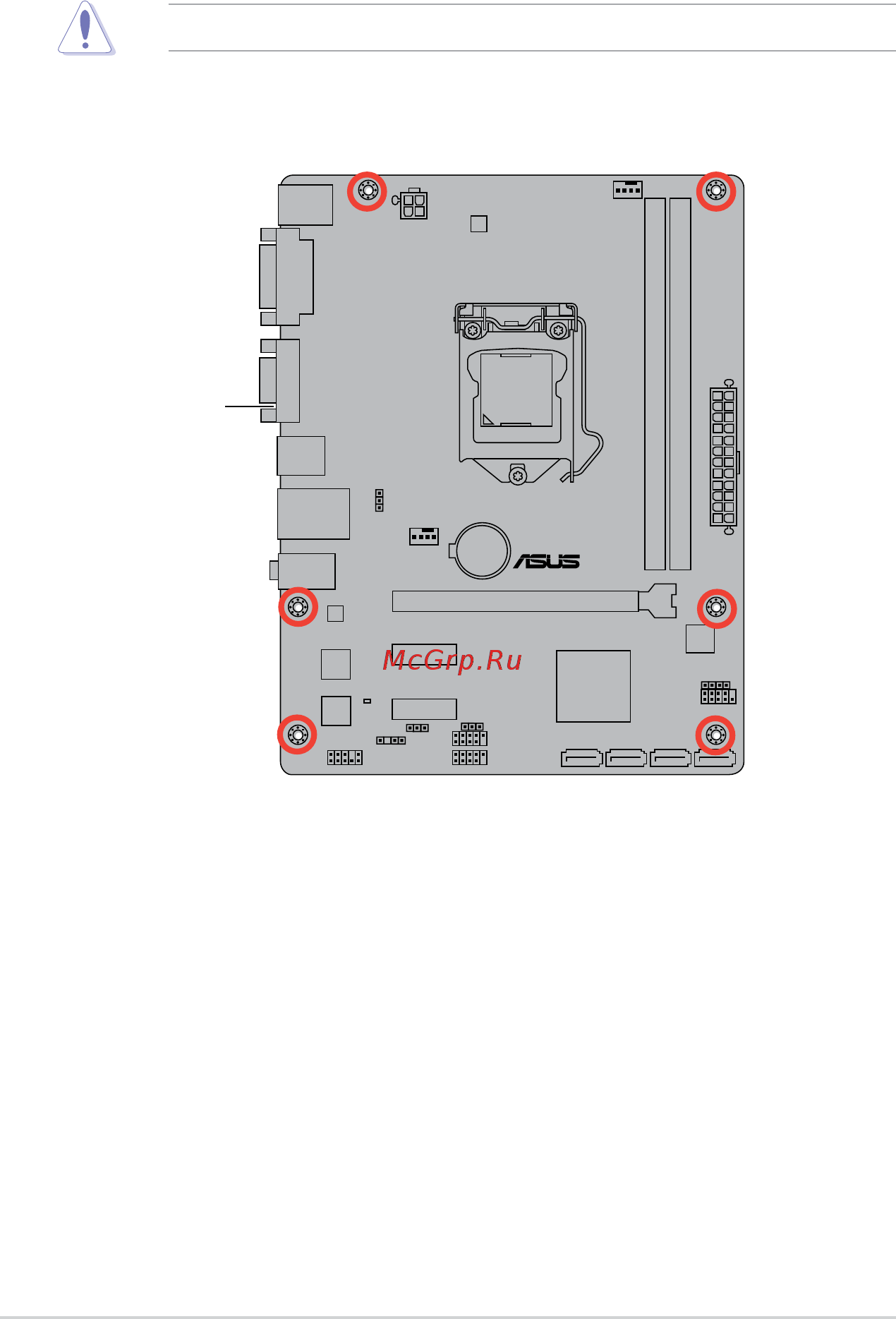

1.2.2 Screw holes
Place six screws into the holes indicated by circles to secure the motherboard to the chassis.
Do not overtighten the screws! Doing so can damage the motherboard.
