Asus x750ln, 90nb05n1-m01520 [73/114] Long standby time

Notebook PC E-Manual

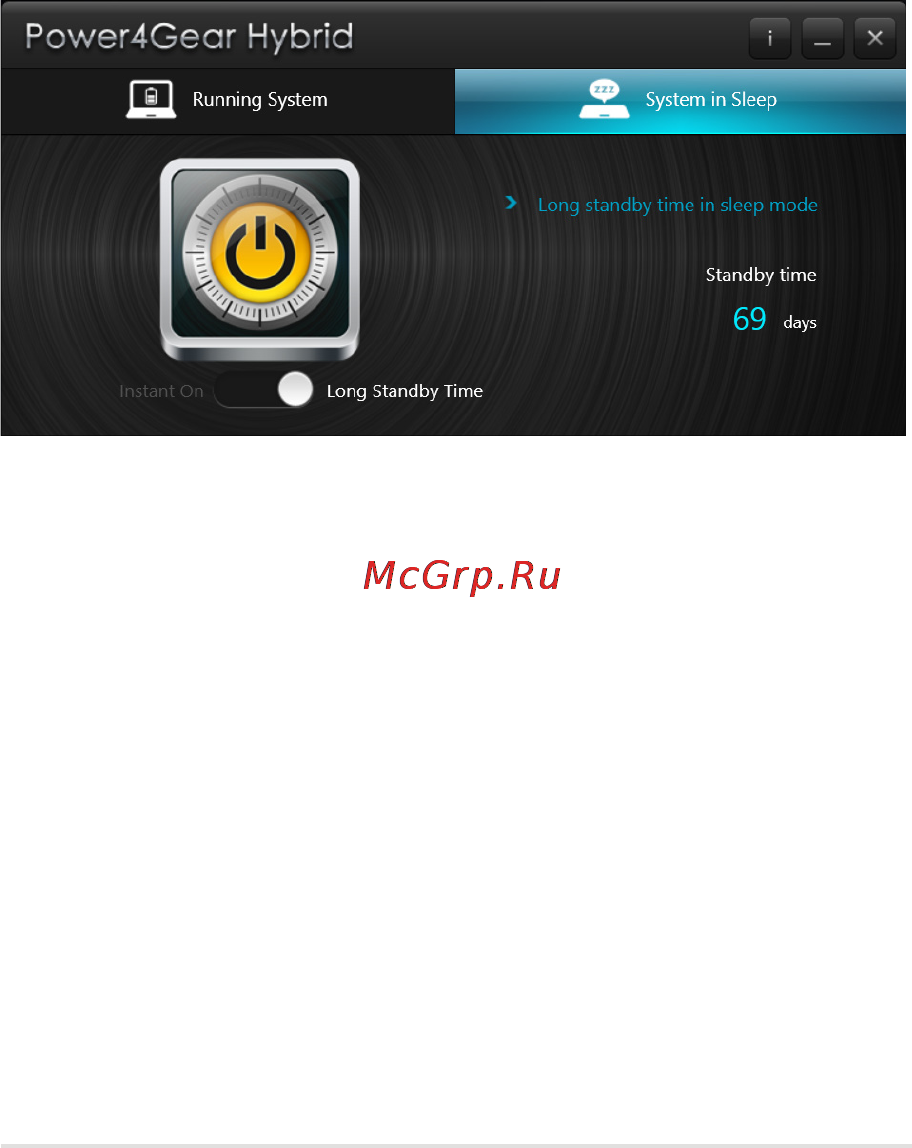

Long Standby Time

This mode allows your Notebook PC’s battery to last for up to sixty-nine

(69) days or more. When enabled, the Notebook PC returns to its last

working state in as fast as seven seconds, four hours after entering into

deep sleep mode.
