Chapter 1: Product introduction
B85M-K
Place this side towards
the rear of the chassis
1.2.2 Screw holes

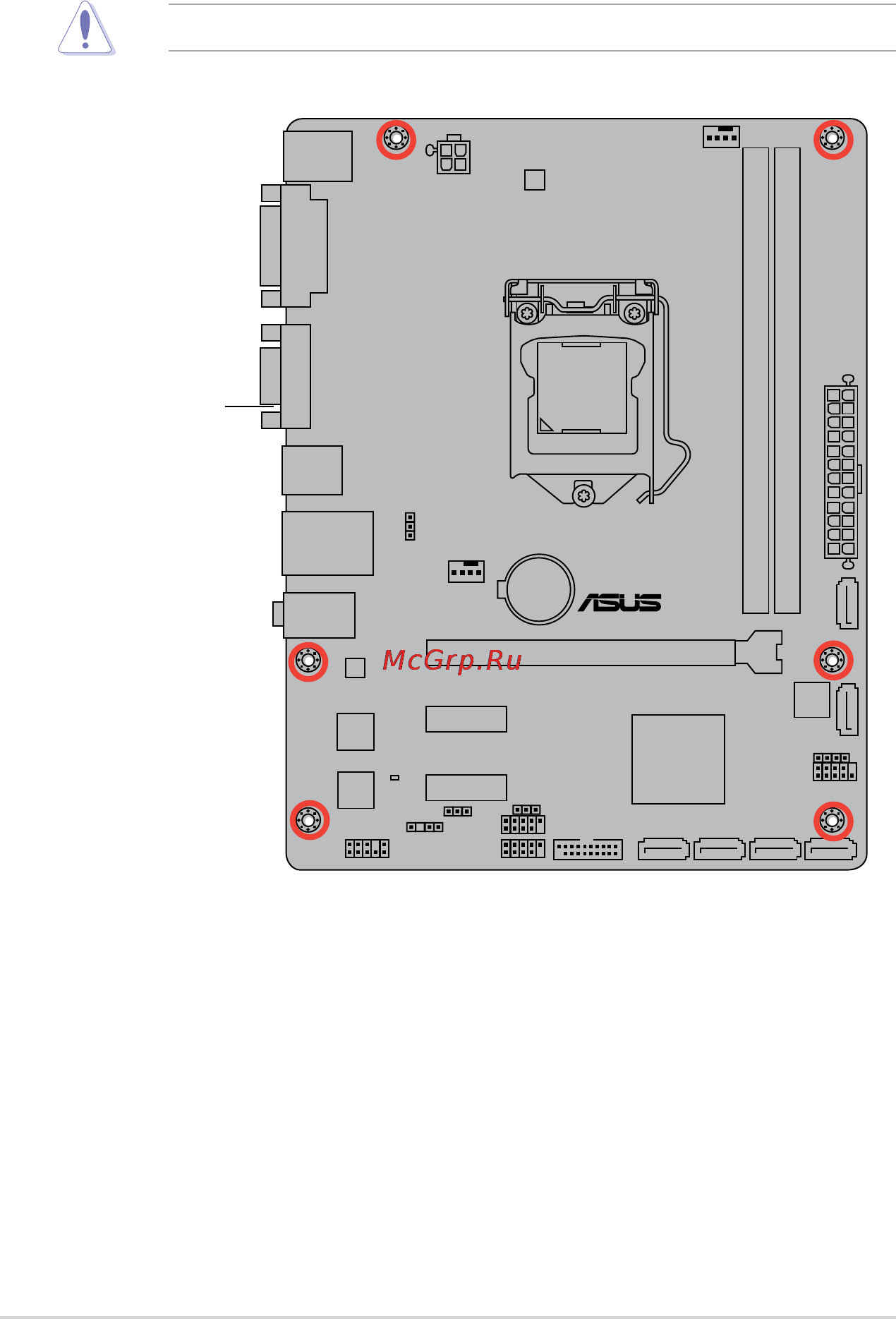

Place six screws into the holes indicated by circles to secure the motherboard to the chassis.
Do not overtighten the screws! Doing so can damage the motherboard.
