2-4
Chapter 2: Getting started
Updating the BIOS le
To update the BIOS le using BIOS Updater:
1. At the FreeDOS prompt, type
bupdater /pc /g and press <Enter>.

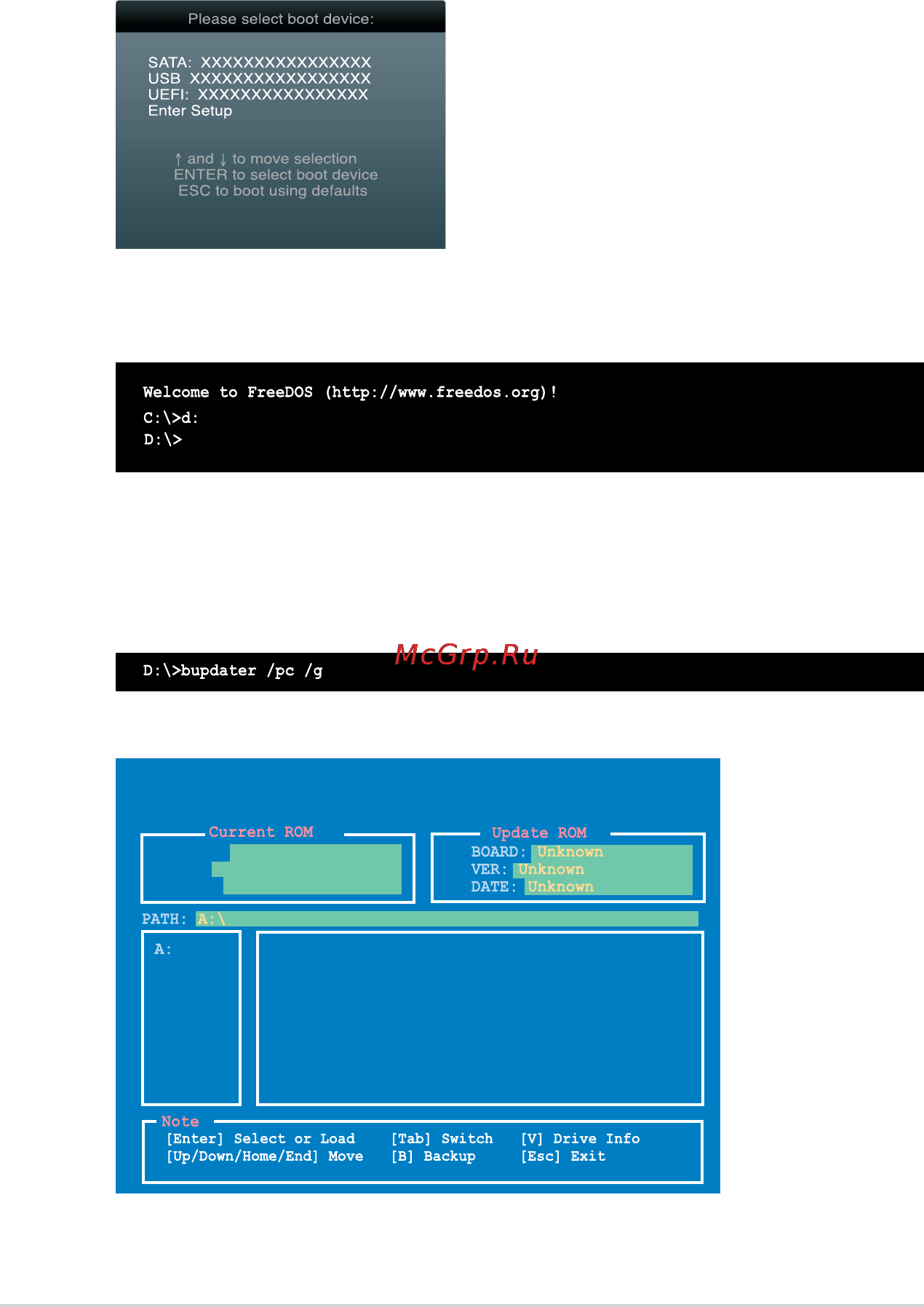

2. The BIOS Updater screen appears as below.
ASUSTek BIOS Updater for DOS V1.30
BOARD:
B85M-K
VER: 0301
DATE: 13/10/2013
B85MK.CAP 4194304 2013-13-07 17:30:48
Booting the system in DOS environment
1. Insert the USB ash drive with the latest BIOS le and BIOS Updater to the USB port.
2. Boot your computer. When the ASUS Logo appears, press <F8> to show the
BIOS
Boot Device Select Menu. Insert the support DVD into the optical drive and select the
optical drive as the boot device.
3. At the FreeDOS prompt, type d: and press <Enter> to switch the disk from Drive C
(optical drive) to Drive D (USB ash drive).
