1.3 Central Processing Unit (CPU)
The motherboard comes with a surface mount LGA1155 socket designed for the Intel
®
3rd /
2nd Generation Core™ i7, i5, i3, Pentium
®
, and Celeron
®
processors.

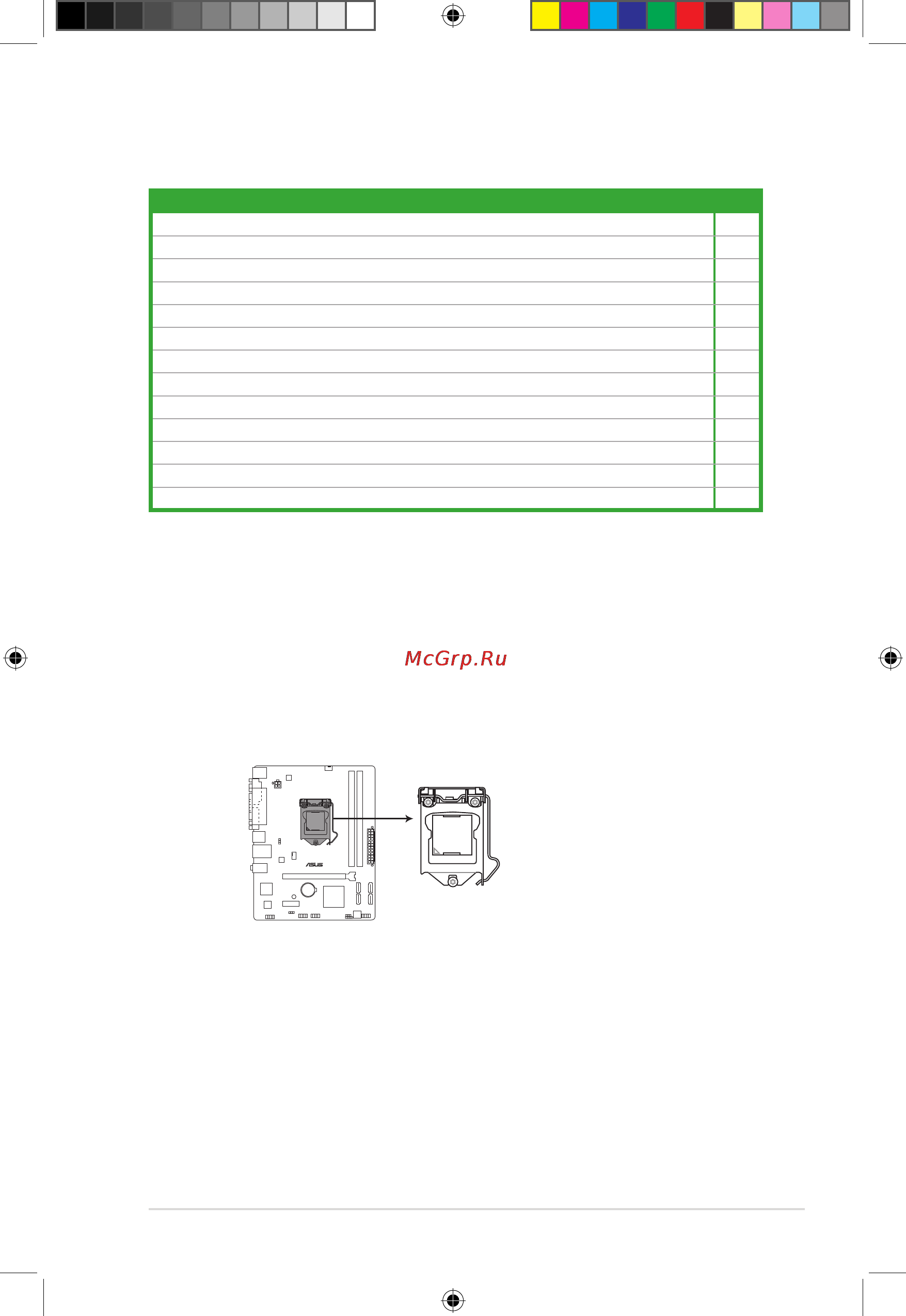

1.2.4 Layout contents
H61M-G
H61M-G CPU socket LGA1155
Connectors/Jumpers/Slots/LED Page
1. PS/2 and USB device wake-up (3-pin PS2_USBPW1~4) 1-12
2. ATX power connectors (24-pin EATXPWR, 4-pin ATX12V) 1-15
3. CPU and chassis fan connectors (4-pin CPU_FAN, 4-pin CHA_FAN) 1-17
4. Intel
®
LGA1155 CPU socket 1-3
5. DDR3 DIMM slots 1-7
6. Intel
®
H61 Serial ATA 3.0Gb/s connectors (7-pin SATA3G_1/2/3/4) 1-16
7. System panel connector (10-1 pin F_PANEL) 1-18
8. Speaker connector (4-pin SPEAKER) 1-15
9. Clear RTC RAM (3-pin CLRTC) 1-11
10. USB 2.0 connectors (10-1 pin USB56, USB78) 1-16
11. USB device wake-up (USBPW5~8) 1-12
12. Standby power LED (SB_PWR) 1-18
13. Front panel audio connector (10-1 pin AAFP) 1-14
ASUS H61M-G
1-3
E8188_H61M_G_manual.indb 3 2/12/14 2:57:01 PM
