GR6
19
Connecting a display panel
You can connect a display panel or projector to your GR6 that has
the following connectors:
• HDMIconnector
• DisplayPortconnector
To connect a display panel to your GR6:
Connect a display cable either to the HDMI or DisplayPort port.

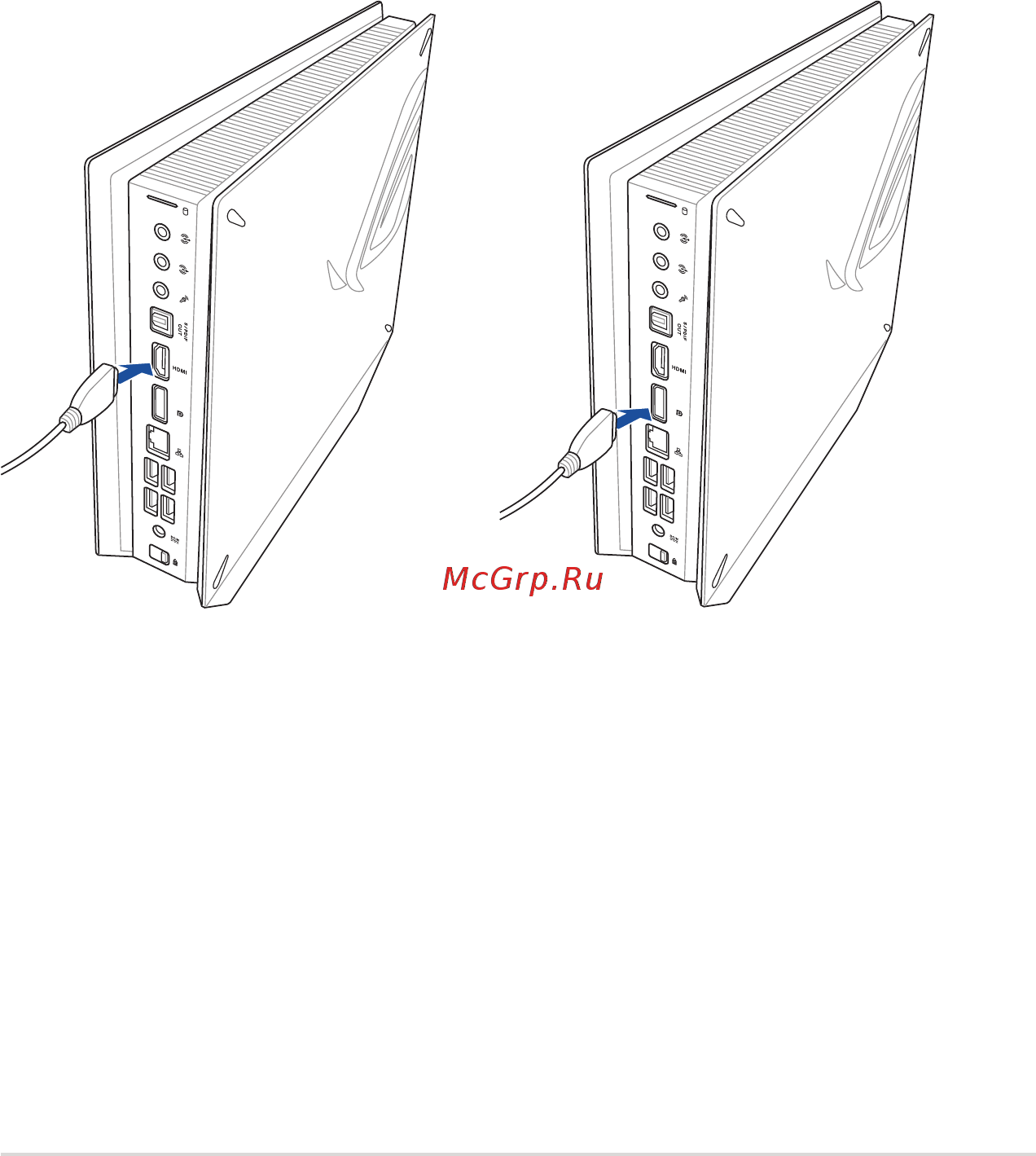

Connecting display via HDMI port
Connecting display via DisplayPort port
