8. Prepare the 2.5-inch HDD/SSD and the bundled set of four
screws.

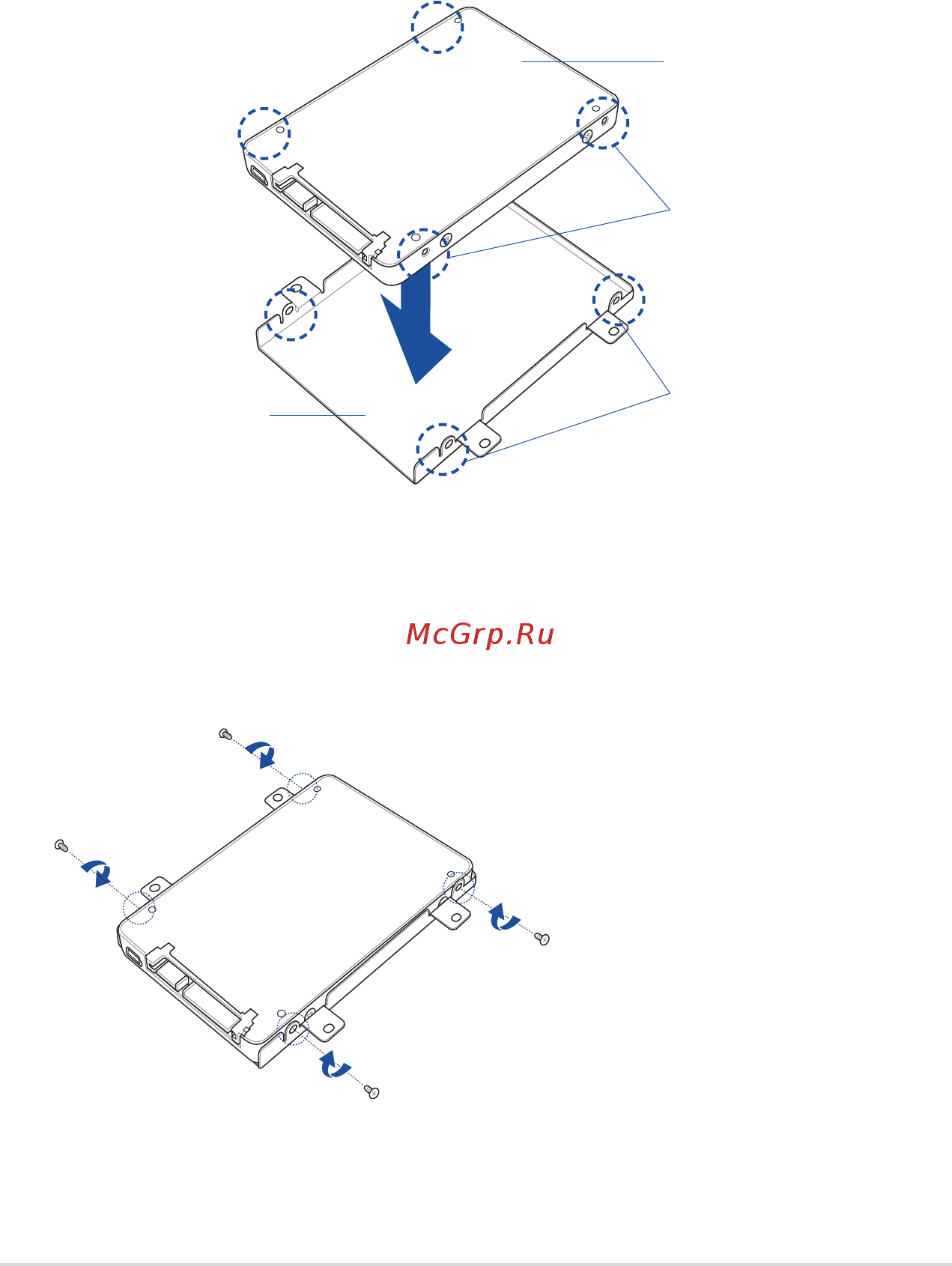

9. Turn the extension bay upside down and place the 2.5-inch
HDD/SSD into the extension bay as shown. Ensure that screw
holes on the 2.5-inch HDD/SSD match the screw holes on the
extension bay.
2.5-inch HDD/SSD
2.5-inch extension bay
HDD/SSD screw holes
extension bay screw holes
10. Secure the 2.5-inch HDD/SSD to the extension bay with the
bundled set of screws.
