7-12 Chapter 7: Driver installation

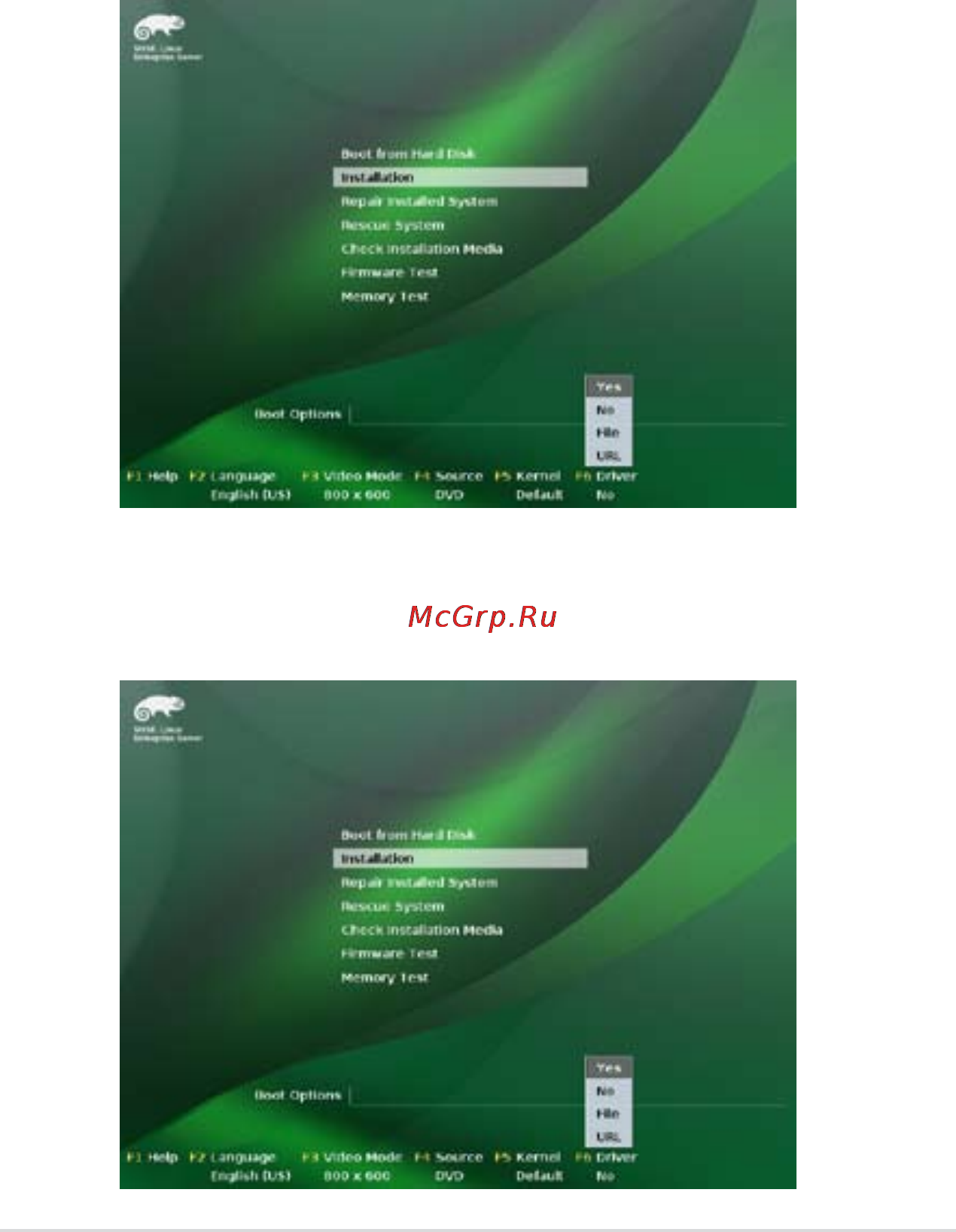

3. Press <F6>, then select Yes from the menu. Press <Enter>.
Installing SUSE 11 Linux OS
To install the LSI MegaRAID controller driver when installing SUSE Linux
Enterprise Server OS:
1. Boot the system from the SUSE OS installation CD.
2. Use the arrow keys to select
Installation from the Boot Options menu.
