2-21ASUS RS920-E7/RS8; RS926-E7/RS8

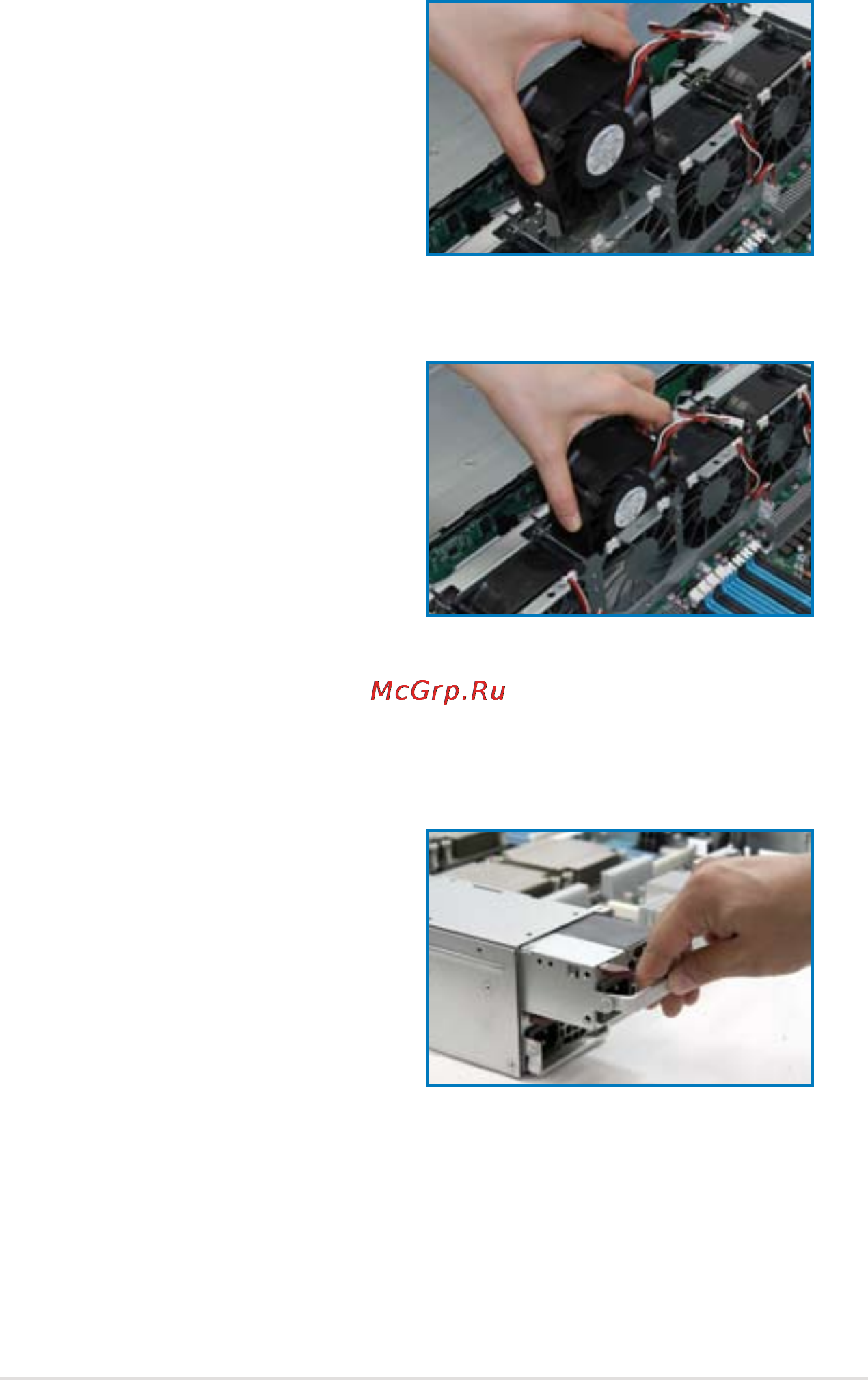

3. Lift the fan, and then set aside.
4. Repeat steps 1 to 3 to uninstall the
other system fans.
To reinstall the system fans
1. Insert the fan into the fan cage.
The airow directional arrow on the
fan side should point towards the
system rear panel.
2. Insert the system fan cable into
the cable holder, then connect the
cable to the fan connector on the
motherboard.
2.8.2 Redundant power supply units
To remove the power supply unit (PSU)
1. Lift up the PSU lever.
