ASUS RS920-E7/RS8; RS926-E7/RS8 1-7

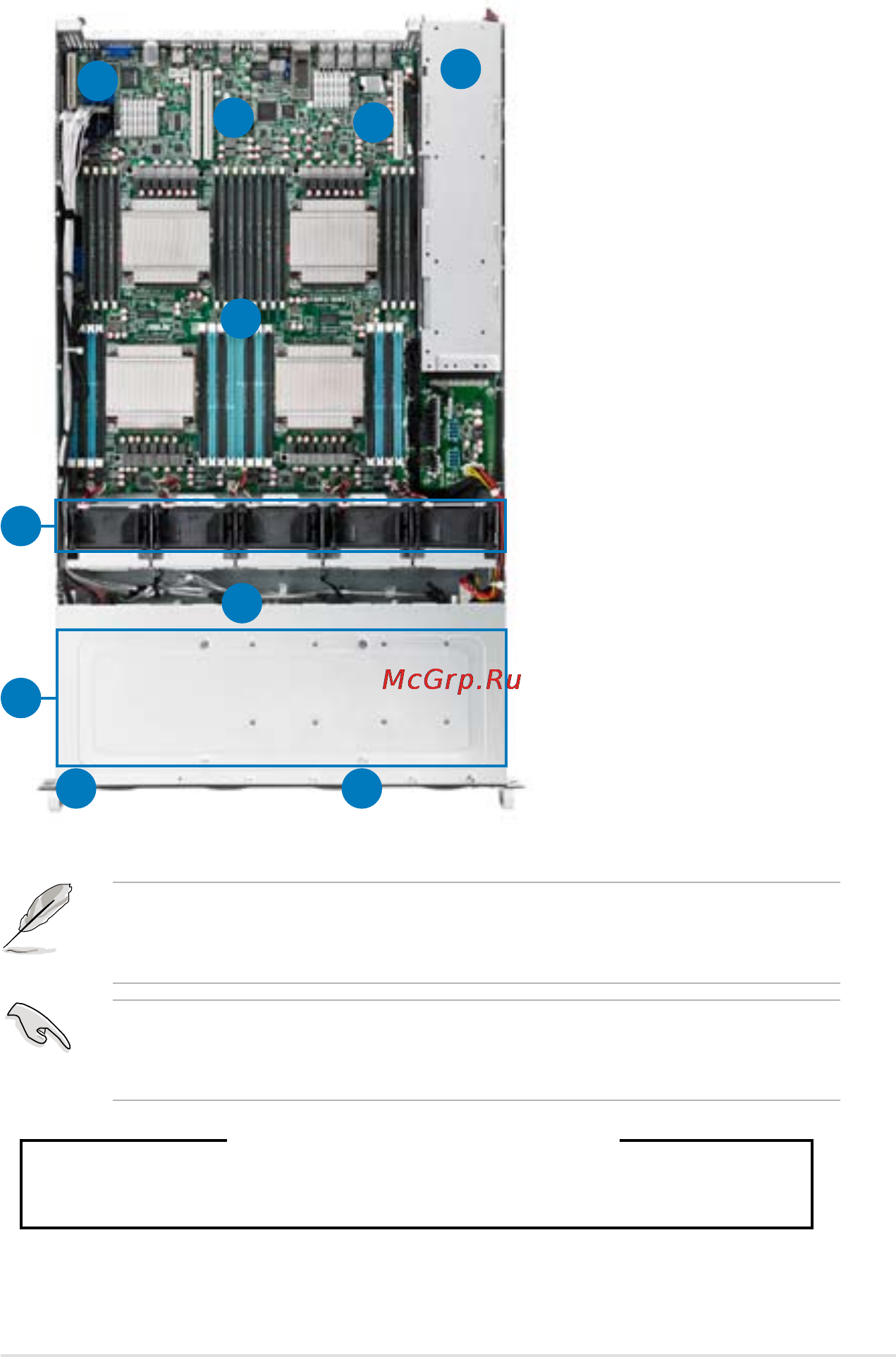

1.6 Internal features
The barebone server includes the basic components as shown.
The barebone server does not include a oppy disk drive. Connect a USB oppy
disk drive to any of the USB ports on the front or rear panel if you need to use a
oppy disk.
*WARNING
HAZARDOUS MOVING PARTS
KEEP FINGERS AND OTHER BODY PARTS AWAY
1. Redundant Power
supply and power fan
(hidden)
2. ASUS Z9PX-Q32
Server Board
3. System fans
4. SATA/SAS backplane
(hidden)
5. Hot-swap HDD tray
1–8 (SAS and SATA)
6. Slim-type optical drive
bay
7. Front I/O board
(hidden)
8. PCI-E Expansion
Boards (hidden)
A protection lm is pre-attached to the front cover before shipping. Please
remove the protection lm before turning on the system for proper heat
dissipation.
3
1
2
4
5
6 7
8
8
8
