Asus b85m-g plus/usb 3.1 [12/77] Motherboard layout
![Asus b85m-g plus/usb 3.1 [12/77] Motherboard layout](/views2/1162351/page12/bgc.png)
1-2
Chapter 1: Product introduction
B85M-G PLUS/USB3.1
Place this side
towards the rear
of the chassis

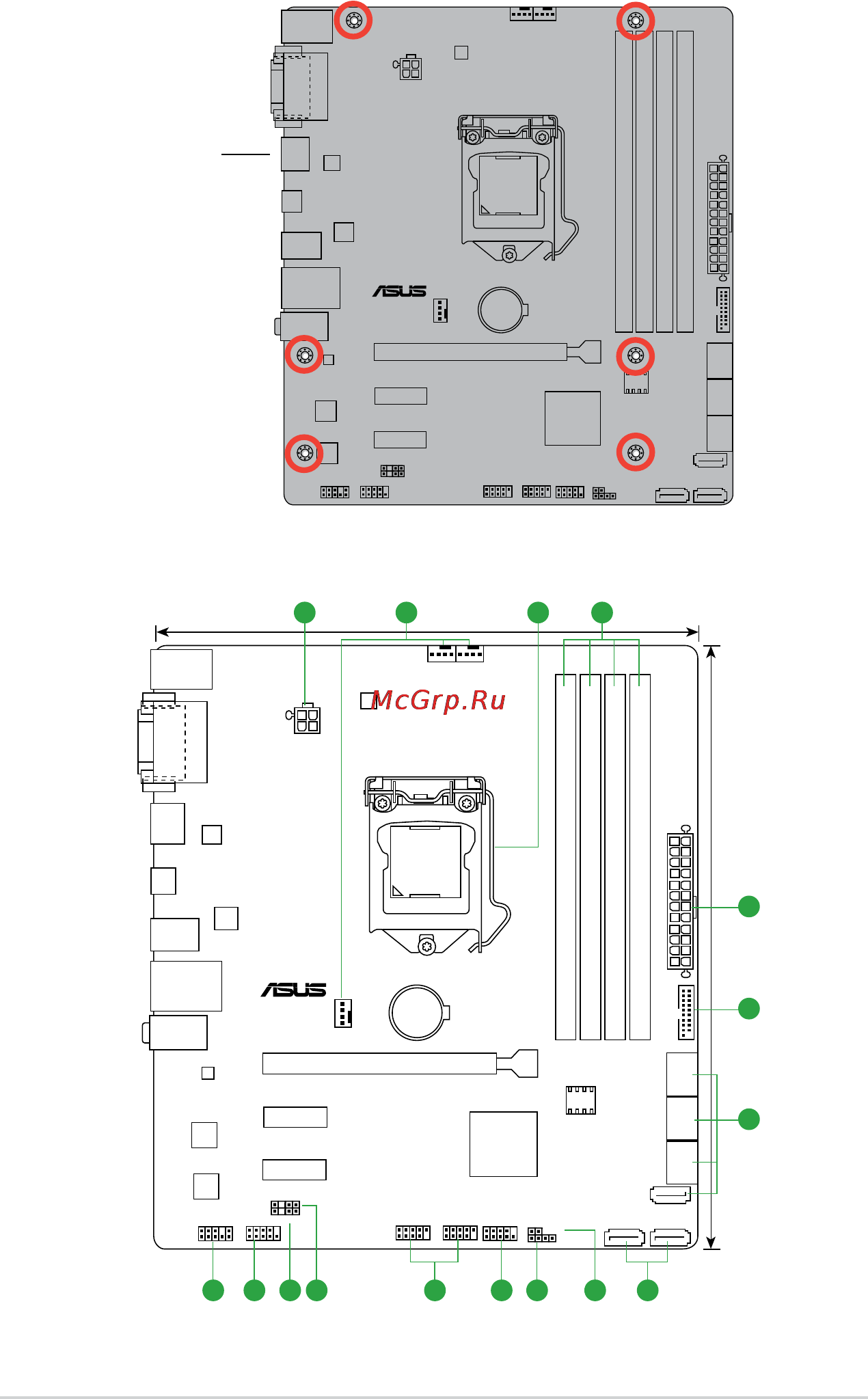

1.2.3 Motherboard layout
B85M-G PLUS/USB3.1
PCIEX16
PCIEX1_1
PCIEX1_2
F_PANEL
CLRTC
SPEAKER
SPDIF_OUT
USB1112 USB1314
USB3_12
AAFP
COM
ATX12V
EATXPWR
CHA_FAN2 CPU_FAN
CHA_FAN1
BATTERY
Super
I/O
ALC
887
Realtek
8111GR
ASM
1142
ASM
1442K
DIGI
+VRM
23.4cm(9.2in)
LGA1150
Intel
®
B85
DDR3 DIMM_A1 (64bit, 240-pin module)
DDR3 DIMM_A2 (64bit, 240-pin module)
DDR3 DIMM_B1 (64bit, 240-pin module)
DDR3 DIMM_B2 (64bit, 240-pin module)
SATA3G_2SATA3G_1
SATA6G_4
SATA6G_1SATA6G_2SATA6G_3
AUDIO
KBMS_USB34
LAN_USB3_56
HDMI
USB3.1_EC1
USB3.1_EA1
21.1cm(8.3in)
64Mb
BIOS
CHASSIS
DVI
VGA
2 31 4
1
9 8
6
5
71013 121415 11
