ASUS MAXIMUS VIII HERO

3-29

Chapter 3

PEG Port Configuration

Allows you to congure the PEG Port settings.

PCIEX16/X8_1

PCIEX16/X8_1 Link Speed [Auto]

Allows you to select the operating speed of the PCIEX16/X8_1 speed.

Conguration options:

[Auto] The system will automatically select the PCIEX16/X8_1 slot speed.

[Gen1] The PCIEX16/X8_1 slot will run at PCI-E 1.0 speed.

[Gen2] The PCIEX16/X8_1 slot will run at PCI-E 2.0 speed.

[Gen3] The PCIEX16/X8_1 slot will run at PCI-E 3.0 speed.

PCIEX8_2

PCIEX8_2 Link Speed [Auto]

Allows you to select the operating speed of the PCIEX8_2 speed.

Conguration options:

[Auto] The system will automatically select the PCIEX16/X8_1 slot speed.

[Gen1] The PCIEX8_2 slot will run at PCI-E 1.0 speed.

[Gen2] The PCIEX8_2 slot will run at PCI-E 2.0 speed.

[Gen3] The PCIEX8_2 slot will run at PCI-E 3.0 speed.

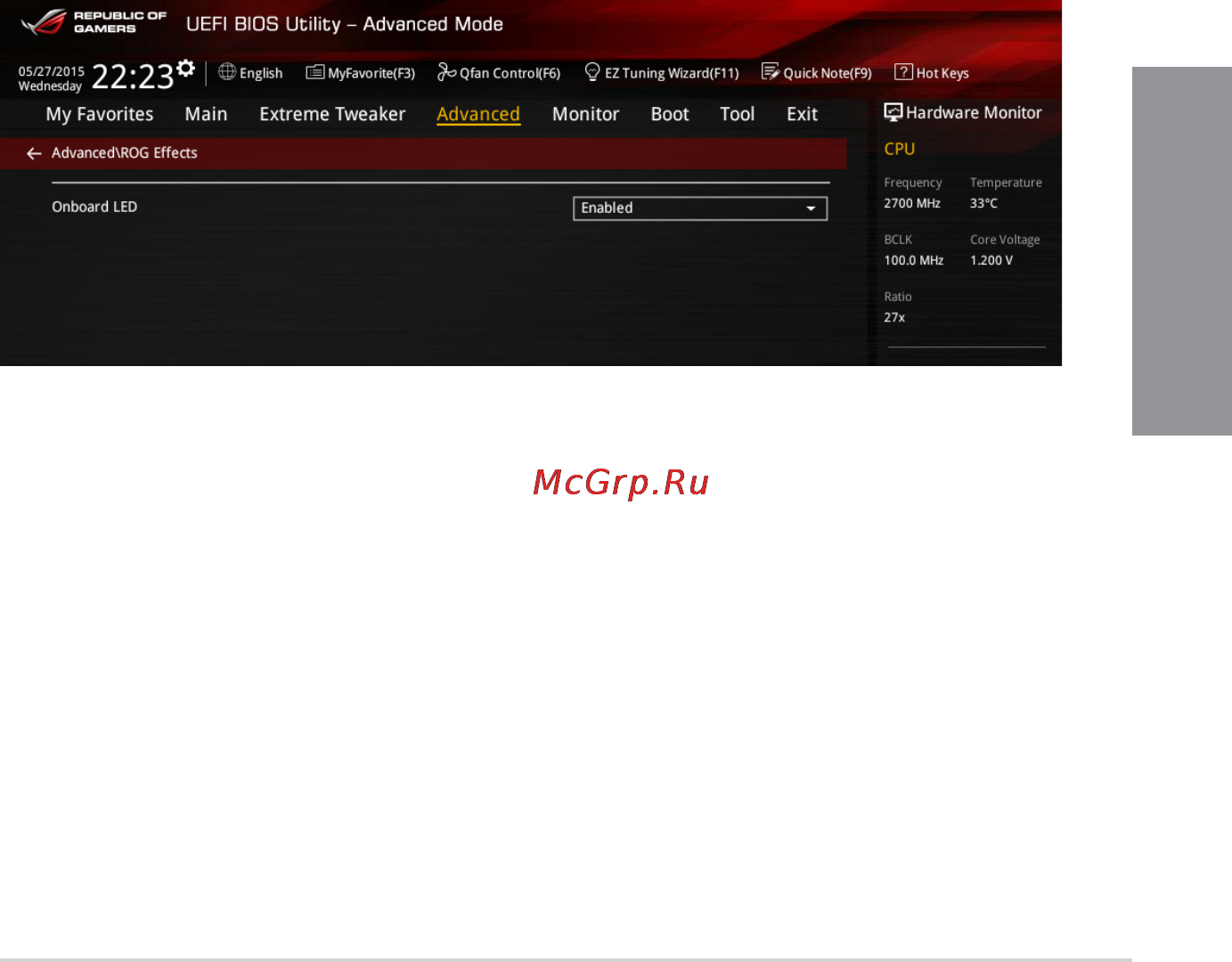

3.6.4 ROG Effects

Onboard LED [Enabled]

This item allows you to enable all the onboard LEDs.

Conguration options: [Enabled] [Disabled]

SupremeFX (ROG Audio) LED [Enabled]

This item allows you to enable ROG Audio LED.

Conguration options: [Enabled] [Disabled]

PCH (Logo) LED [Enabled]

[Enabled] LEDs will always light up at the S0(Working), S3(Sleep), and S5(Soft off)

states, but not light up at the S5 state when the “ErP Ready” is enabled.

[Disabled] LEDs will not light up.
