ASUS H170-PLUS D3
1-21
9. Intel
®

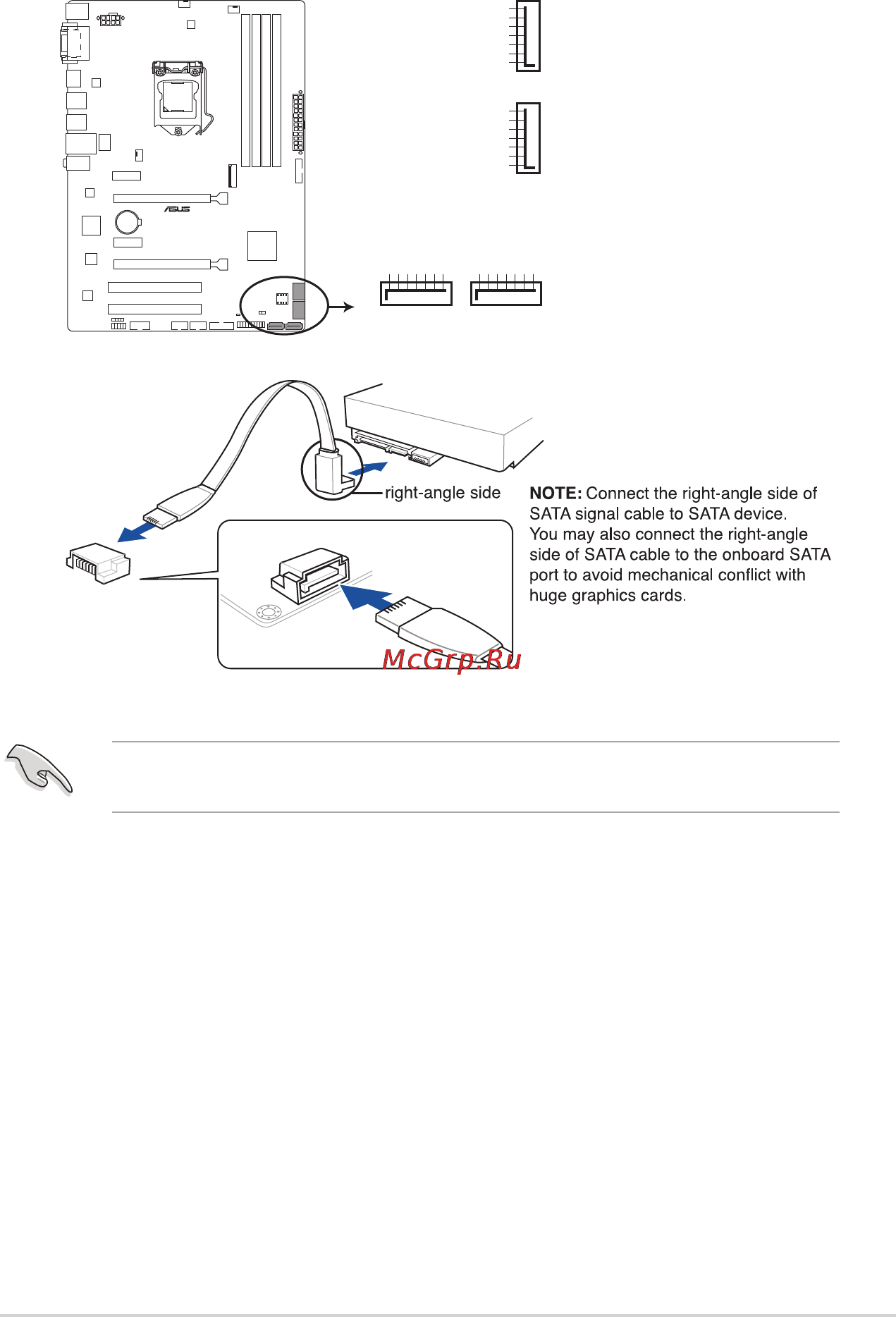

H170 Serial ATA 6.0Gb/s connectors (7-pin SATA6G_3~6)
TheseconnectorsconnecttoSerialATA6.0Gb/sharddiskdrivesviaSerialATA6.0
Gb/s signal cables.
Whenusinghot-plugandNCQ,settheSATA Mode SelectionitemintheBIOSto[AHCI].
Seesection2.6.5 SATA Configuration for details.
SATA6G_4
SATA6G_6
GND
RSATA_TXP2
RSATA_TXN2
GND
RSATA_RXN2
RSATA_RXP2
GND
GND
RSATA_TXP4
RSATA_TXN4
GND
RSATA_RXN4
RSATA_RXP4
GND
SATA6G_5
GND
RSATA_TXP3
RSATA_TXN3
GND
RSATA_RXN3
RSATA_RXP3
GND
SATA6G_3
GND
RSATA_TXP1
RSATA_TXN1
GND
RSATA_RXN1
RSATA_RXP1
GND
H170-PLUS D3
H170-PLUS D3 Intel
®
SATA 6.0Gb/s connectors
