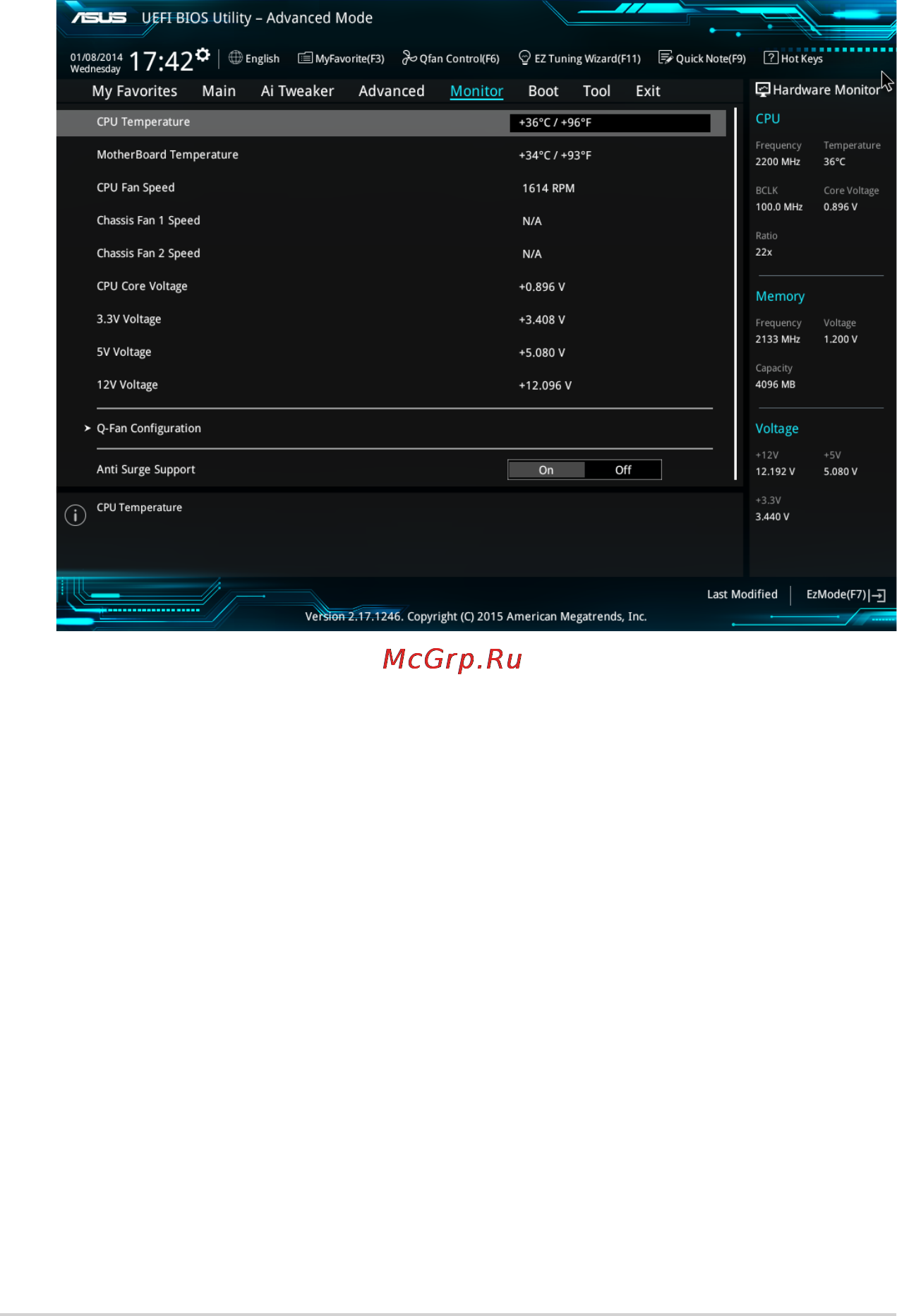

2.7 Monitor menu
TheMonitormenudisplaysthesystemtemperature/powerstatus,andallowsyoutochange
thefansettings.
ScrolldowntodisplaytheotherBIOSitems.
2.7.1 CPU/ MB Temperature [xxxºC/xxxºF]/ [Ignore]
TheonboardhardwaremonitorautomaticallydetectsanddisplaystheCPUandmotherboard
temperatures.Select[Ignore]ifyoudonotwishtodisplaythedetectedtemperatures.
2.7.2 CPU Fan/ Chassis Fan 1/2 Speed [xxxx RPM]/ [Ignore]/
[N/A]
TheonboardhardwaremonitorautomaticallydetectsanddisplaystheCPUandchassisfan
1/2speedsinrotationsperminute(RPM).Ifthefanisnotconnectedtothemotherboard,the
eldshowsN/A.Select[Ignore]ifyoudonotwishtodisplaythedetectedspeed.
2.7.3 CPU Input Voltage (VCCIN), CPU Core Voltage, 3.3V
Voltage, 5V Voltage, 12V Voltage
Theonboardhardwaremonitorautomaticallydetectsthevoltageoutputthroughtheonboard
voltageregulators.Select[Ignore]ifyoudonotwanttodetectthisitem.
2‑38 Chapter 2: Getting started
