Asus 970 pro gaming/aura [27/76] Internal connectors
![Asus 970 pro gaming/aura [27/76] Internal connectors](/views2/1163218/page27/bg1b.png)
ASUS 970 PRO GAMING/AURA
1-19
1.7.2 Internal connectors
•
Forafullyconguredsystem,werecommendthatyouuseapowersupplyunit
(PSU)thatcomplieswithATX12Vspecication2.4(orlaterversion)andprovidesa
minimumpowerof350W
• WerecommendthatyouuseaPSUwithhigherpoweroutputwhenconguringa
systemwithmorepower-consumingdevicesorwhenyouintendtoinstalladditional
devices.Thesystemmaybecomeunstableormaynotbootupifthepoweris
inadequate.

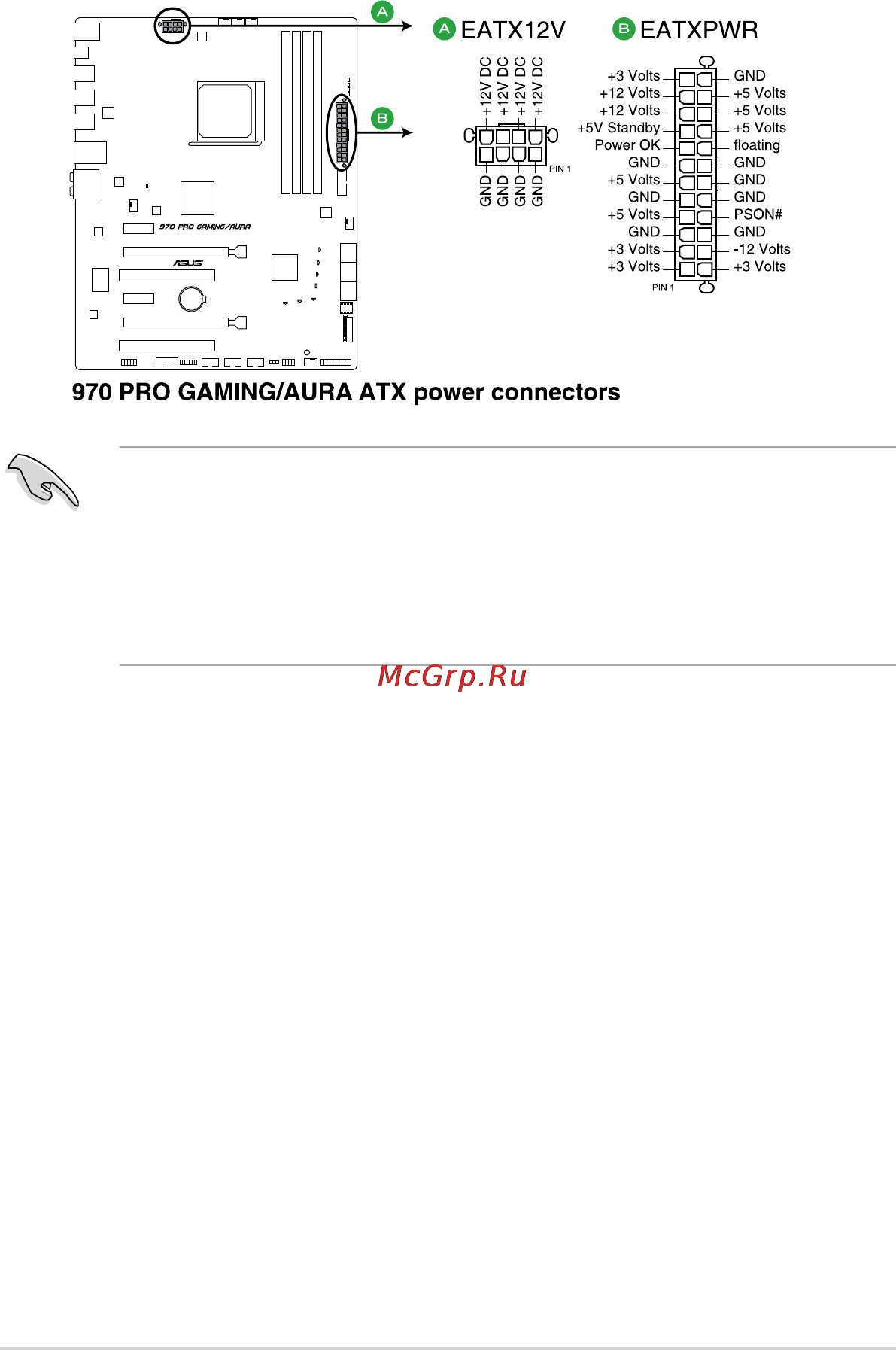

1. ATX power connectors (24-pin EATXPWR, 8-pin EATX12V)
TheseconnectorsareforATXpowersupplyplugs.Thepowersupplyplugsare
designedtottheseconnectorsinonlyoneorientation.Findtheproperorientationand
pushdownrmlyuntiltheconnectorscompletelyt.
