Инструкция по эксплуатации Страница: 2

Netis AD-1102 [2/2] Hardware installation

Содержание

Похожие устройства

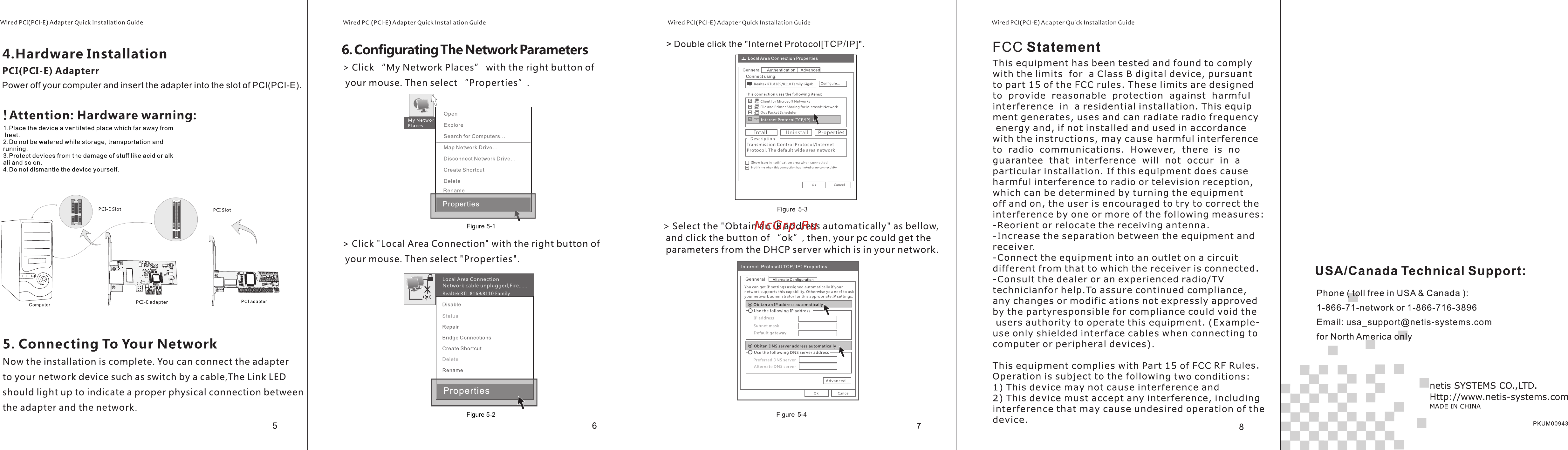

Wired PCI PCI E Adapter Quick Installation Guide Wired PCI PCI E Adapter Quick Installation Guide 4 Hardware Installation 6 Configurating The Network Parameters PCI PCI E Adapterr Click My Network Places with the right button of Poweroffyour computer and insert the adapter into the slot of PCI PCI E your mouse Then select Properties Wired PCI PCI E Adapter Quick Installation Guide Wired PCi PCI E AdapterQuick Installation Guide Double click the Internet Protocol TCP IP FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to part 15 ofthe FCC rules These limits are designed to provide reasonable protection against harmful interference in a residential installation This equip ment generates uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions may cause harmful interference to radio communications However there is no guarantee that interference will not occur in a particular installation If this equipment does cause harmful interference to radio or television reception which can be determined by turning the equipment off and on the user is encouraged to try to correct the interference by one or more ofthe following measures Reorient or relocate the receiving antenna Increase the separation between the equipment and receiver Connect the equipment into an outlet on a circuit different from that to which the receiver is connected Consult the dealer or an experienced radio TV technicianfor help To assure continued compliance any changes or modific ations not expressly approved by the partyresponsible for compliance could void the users authority to operate this equipment Example use only shielded interface cables when connecting to computer or peripheral devices Attention Hardware warning 1 Place the device a ventilated place which far away from heat 2 Do not be watered while storage transportation and running 3 Protect devices from the damage of stuff like acid or alk ali and so on 4 Do not dismantle the device yourself Search for Computers Map Network Drive Disconnect Network Drive Create Shortcut Delete Rename Properties PCI Slot Figure 5 1 Click Local Area Connection with the right button of Figure 5 3 Select the Obtain an IP address automatically as bellow and click the button of ok then your pc could get the parameters from the DHCP server which is in your network your mouse Then select Properties 5 Connecting To Your Network Now the installation is complete Youcanconnectthe adapter to your network device such as switch by a cable The Link LED should light up to indicate a proper physical connect ion between the adapter and the network Figure 5 2 5 Figure 5 4 7 This equipment complies with Part 15 of FCC RF Rules Operation is subject to the following two conditions 1 This device may not cause interference and 2 This device must accept any interference including interference that may cause undesired operation of the device USA Canada Technical Support Phone toll free in USA Canada 1 866 71 network or 1 866 716 3896 Email usa_support netis systems com for North America only netis SYSTEMS CO LTD Http www netis systems com MADE IN CHINA PKUMQ0943
