300Mbps Wireless-N Broadband Router User Manual
50

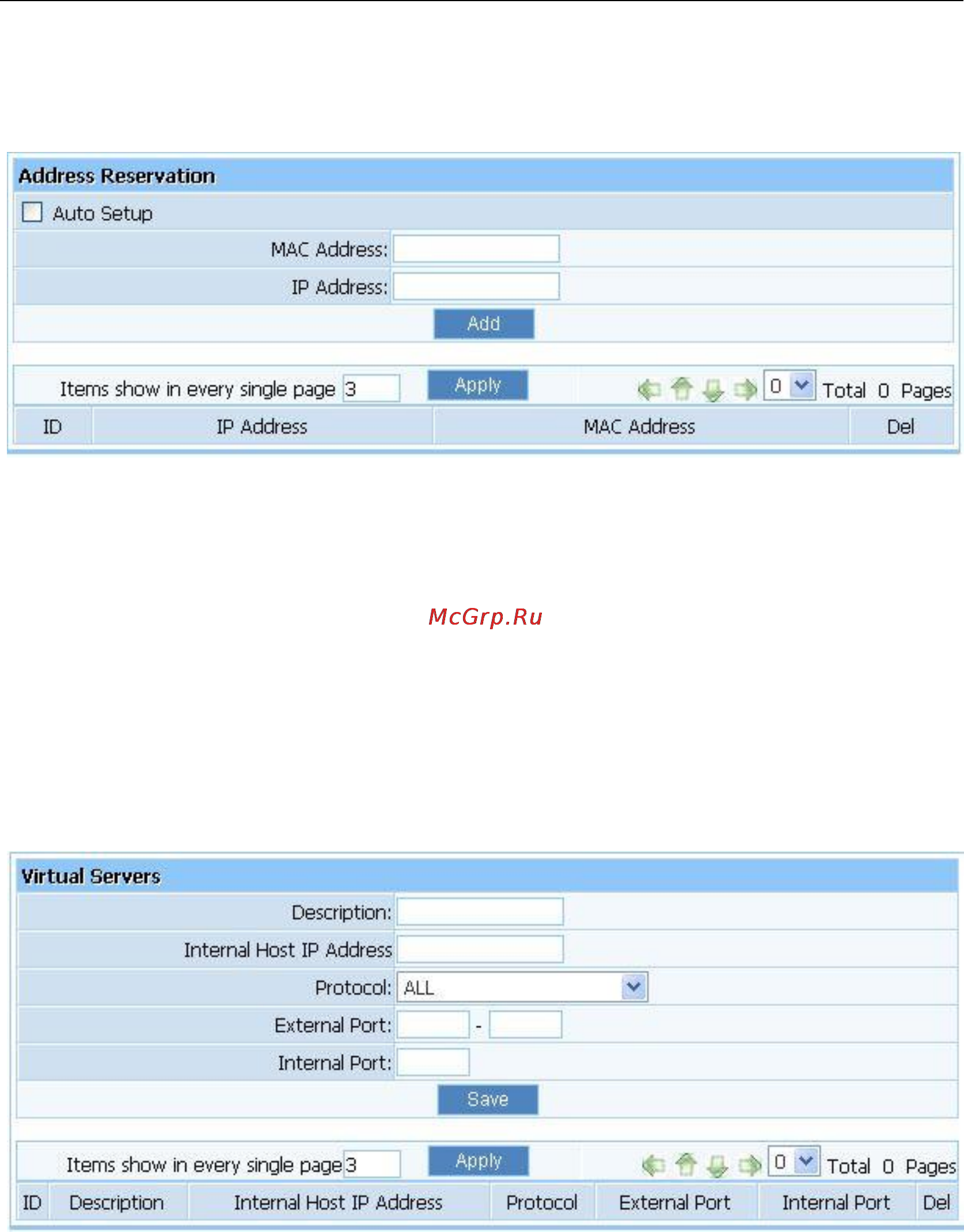

4.6.3. Address Reservation
Figure 4-41
Address Reservation: reserve IP address for designed physical address host. If you want
to configure a fixed IP address for some host, please input physical address and IP
address, then click add.
4.7. Forwarding
4.7.1. Virtual Servers
Figure 4-42
Description: Describe current virtual server item.
Internal Host IP Address: The “Internal Host IP Address” indicates IP address of the
internal host using virtual server.
Protocol: The protocol item supplies several protocols. For example, if you have web
server within LAN, you can select the HTTP template then the router will input port
number 80 automatically.
External Port: Input an extranet port number (the users in Internet can see these ports).
Internal Port: Input an intranet port number.
