300Mbps Wireless-N Broadband Router User Manual
8
2. Hardware Installation
2.1. System Requirement
Minimum Requirements:
Broadband (DSL/Cable) modem and service with Ethernet port
802.11n b/g/n wireless adapter or Ethernet adapter and cable for each computer
Internet Explorer® 5.0, Firefox® 2.0 or Safari® 1.4 or higher
2.2. Panel
Front panel

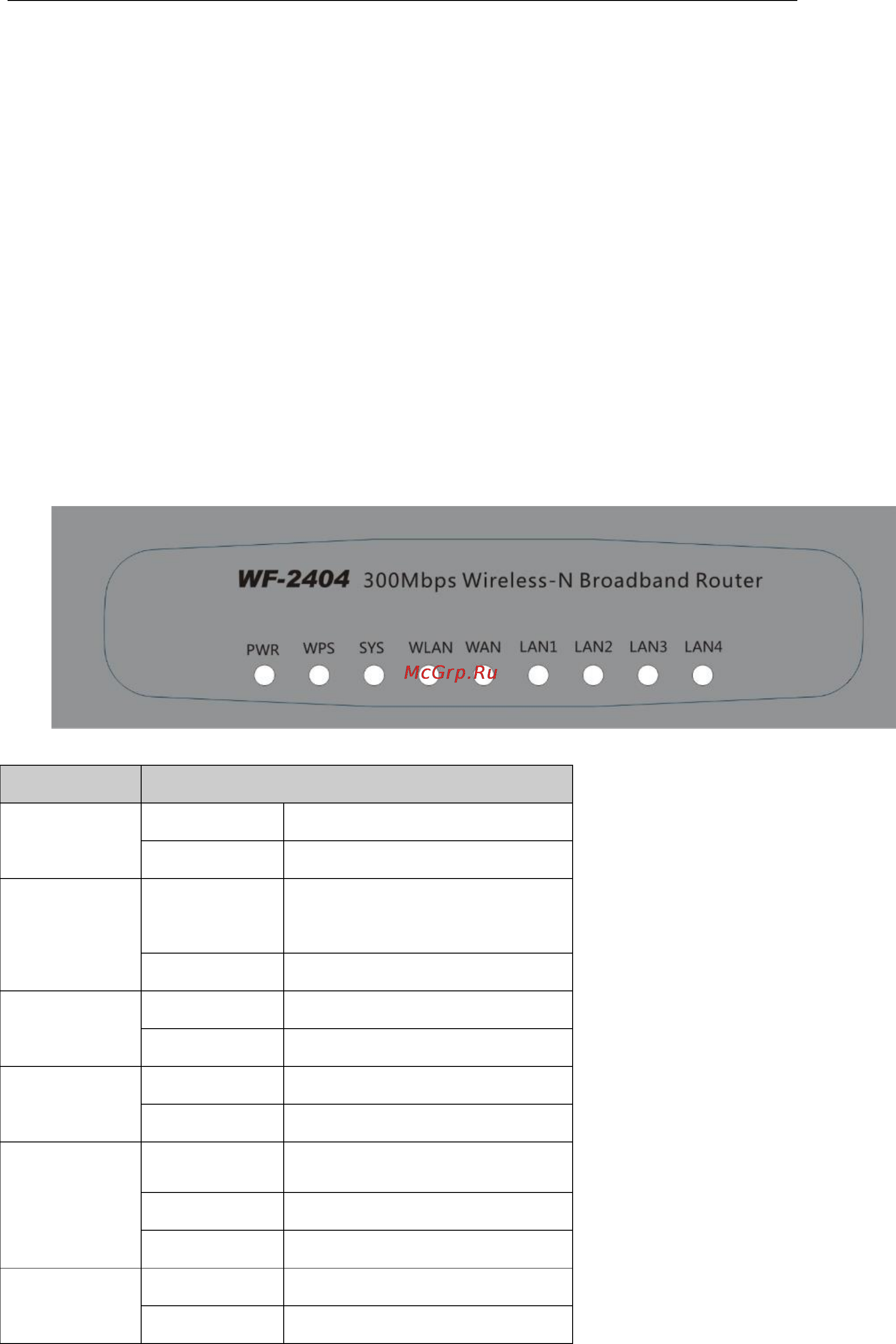

Figure 2-1
LED
Function
PWR
ON
Power on
Off
Power off
WPS
Flashing
slowly
WPS is running
OFF
WPS is not running
SYS
ON and Off
Abnormal
Flashing
Normal
WLAN
Flashing
Wireless data transmitting
Off
Wireless off
WAN
On
WAN Connection normal
Flashing
Data transmitting
Off
WAN Connection abnormal
LAN
On
LAN Connection normal
Flashing
Data transmitting
