Cells Per Unit 6
Voltage Per Unit 12
Capacity 21W @ 15min-rate to 1.67V per cell @25
(77 )
Weight Approx.
1.80 kg(3.97 lbs)
Maximum Discharge Current 60A/90A(5sec)
Internal Resistance Approx. 25 m
Operating Temperature Range
Nominal Operating Temperature Range 25
3 (77 5 )
Float Charging Voltage 13.5 to 13.8 VDC/unit Average at 25
(77 )
Recommended Maximum Charging 2.1A
Current Limit
Equalization and Cycle Service 14.4 to 15.0 VDC/unit Average at 25
(77 )
Self Discharge CSB Batteries can be stored for more than 6 months at
25
(77 ). Please charge batteries before using. For
higher temperatures the time interval will be shorter.
Terminal F1/F2-Faston Tab187/250
Container Material ABS(UL 94-HB) & Flammability resistance of
(UL 94-V0) can be available upon request.
Discharge: -15 ~50 ( 5 ~122 )
Charge: -15
~40 ( 5 ~104 )
Storage: -15
~40 ( 5 ~104 )
Constant Power Discharge Characteristics
Unit:W
(25
,77
)
Constant Current Discharge Characteristics
Unit:A
(25
,77
)

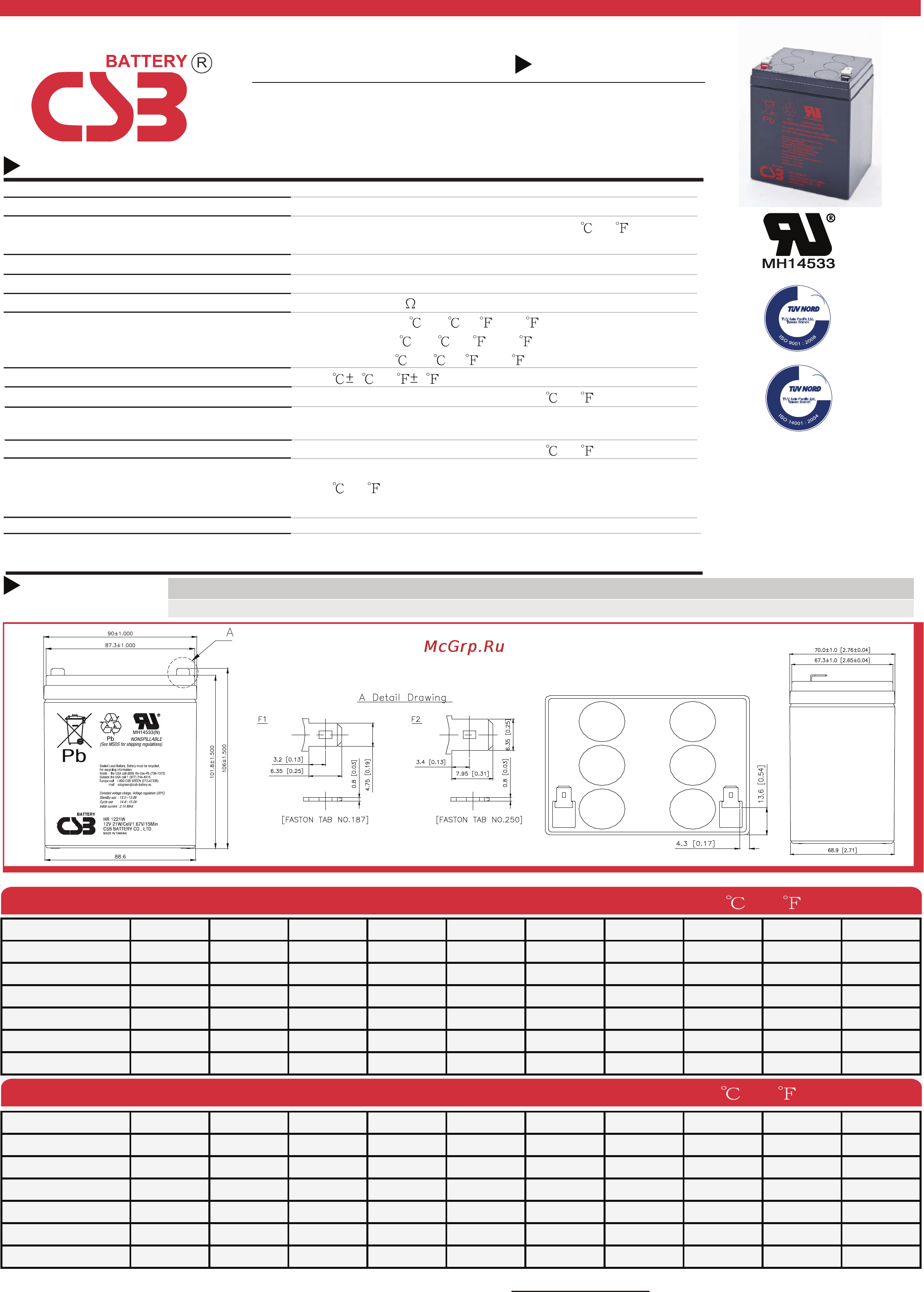

HR 1221W
12V 21W
Specification
Powered by
HR 1221W is specially designed for high efficient
discharge application. Its characteristics are high energy
density, small footprint and high discharge efficiency. It can
be used for more than 260 cycles at 100% discharge in cycle
service, up to 5 years in standby service.
Width (W)
Dimensions :
Unit: mm (inch)
Overall Height (H) Container height (h) Length (L)
106.0±1.5 (4.17±0.06) 101.8±1.5 (4.01±0.06) 90.0±1.0 (3.54±0.04) 70.0±1.0 (2.76±0.04)
F.V/Time 2MIN 4MIN 6MIN 8MIN 10MIN 15MIN 20MIN 30MIN 60MIN 90MIN
1.60V
46.4 31.2 24.4 20.3 17.4 12.9 10.4 7.29 4.02 2.83
1.67V
43.1 29.7 23.6 19.9 17.1 12.5 10.1 7.18 4.00 2.71
1.70V
41.3 28.9 23.2 19.7 16.8 12.3 9.93 7.14 3.99 2.65
1.75V
37.4 27.4 22.2 19.0 16.3 12.1 9.70 7.07 3.98 2.56
1.80V
33.1 25.2 21.0 18.2 15.7 11.8 9.51 7.00 3.96 2.46
1.85V
28.6 22.8 19.2 16.9 14.8 11.5 9.29 6.92 3.95 2.36
F.V/Time 2MIN 4MIN 6MIN 8MIN 10MIN 15MIN 20MIN 30MIN 60MIN 90MIN
1.60V
557 374 293 244 209 154 123 87.5 48.2 33.9
1.67V
515 357 284 238 203 150 120 86.6 48.1 32.5
1.70V
495 348 279 234 200 149 119 86.2 48.0 31.9
1.75V
451 329 266 226 194 145 116 85.8 47.9 30.7
1.80V
397 302 250 216 188 141 113 85.4 47.8 29.5
1.85V
343 275 237 208 181 138 111 85.3 47.7 28.3
by TUV CERT according to ISO 9001,ISO 14001.
The system of manufacturer was certified
(http://www.csb-battery.com)
RA1406
Ratings presented herein are subject to revision without notice. Please refer to www.csb-battery.com to confirm the latest version.
TUV Asia Pacific Ltd.
Taiwan Branch
TUV Asia Pacific Ltd.
Taiwan Branch
CSB-manufactured VRLA
(Absorbent Glass Mat type)
batteries are UL-recognized
components under UL1989.
CSB is also certified by
ISO 9001 and ISO 14001.
