Data sheet: UPS-LGR-0087/GB Update: 03/11/2014
2. TECHNICAL FEATURES (continued)
03/11/2014
2/2
Output with Mains (AC-AC)
Nominal Voltage 220V, 230V, 240V mono phase + neutral + PE
Nominal Power 3.000 VA
Active Power 2.400 W
Voltage variation (static) ± 1%
THDv on nominal power (linear load) < 1,5%
Frequency 50 Hz or 60 Hz (selectable)
Frequency tolerance ± 0,2% Synchronized with bypass frequency
Current Crest Factor 2,5:1 accordingly to IEC 62040-3
Overload capability:
* 2min
* 30sec"
120% load rate with no bypass transfer
150% load rate with no bypass transfer
Output with Mains (DC-AC)
Nominal Voltage 220V, 230V, 240V mono phase + neutral + PE
Nominal Power 3.000 VA
Active Power 2.400 W
Voltage variation (static) ± 1%
THDv on nominal power (linear load) < 1,5%
Frequency 50 Hz or 60 Hz (selectable)
Frequency tolerance ± 0,01% free run
Current Crest Factor 2,5:1 accordingly to IEC 62040-3
Overload capability:
* 2min
* 30sec"
120% load rate
150% load rate
Battery features
Type Lead Acid, sealed, maintenance free VRLA
Internal Battery Capacity ¹ 12 Ah (12V)
Nominal UPS Battery Voltage 72 Volt DC
Max. number of possible internal battery 18pcs
Standard Charging Current 2,7 A
Additional Charger
Yes, Optional - External, mountable on battery
cabinet
Additional Charger Capacity 4A
Environmental Specifications
Noise level @ 1m < 52dBA
Operating temperature range from 0°C to +40°C
Stock temperature range from -20°C to +50°C
Humidity range 20-95% not condensing
Protection degree IP31
Manufacturing Specifications
Net Weight without batteries ² 30 kg
Net Weight with Int. Transformer 62 kg
Dimensions (WxHxD) 275 x 716 x 776 mm
Colour RAL 7016
Communication Interface
1 serial port RS232, 1 USB, 1 smart slot (for
optional internal SNMP), 1 EPO, 1 GENSET
Input/Output connections 1P + N + PE
Input/Output Circuit Breaker 20A / 20A
1
When used with internal transformer, batteries must be used in separate cabinet
General Features
UPS Topology On line double conversion
Architecture of the UPS Stand alone, transformerless
In/Out phase Configuration Mono phase-Mono phase
Neutral Neutral Passing through
Switching Technology IGBT
Backfeed Protection Internal, standard
Output wave form on mains operation Sinusoidal
Output wave form on battery operation Sinusoidal
Standards EN 62040-1, EN 62040-2, EN 62040-3
Bypass
Nominal Voltage 230 V mono phase + neutral + PE
Voltage Range ±10% (adjustable)
Frequency ±3Hz (adjustable)
Bypass type Static and electro-mechanic
Transfer time Zero
Manual Bypass Not present
Input Features
Nominal Voltage 230 V mono phase + neutral + PE
Voltage Range 165V-280V Ph-N full load
Frequency 45 - 65Hz
THDi < 6% at full load
Power Factor > 0.99
2
Total weight depends on the quantity of the installed batteries according to the required
autonomy

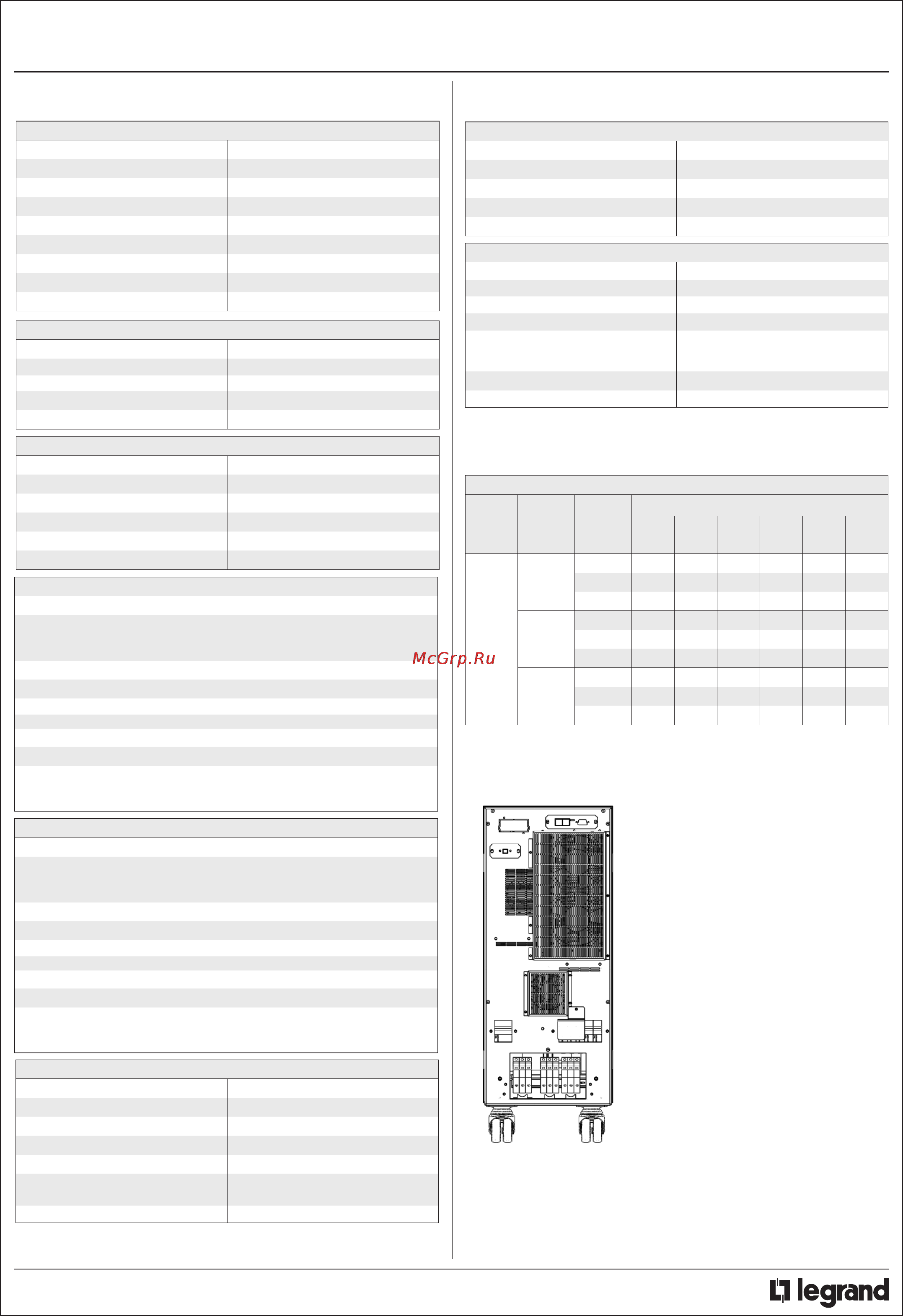

3. REAR PANEL DRAWING
3 101 21 – 3 101 22 – 3 101 23 - 3 101 25
Keor S 3000
Long backup time table
KEOR S
UPS
Items
Battery
cabinet
Items
Backup time (min)
50%
load
60%
load
70%
load
80%
load
90%
load
full
load
3000 VA
3 101 21
3 107 41 70 60 50 40 32 30
3 107 42 97 80 65 60 50 45
3 107 43 200 150 120 105 95 85
3 101 22
3 107 41 95 80 65 60 50 45
3 107 42 120 100 85 70 65 60
3 107 43 240 190 145 120 110 95
3 101 25
3 107 41 70 60 50 40 32 30
3 107 42 97 80 65 60 50 45
3 107 43 200 150 120 105 95 85
