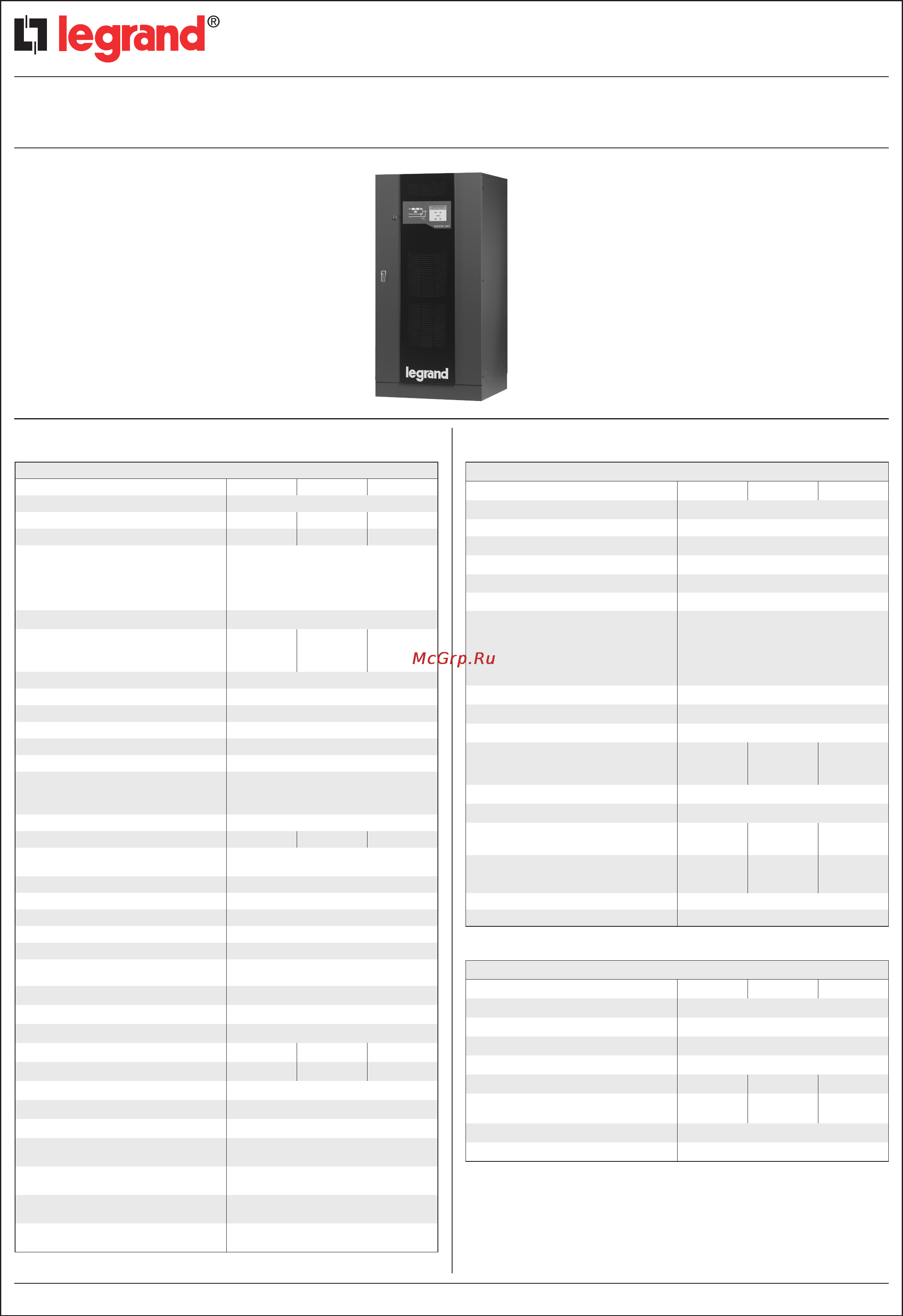

Keor HP 100-120-160

Data sheet: UPS-LGR-0091/GB 01/03/2015Update: 01/03/2015

1/2

1. TECHNICAL FEATURES

General Features

Power (kVA) 100 120 160

UPS Topology ON LINE - Double Conversion

Nominal output power (kVA Cosϕ 0.9) 100 120 160

Nominal output power (Cosϕ 1.0) 90 112.5 144

Efﬁciency* (AC ÷ AC) (%)

@25% load

@50% load

@75% load

@100% load

> 92

> 95

> 94,5

Efﬁciency (AC ÷ AC) (Eco Mode) > 98

Heat dissipation at nominal load and voltage :

(kW )

(kcal/h x 1000)

6.6

5.6

8.3

7.1

10.6

9.0

UPS ambient temperature (°C) 0 ÷ 40

BATTERY ambient temperature (°C) 0 ÷ +25

UPS storage temperature (°C) -10 ÷ +70

BATTERY storage temperature (°C) -10 ÷ +60

Relative humidity % (non condensing) < 95

Altitude m < 1000 (Above Sea Level)

Power derating for altitude > 1000 m

According to “IEC62040-3”, 0,5% power

derating every 100m above 1000m,

up to max 2000m

Ventilation Forced

Requested cooling air volume (m

/h) 2100 2300 2500

Audible noise level

(according to IEC EN 62040-3)

< 60

Standard battery type lead acid 300 - 312 adjustable

Protection degree IP 20

Electromagnetic compatibility EMI According to “IEC EN 62040-2” (CE marking)

Safety IEC EN 62040-1

Test and performance IEC EN 62040-3

Paint

RAL 7016

RAL 9005

Accessibility Front and top access for service

Installation Also against wall and/or side-by-side

Dimensions (mm) (WxDxH) 815 x 825 x 1670

Weight kg (without battery) 625 660 715

Static load (kg/m

) (without battery) 1040 1098 1190

Input/output cable connection Bottom Side (Top Side on Request)

Transport Base provided for forklift handling

Transport mechanical stress According to “IEC EN 62040-3”

Design standard

“IEC EN 62040”

“ISO 9001:2008” - “ISO 14001”

Free contact interface

Standard to remotize the following contact:

EPO – MBCB – BCB – DIESEL MODE

Serial communication interface

Standard: RS232 - USB

Optional: RS485 (Mod-Bus protocol)

Parallel conﬁguration (optional)

Up to 5+1 (redundant parallel)

Up to 6 (power parallel)

Input: rectifier and battery charger

Power (kVA) 100 120 160

Input Three-phase

Nominal input voltage (Vac) 400

Input voltage range % -20/+15

Input frequency (Hz) 50 – 60

Input frequency range ±5 / ±10 adjustable

Input power factor > 0.99

Input current THD at nominal voltage

and THDV <0,5% * (%)

@25% load

@50% load

@75% load

@100% load

< 10

< 7

< 5

< 3

DC output voltage accuracy ±1

DC output voltage ripple 1

Battery recharging characteristic IU (DIN 41773)

Maximum recharging current (A)

- at nominal load

- with DCM function (max current)

100

AC-DC converter type PFC IGBT

Input protection Fuses

Nominal current absorbed from mains

(at nominal load and battery charged) (A)

138 173 221

Maximum current absorbed from mains

(at nom. load, nom. voltage and max.

recharging current) (A)

156 196 246

Sectable walk-in (sec) Sectable from 5’’ to 30’’

Sectable hold-off (sec) Sectable from 1’’ to 300’’

Batteries

Power (kVA) 100 120 160

Type (standard) other on request Lead Sealed maintenance free

Number of Cells 300 – 312 adjustable

Floating Voltage at 25°C 680 for 300 cells, 707 for 312 cells (adjustable)

Minimum Discharge Voltage Vdc 496 for 300 cells, 516 for 312 cells (adjustable)

Inverter input power (at nominal Load) Vdc 93 117 149

Inverter input current (A)

(at nominal load - minimum Vdc)

188 235 300

Battery Protection (external to the UPS) Wall mounted fused switch box on request

Battery Test Included as standard

* Certified by TÜV NORD GmbH
