Data sheet: UPS-LGR-0091/GB Update: 01/03/2015
Keor HP 100-120-160
01/03/2015
2/2
1. Input mains (separate for by-pass and rectifier)
2. Rectifier and battery charger
3. External battery
4. Inverter
5. Emergency line (by-pass) with backfeed
6. Inverter (SSI) and by-pass (SSB) static switch
3. OPTIONS
1. Insulation transformer on by-pass
2. Voltage adaptation auto-transformers
3. Serial interface rs-485 (mod-bus protocol)
4. Snmp adapter
5. Remote monitoring panel
6. Parallel card interface kit
7. External battery cabinet
8. Wall mounted fused switch box
9. In/out top cable entry
10. Special paint
11. Load-sync bus card interface kit
4. SOFTWARE ENABLED FUNCTIONS
Output: Inverter
Power (kVA) 100 120 160
Inverter Bridge IGBT (High Frequency PWM)
Nominal output power (Cosϕ 0.9) 100 120 160
Nominal output power (Cosϕ 1.0) 90 112.5 144
Efficiency (AC ÷ AC) (%)
@25% load
@50% load
@75% load
@100% load
> 92
> 96
> 96
> 96
Output Three-phase + Neutral
Nominal Output Voltage (selectable) (Vac) 380-400-415
Output Voltage Stability
- Static (Balanced Load) (%)
- Static (Unbalanced Load) (%)
- Dynamic (Step Load 20%÷ 100% ÷20%) (%)
- Output Volt. Recovery Time(after step load) (ms)
- IEC EN 62040-3
± 1
± 2
± 5
< 20
Class 1
Phase Angle Accuracy
- Balanced Load
- 100% Unbalanced Load
± 1
± 1
Output Frequency (selectable) (Hz) 50 - 60
Output Frequency Stability
- Free Running Quartz Oscillator (Hz)
- Inverter Sync. with Mains (Hz)
- Slew rate (Hz/s)
± 0,001
± 2 (other on request)
1
Nominal Output Current (@ 400 Vac output) (A)
- Cosϕ 0.9 (leading and lagging)
- Cosϕ 1 (purely resistive load)
145
130
181
163
232
209
Overload Capability
10 min >100%…125%
1 min >125%…150%
10 s >150%…199%
100 ms at 200%
Short Circuit Current IK1 (phase-neutral) (A) 455 570 731
Short Circuit Current IK2 (phase-phase) (A) 260 326 418
Short Circuit Current IK3 (three phase) (A) 221 277 355
Short Circuit Characteristic
Elect. short circuit protection,
current limited at above values.
Automatic stop after 5 seconds
Selectivity Within ½ cicle (Fuse gl 20% In)
Output Waveform Sinusoidal
Output Harmonic Distortion (%)
- Linear Load
- Non Linear Load
- IEC EN 62040-3
< 1
< 5
Fully compliant
Max Crest Factor without derating 3:1
Bypass
Automatic static by-pass Electronic Thyristor Switch
Protection Fuses
Bypass Three-phase + Neutral
Nominal input voltage (Vac) 380-400-415
Input voltage range (%) ±10
Input frequency (Hz) 50-60
Input frequency range (%) ± (1÷5) ±10 adjustable
Transfer mode Without break
Transfer inverter - automatic bypass
In case of :
- Static Switch test
- Inverter test
- Inverter not operating
- Battery end of discharge
Retransfer automatic bypass - inverter
- Automatic
- Block on bypass after 6 transfers
within 2 minutes, reset by front panel
Overload Capability (%) 150 Continuously 1000 For 1 Cycle
Manual By-Pass
Standard:
- Electronically controlled
- No break

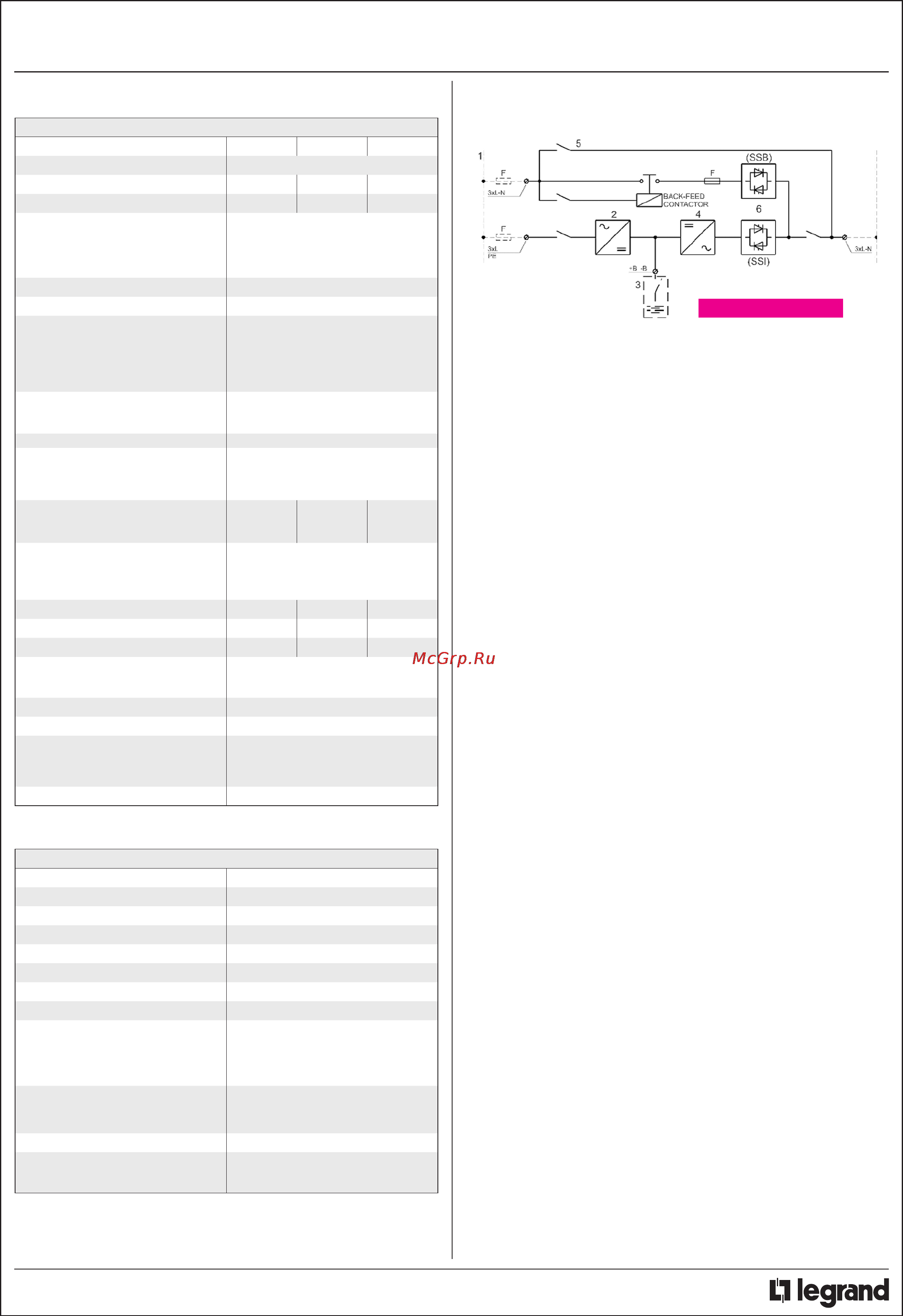

1. TECHNICAL FEATURES (continued) 2. BLOCK DIAGRAM
1. Diesel-mode
2. Eco-mode
3. Boost-charge
4. Rectifier walk-in time
5. Rectifier delay on startup (hold-off time)
6. Frequency converter mode
7. Dcm function
Schema da cliente
