87045 LIMOGES Cedex
Telephone : (+33) 05 55 06 87 87 - Fax : (+33) 05 55 06 88 88
TABLE OF CONTENTS Page
1. Technical features .................................1
2. Block diagram ........................................ 2
3. Options ..................................................2
4. Software enabled functions ..................2

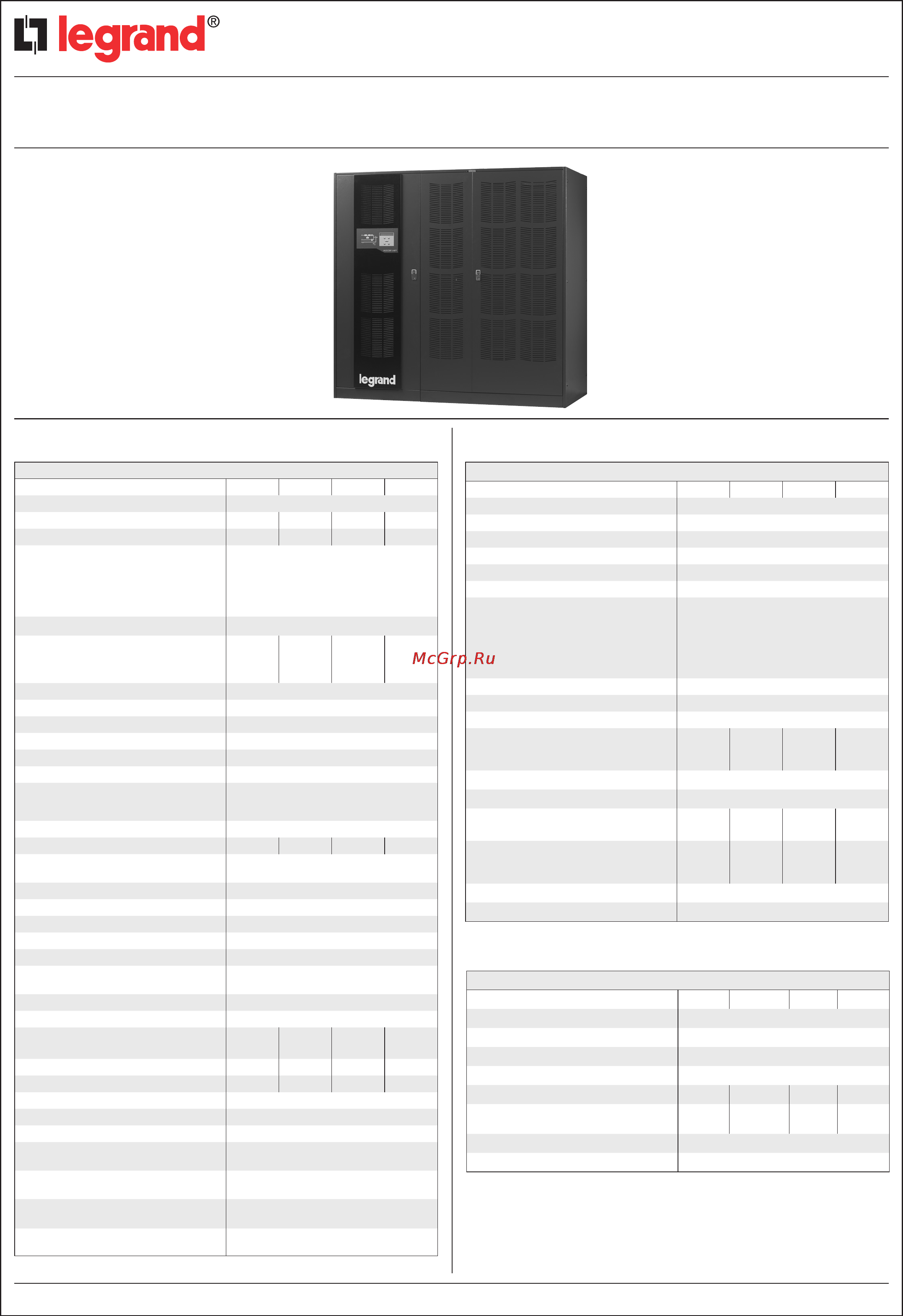

Keor HP 400-500-600-800
Data sheet: UPS-LGR-0093/GB 01/03/2015Update: 01/03/2015
1/2
1. TECHNICAL FEATURE
* Certified by TÜV NORD GmbH
* Certified by TÜV NORD GmbH
General Features
Power (kVA) 400 500 600 800
UPS Topology ON LINE - Double Conversion
Nominal output power (kVA Cosϕ 0.9) 400 500 600 800
Nominal output power (Cosϕ 1.0) 360 450 540 720
Efficiency* (AC ÷ AC) (%)
@25% load
@50% load
@75% load
@100% load
> 92
> 95
> 95
> 94,5
Efficiency (AC ÷ AC) (Eco Mode) > 98
Heat dissipation at nominal load and voltage :
(kW )
(kcal/h x 1000)
24.7
21.3
30.9
26.5
37.1
31.8
48.7
41.7
UPS ambient temperature (°C) 0 ÷ 40
BATTERY ambient temperature (°C) 0 ÷ +25
UPS storage temperature (°C) -10 ÷ +70
BATTERY storage temperature (°C) -10 ÷ +60
Relative humidity % (non condensing) < 95
Altitude m < 1000 (Above Sea Level)
Power derating for altitude > 1000 m
According to “IEC62040-3”, 0,5% power
derating every 100m above 1000m, up to
max 2000m
Ventilation Forced
Requested cooling air volume (m
3
/h) 3500 4000 4500 7000
Audible noise level
(according to IEC EN 62040-3)
< 62
Standard battery type lead acid 300 - 312 adjustable
Protection degree IP 20
Electromagnetic compatibility EMI According to “IEC EN 62040-2” (CE marking)
Safety IEC EN 62040-1
Test and performance IEC EN 62040-3
Paint
RAL 7016
RAL 9005
Accessibility Front and top access for service
Installation Also against wall and/or side-by-side
Dimensions (mm) (WxDxH)
1990x965
x1920
2440x965
x2020
2440x965
x2020
3640x965
x1920
Weight kg (without battery) 1820 2220 2400 3600
Static load (kg/m
2
) (without battery) 1037 1028 1111 1111
Input/output cable connection Bottom Side (Top Side on Request)
Transport Base provided for forklift handling
Transport mechanical stress According to “IEC EN 62040-3”
Design standard
“IEC EN 62040”
“ISO 9001:2008” - “ISO 14001”
Free contact interface
Standard to remotize the following contact:
EPO – MBCB – BCB – DIESEL MODE
Serial communication interface
Standard: RS232 - USB
Optional: RS485 (Mod-Bus protocol)
Parallel configuration (optional)
Up to 5+1 (redundant parallel)
Up to 6 (power parallel)
Input: rectifier and battery charger
Power (kVA) 400 500 600 800
Input Three-phase
Nominal input voltage (Vac) 400
Input voltage range % -20/+15
Input frequency (Hz) 50 - 60
Input frequency range ±5 / ±10 adjustable
Input power factor > 0.99
Input current THD at nominal voltage
and THDV <0,5% * (%)
@25% load
@50% load
@75% load
@100% load
< 10
< 7
< 5
< 3
DC output voltage accuracy ±1
DC output voltage ripple 1
Battery recharging characteristic IU (DIN 41773)
Maximum recharging current (A)
- at nominal load
- with DCM function (max current)
60
100
80
100
80
100
120
200
AC-DC converter type PFC IGBT
Input protection Fuses
Nominal current absorbed from mains
(at nominal load and battery charged) (A)
553 686 830 1107
Maximum current absorbed from mains
(at nom. load, nom. voltage
and max. recharging current) (A)
624 784 926 1247
Sectable walk-in (sec) Sectable from 5’’ to 30’’
Sectable hold-off (sec) Sectable from 1’’ to 300’’
Batteries
Power (kVA) 400 500 600 800
Type (standard) other on request Lead Sealed maintenance free
Number of Cells 300 - 312 adjustable
Floating Voltage at 25°C 680 for 300 cells, 707 for 312 cells (adjustable)
Minimum Discharge Voltage Vdc 496 for 300 cells, 516 for 312 cells (adjustable)
Inverter input power (at nominal Load) Vdc 373 467 560 747
Inverter input current (A)
(at nominal load - minimum Vdc)
753 941 1129 1507
Battery Protection (external to the UPS) Wall mounted fused switch box on request
Battery Test Included as standard
