Data sheet: UPS-LGR-0093/GB Update: 01/03/2015
Keor HP 400-500-600-800
01/03/2015
2/2

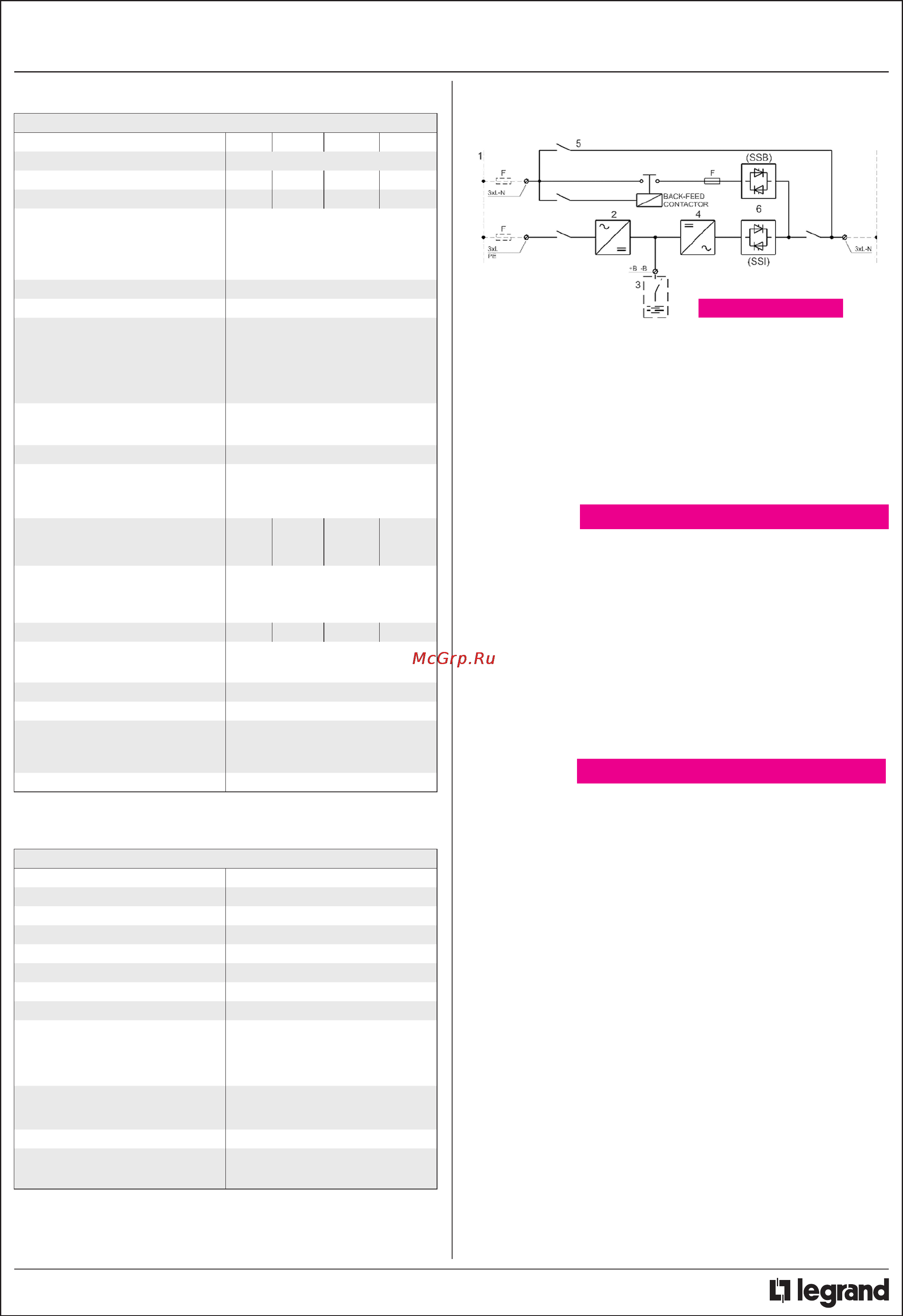

2. BLOCK DIAGRAM
Schema da cliente
Questo testo non è presente nel francese.
Questo testo non è presente nel francese.
1. TECHNICAL FEATURES (continued)
Output: Inverter
Power (kVA) 400 500 600 800
Inverter Bridge IGBT (High Frequency PWM)
Nominal output power (Cosϕ 0.9) 400 500 600 800
Nominal output power (Cosϕ 1.0) 360 450 540 720
Efficiency (AC ÷ AC) (%)
@25% load
@50% load
@75% load
@100% load
> 92
> 96
> 96
> 96
Output Three-phase + Neutral
Nominal Output Voltage (selectable) (Vac) 380-400-415
Output Voltage Stability
- Static (Balanced Load) (%)
- Static (Unbalanced Load) (%)
- Dynamic (Step Load 20%÷ 100% ÷20%) (%)
-
Output Volt. Recovery Time(after step load) (ms)
- IEC EN 62040-3
± 1
± 2
± 5
< 20
Class 1
Phase Angle Accuracy
- Balanced Load
- 100% Unbalanced Load
± 1
± 2
Output Frequency (selectable) (Hz) 50 - 60
Output Frequency Stability
- Free Running Quartz Oscillator (Hz)
- Inverter Sync. with Mains (Hz)
- Slew rate (Hz/s)
± 0,001
± 2 (other on request)
1
Nominal Output Current (@ 400 Vac output) (A)
- Cosϕ 0.9 (leading and lagging)
- Cosϕ 1 (purely resistive load)
580
521
724
652
870
783
1060
1042
Overload Capability
10 min >100%…125%
1 min >125%…150%
10 s >150%…199%
100 ms at 200%
Short Circuit Current (A) 695 870 1044 1390
Short Circuit Characteristic
Elect. short circuit protection,
current limited at above values.
Automatic stop after 5 seconds
Selectivity Within ½ cicle (Fuse gl 20% In)
Output Waveform Sinusoidal
Output Harmonic Distortion (%)
- Linear Load
- Non Linear Load
- IEC EN 62040-3
< 1
< 5
Fully compliant
Max Crest Factor without derating 3:1
Bypass
Automatic static by-pass Electronic Thyristor Switch
Protection Fuses
Bypass Three-phase + Neutral
Nominal input voltage (Vac) 380-400-415
Input voltage range (%) ±10
Input frequency (Hz) 50-60
Input frequency range (%) ± (1÷5) ±10 adjustable
Transfer mode Without break
Transfer inverter - automatic bypass
In case of :
- Static Switch test
- Inverter test
- Inverter not operating
- Battery end of discharge
Retransfer automatic bypass - inverter
- Automatic
- Block on bypass after 6 transfers
within 2 minutes, reset by front panel
Overload Capability (%) 150 Continuously 1000 For 1 Cycle
Manual By-Pass
Standard:
- Electronically controlled
- No break
1. Input mains (separate for by-pass and rectifier)
2. Rectifier and battery charger
3. External battery
4. Inverter
5. Emergency line (by-pass) with backfeed
6. Inverter (SSI) and by-pass (SSB) static switch
It is possible to install an external Manual Bypass, either in matching
cubicle or in wall mounted box (bypass switch auxiliary contact must be
connected to UPS related input port for status monitoring).
4. FONCTIONS ACTIVÉE
1. Diesel-mode
2. Eco-mode
3. Boost-charge
4. Rectifier walk-in time
5. Rectifier delay on startup (hold-off time)
6. Frequency converter mode
7. Dcm function
3. OPTIONS
1. Insulation transformer on by-pass
2. Voltage adaptation auto-transformers
3. Serial interface rs-485 (mod-bus protocol)
4. Snmp adapter
5. Remote monitoring panel
6. Parallel card interface kit
7. External battery cabinet
8. Wall mounted fused switch box
9. In/out top cable entry
10. Special paint
11. Load-sync bus card interface kit
12. Manual bypass switch in matching cubicle or wall mounted box
