• Document: Any type
• Page size: 10×12 inches (254.0×304.8 mm)
• Paper: Roll
• Paper type: Heavyweight Coated Paper
• Roll paper width: 10 inches (254.0 mm)

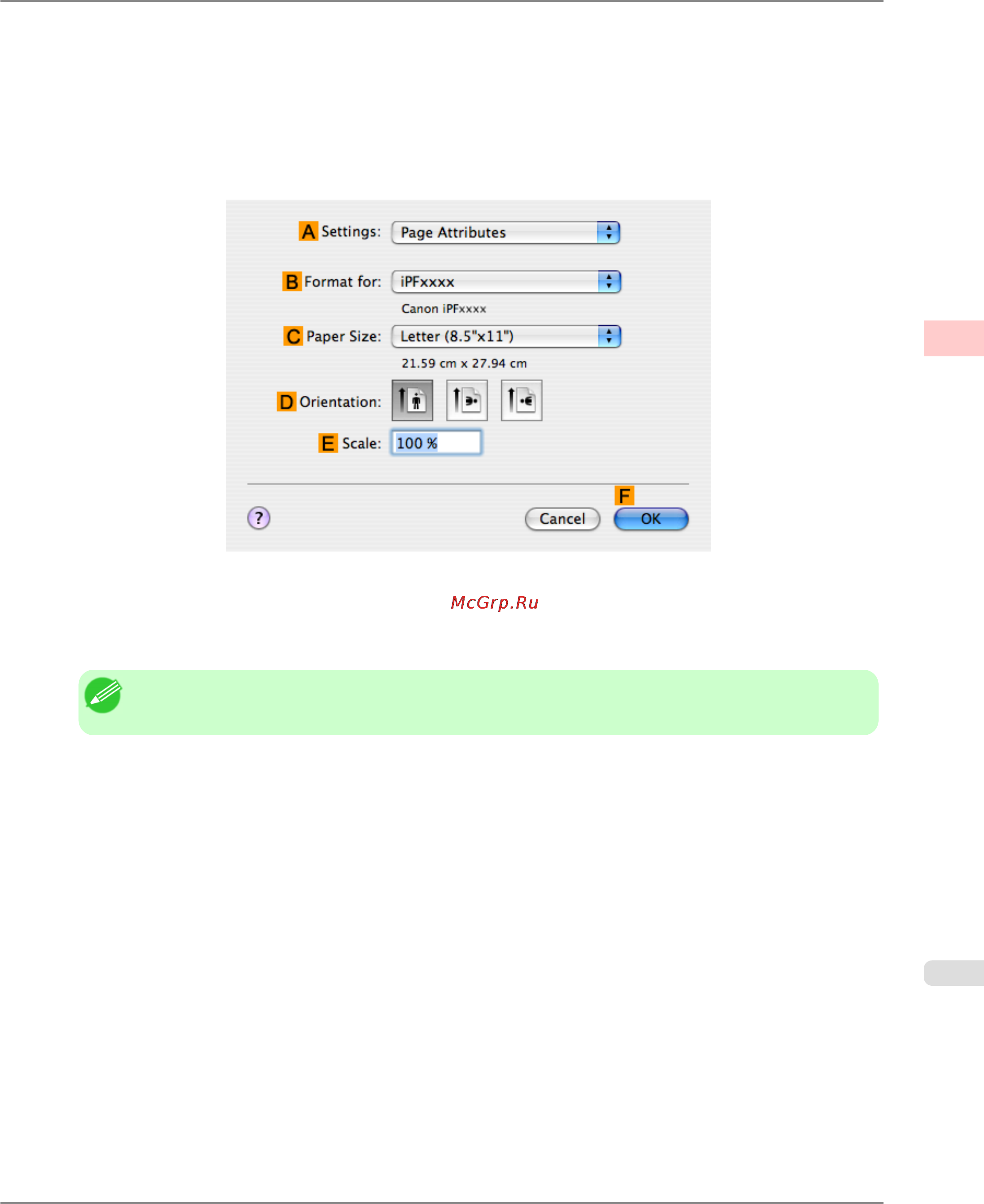

1. Choose Page Setup from the application menu to display the Page Attributes dialog box.
2. Select the printer in the B Format for list.
3. In the C Paper Size list, click the size of the original. In this case, click 10"x12".
Note
• All sizes are available in borderless printing if you resize originals to match the paper size.
4. Click F OK to close the dialog box.
5. In the application, create an original that takes up the entire space of the paper size.
6. Choose Print in the application menu.
Enhanced Printing Options
>
Borderless Printing
>
iPF6300S Borderless Printing by Resizing Originals to Match the Paper Size (Mac OS X)
