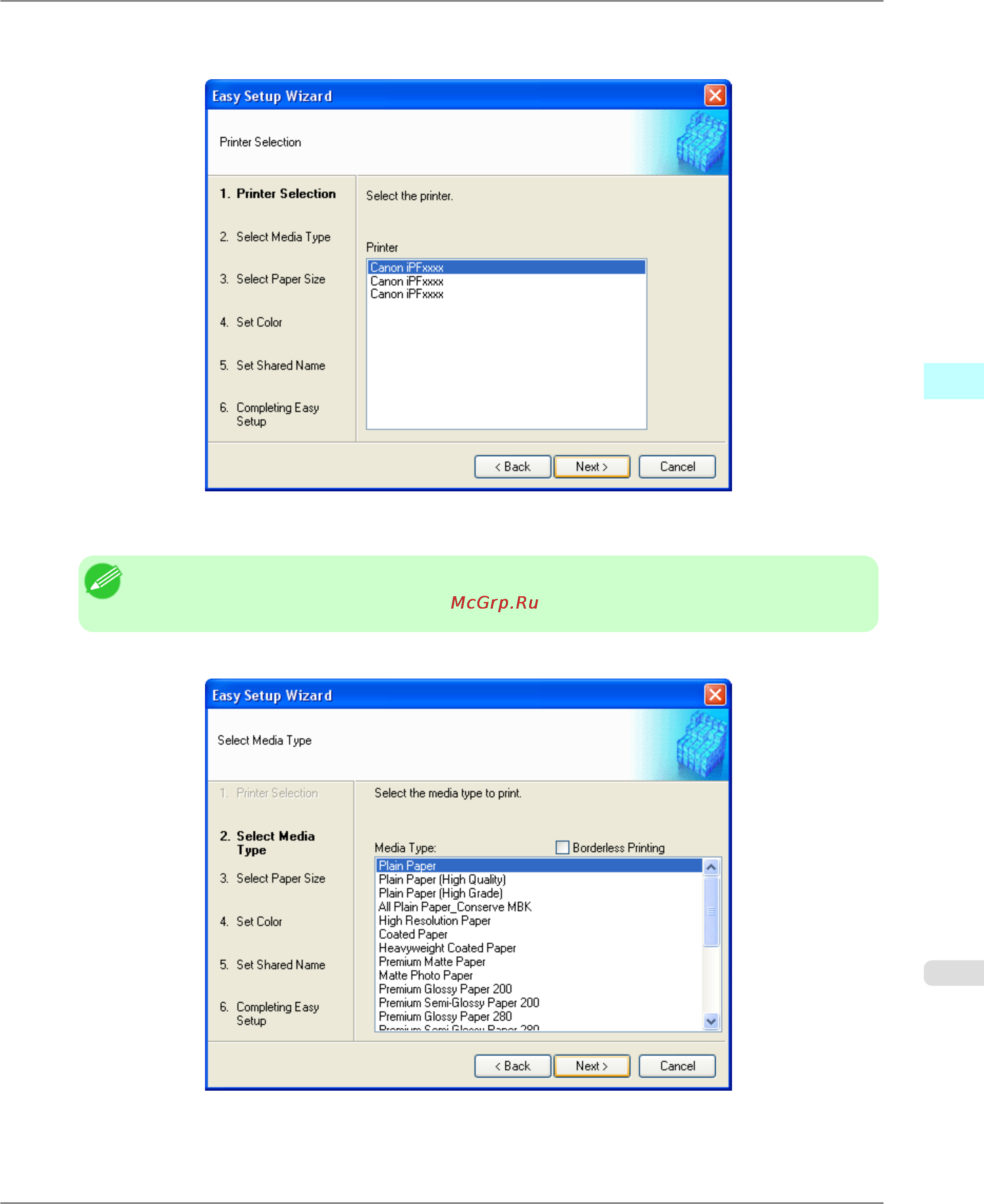

3. Select the type of printer to use.
Click the Next button.
4. Select the media type to print.
Note
• If the Borderless Printing checkbox is checked, only media types that can be used for borderless
printing are displayed in the list.
Click the Next button.
Windows Software
>
Color imageRUNNER Enlargement Copy
>
iPF6300S Creating a New Hot Folder
3
297
