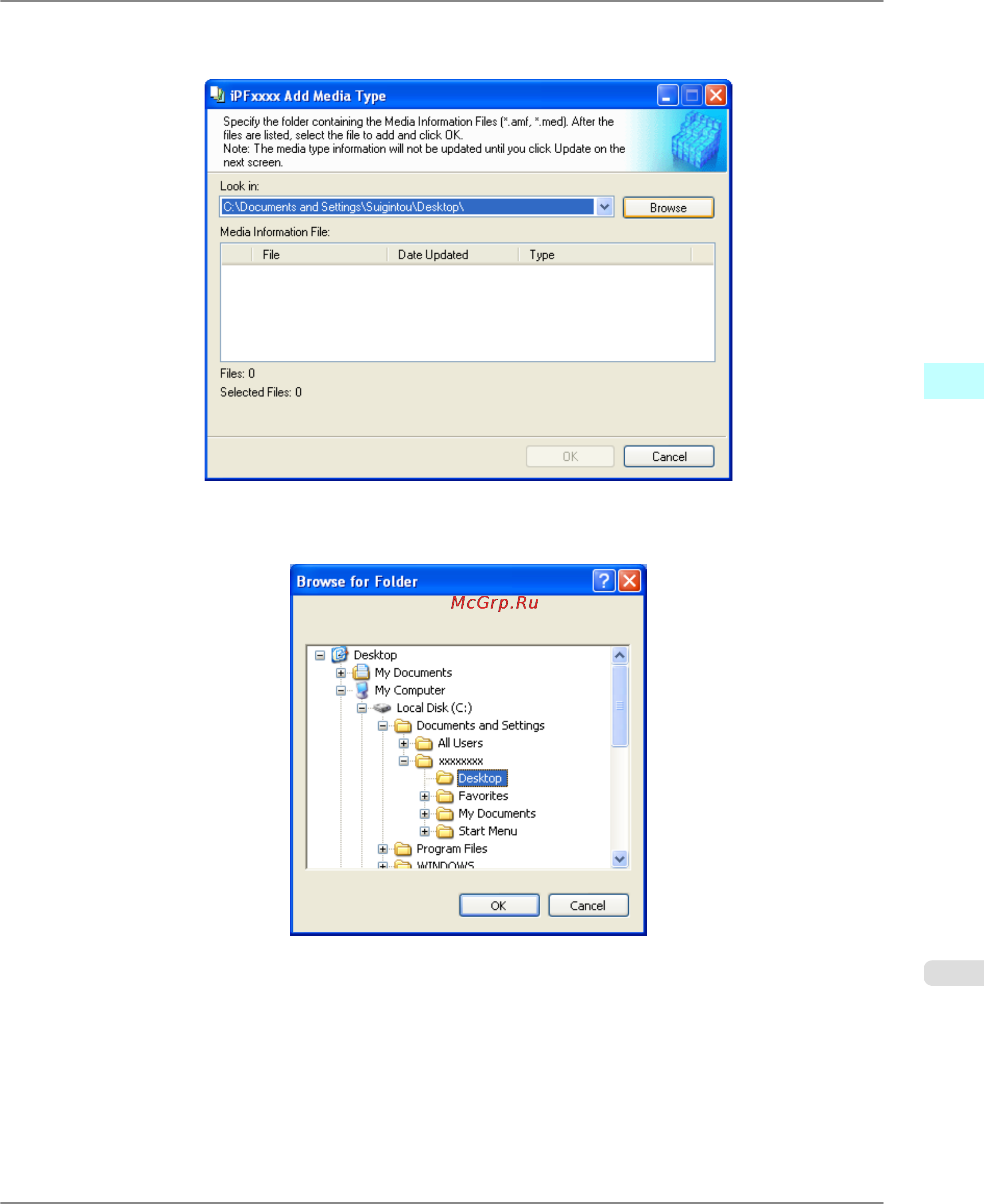

2. The Add Media Type dialog box displays.
Click the Browse button.
3. The Browse for Folder dialog box opens.
Select the folder that contains the media information files (.amf files), and then click the OK button.
Windows Software
>
Media Configuration Tool
>
iPF6300S Adding Media Types
3
455
