Cyberpower pr1000elcdrt2u [3/12] Installing your ups system

UNPACKING

The box should contain the following:

(1) UPS unit x 1; (2) User manual x 1; (3) Phone line x 1; (4) PowerPanel

Business Edition software CD x 1; (5)

USB A+B type cable x 1; (6) Rack mount Brackets x 2; (7) Emergency Power Off Cable (gray) x 1; (8) Serial

Interface Cable (DB-9) x 1; (9) Power cord x 4 (Power cord x 6 for PR2200ELCDRT2U)

AUTOMATIC VOLTAGE REGULATOR(AVR)

The PR1000ELCDRT2U/PR1500ELCDRT2U/PR2200ELCDRT2U can stabiliz

the consistent utility power. The utility power may be damaging to important data

and hardware, but Automatic Voltage Regulation helps the computer not

experience dangerous voltage levels. Automatic Voltage Regulator automatically

regulates low or high voltages to keep equipment working at safe AC power levels

(220/230/240V) without switching to battery. Your equipment can operate normally

even meet the power problems, such as, shout brownouts and blackouts. The

unit’s powerful sealed lead-acid batteries will provide power only if the incoming

voltage drops below 150V or increases above 300V.

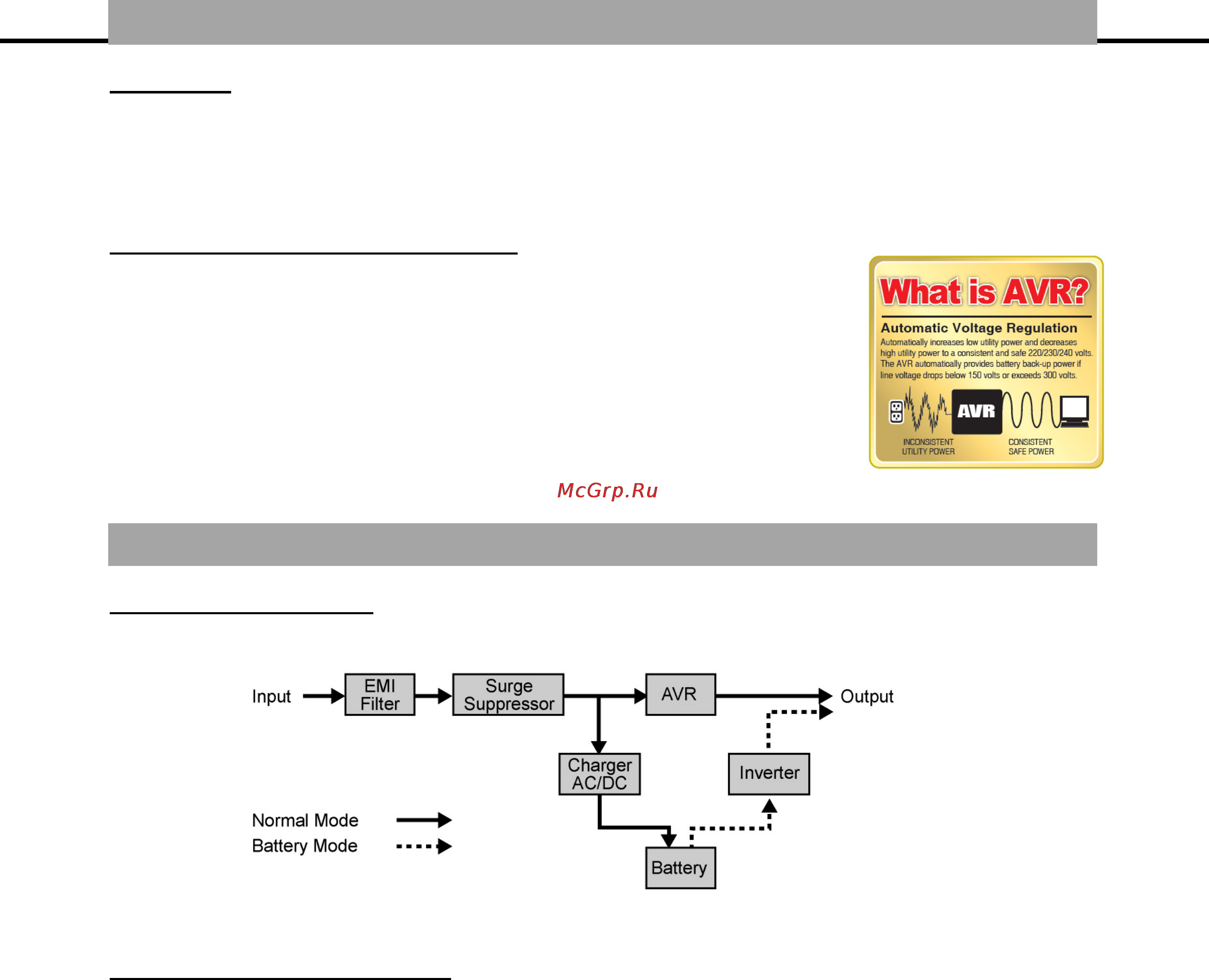

SYSTEM BLOCK DIAGRAM

HARDWARE INSTALLATION GUIDE

1. Battery charge loss may occur during shipping and storage. For the first time the UPS is used, it’s strongly

recommended to charge batteries for at least eight hours is recommended to ensure that the batteries’

maximum charge capacity. To recharge the batteries, simply make the UPS plugs into an AC outlet.

2. When you use the included software, connect either the serial or the USB cable between the computer and

the corresponding port on the UPS. Note: If the USB port is used, the serial port will be disabled. They cannot

be used simultaneously. The computer with the PowerPanel

Business Edition S/W connects to the USB port

or the Serial port on the UPS. It can control the operating schedule, battery test, outlet, etc. and get information

on the UPS status. However, other computers with PowerPanel

Business Edition S/W can only get UPS

status information via a LAN connection.

3. With the UPS off and unplugged, connect your computer, monitor, and any externally powered data storage

device (Hard drive, Tape drive, etc.) into the outlets. DO NOT plug a laser printer, copier, space heater,

vacuum, paper shredder or other large electrical device into the UPS. The power demands of these devices will

overload and possibly damage the unit.

4. To protect a fax, telephone, modem line or network cable, connect the telephone or network cable from the

wall jack outlet to the jack marked “IN” of the UPS. Then, connect a telephone cable or network cable from the

jack marked “OUT” on the UPS to the modem, computer, telephone, fax machine, or network device.

INSTALLING YOUR UPS SYSTEM

(continued)

INSTALLING YOUR UPS SYSTEM
