D-Link DGS-1008D Unmanaged Gigabit Ethernet Switch
5
Rear Panel Description
DC Power Jack:
Power is supplied through an external AC power adapter. Check the technical specification section for
information about the AC power input voltage.

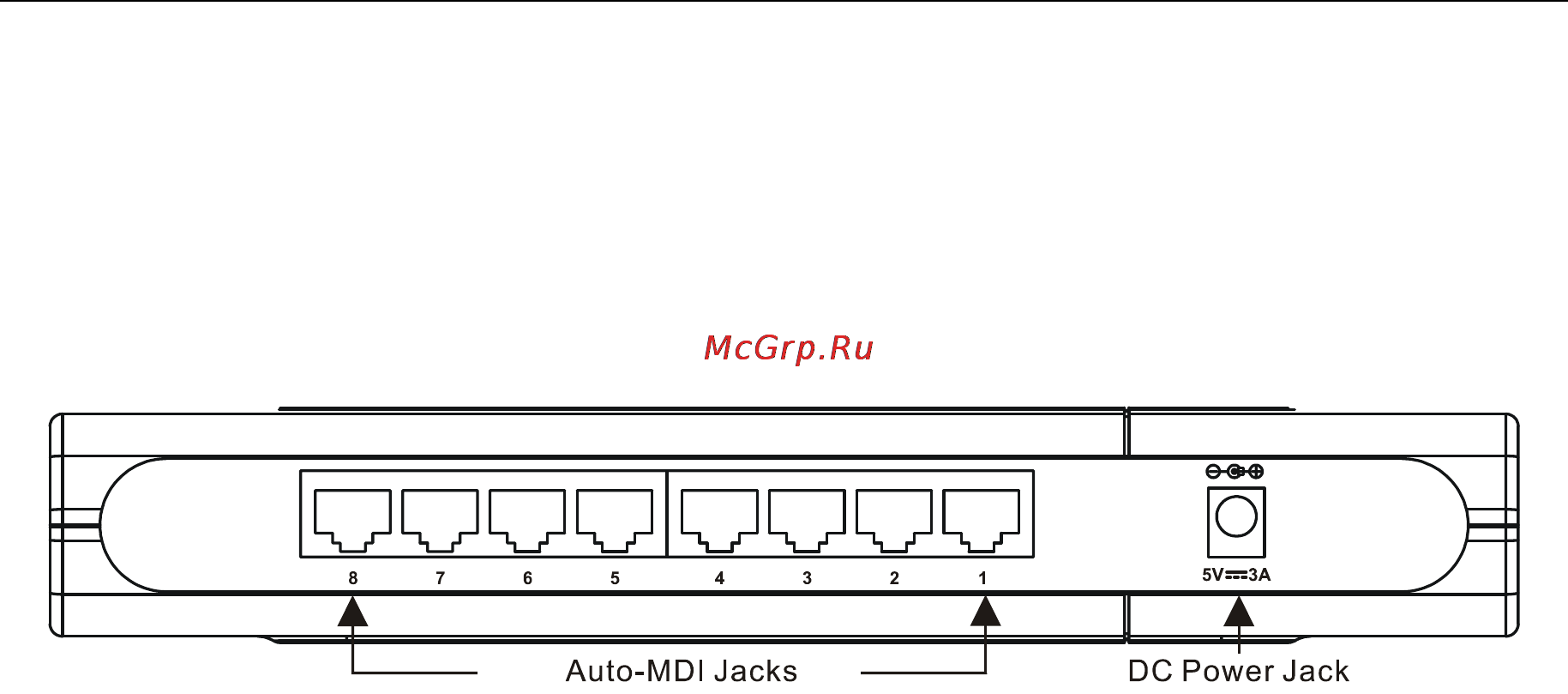

Figure 1-2. Rear panel view of the Switch
1000BASE-T Ports:
Eight (8) Gigabit Ethernet, Auto-Negotiating ports (10/100/1000Mbps)
Comprehensive LED indicators display the conditions of the Switch and status of the network.
