8 | About Your Monitor
Back View
Back View with monitor stand

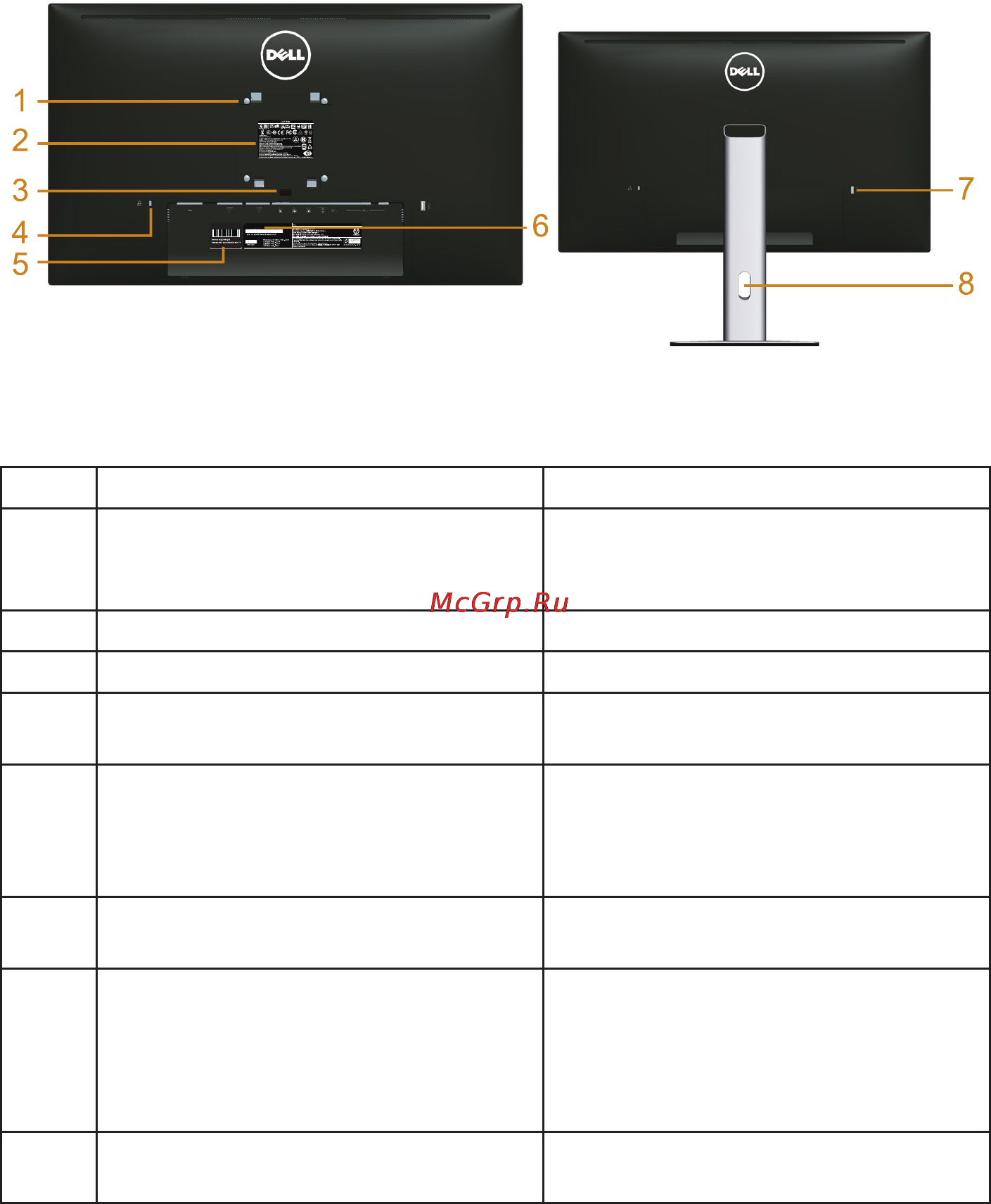

Label Description Use
1 VESA mounting holes (100 mm x 100
mm - behind attached VESA Cover)
Wall mount monitor using VESA-
compatible wall mount kit (100 mm x
100 mm).
2 Regulatory label Lists the regulatory approvals.
3 Stand release button Releases stand from monitor.
4 Security lock slot Secures monitor with security lock
(security lock not included).
5 Service tag label The Dell service tag is used for Dell
warranty and customer service
management purposes and for
records of the base system.
6 Barcode serial number label Refer to this label if you need to
contact Dell for technical support.
7 USB downstream port* Connects your USB device. You can
only use this connector after you
have connected the USB cable to
the computer and USB upstream
connector on the monitor.
8 Cable management slot Uses to organize cables by placing
them through the slot.
* It is recommended to use this port for your wireless USB device whenever possible.
