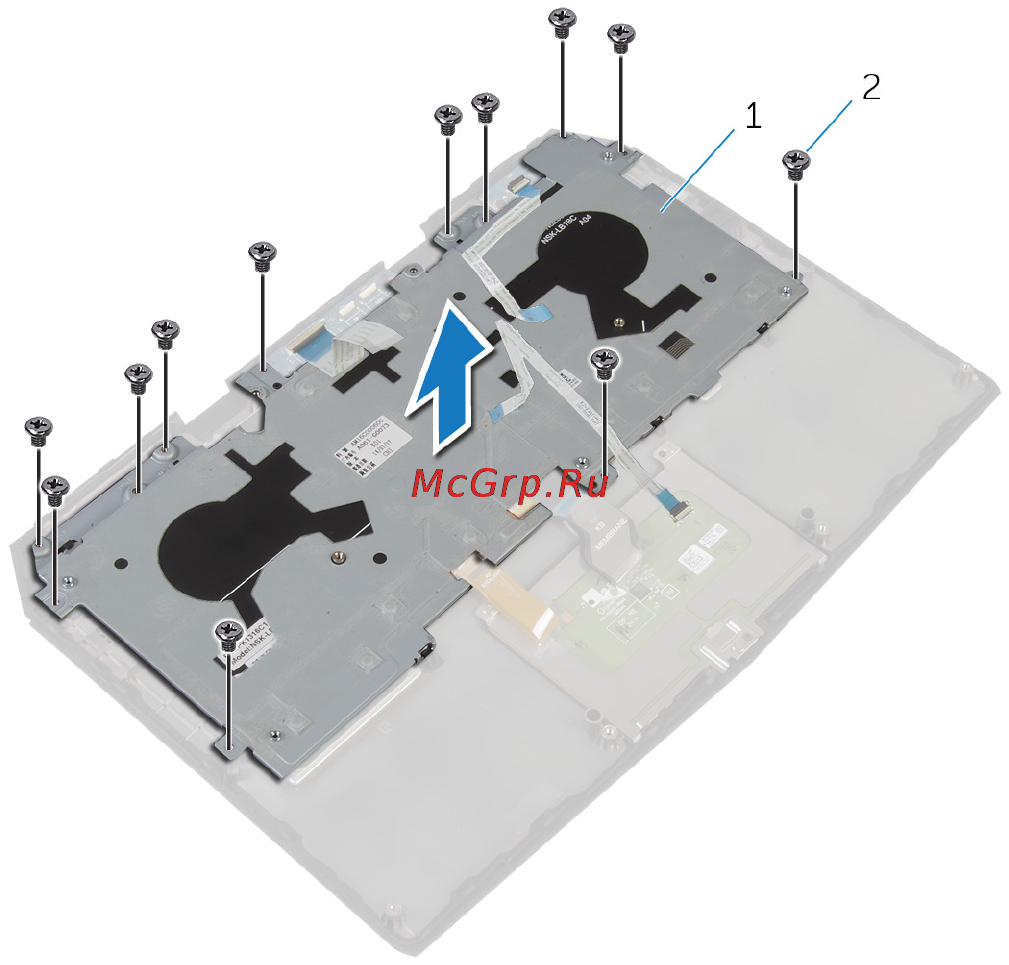

3 Remove the screws that secure the keyboard bracket to the palm-rest
assembly.
1 keyboard bracket 2 screws (12)
4 Lift the keyboard bracket off the palm-rest assembly.
5 Remove the screws that secure the keyboard to the palm-rest assembly.
45
