6 Slide and lift the keyboard, along with the cables, off the palm-rest
assembly.

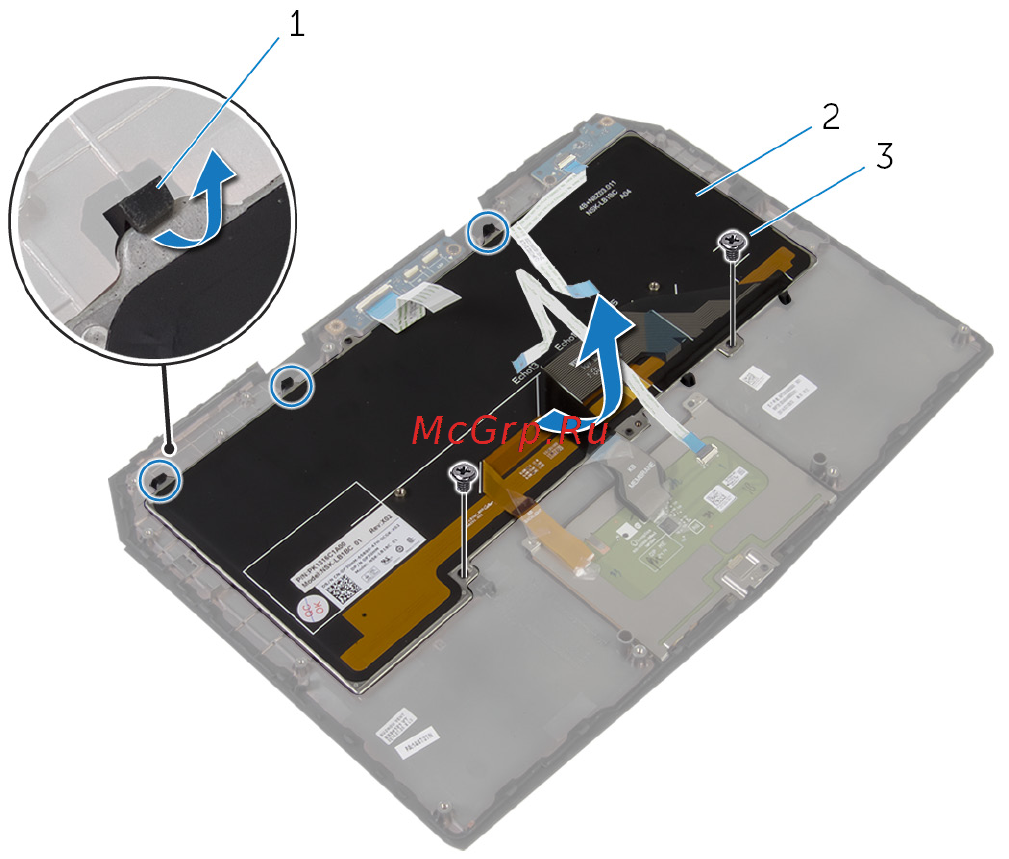

1 tabs (3) 2 keyboard
3 screws (2)
46
