Note: Be sure that you recorded the setting of your
device, else all the setting will be erased when
pressing the “Reset” button.
Rear Panel

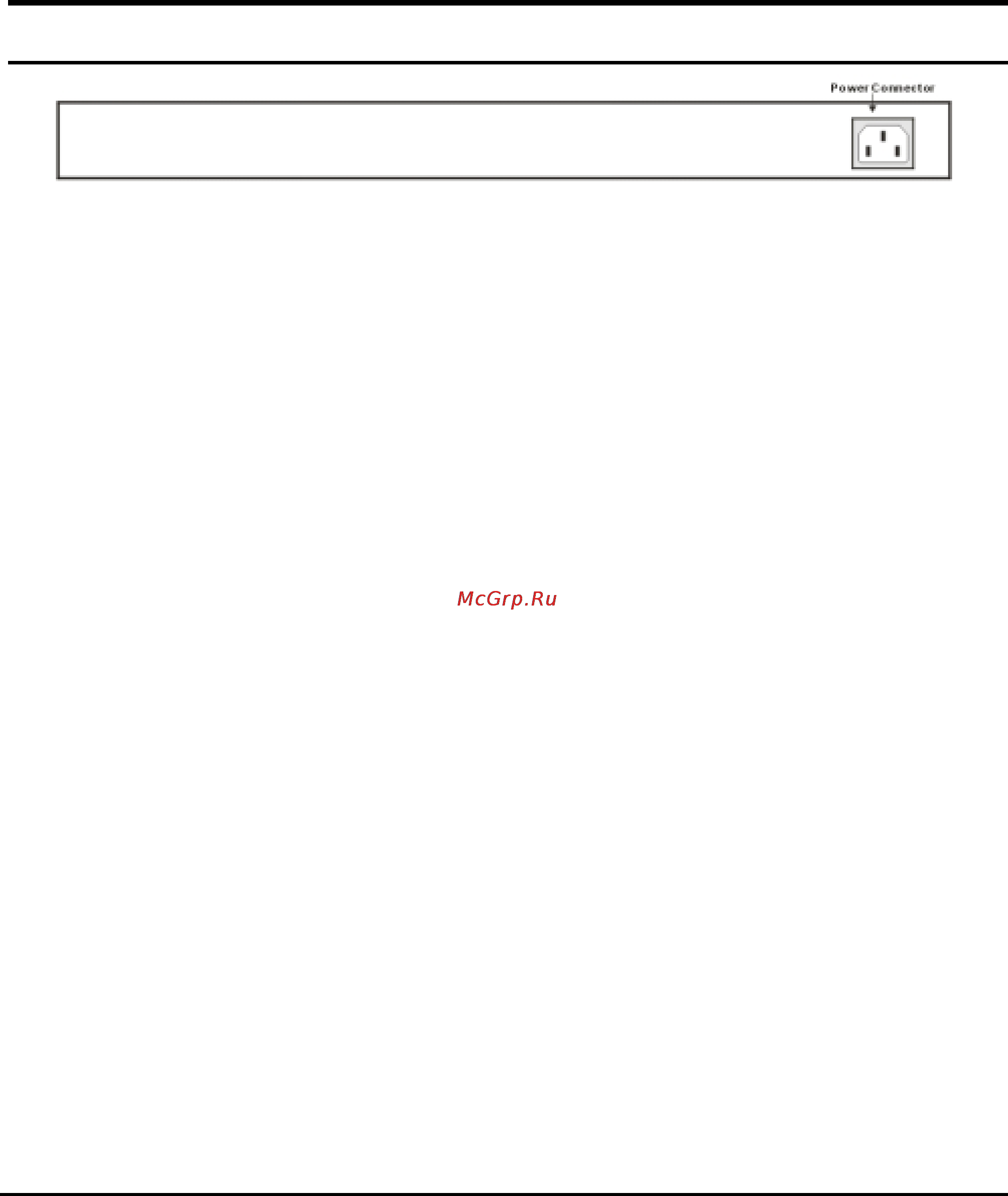

Figure 4. Rear panel of the Switch
AC Power Connector:
This is a three-pronged connector that supports the power cord. Plug
in the female connector of the provided power cord into this connector,
and the male into a power outlet. Supported input voltages range from
100-240V AC at 50-60Hz.
