Dell UltraSharp U2412M [3/36] Identifying parts and controls
![Dell UltraSharp U2412M [3/36] Identifying parts and controls](/views2/1166729/page3/bg3.png)

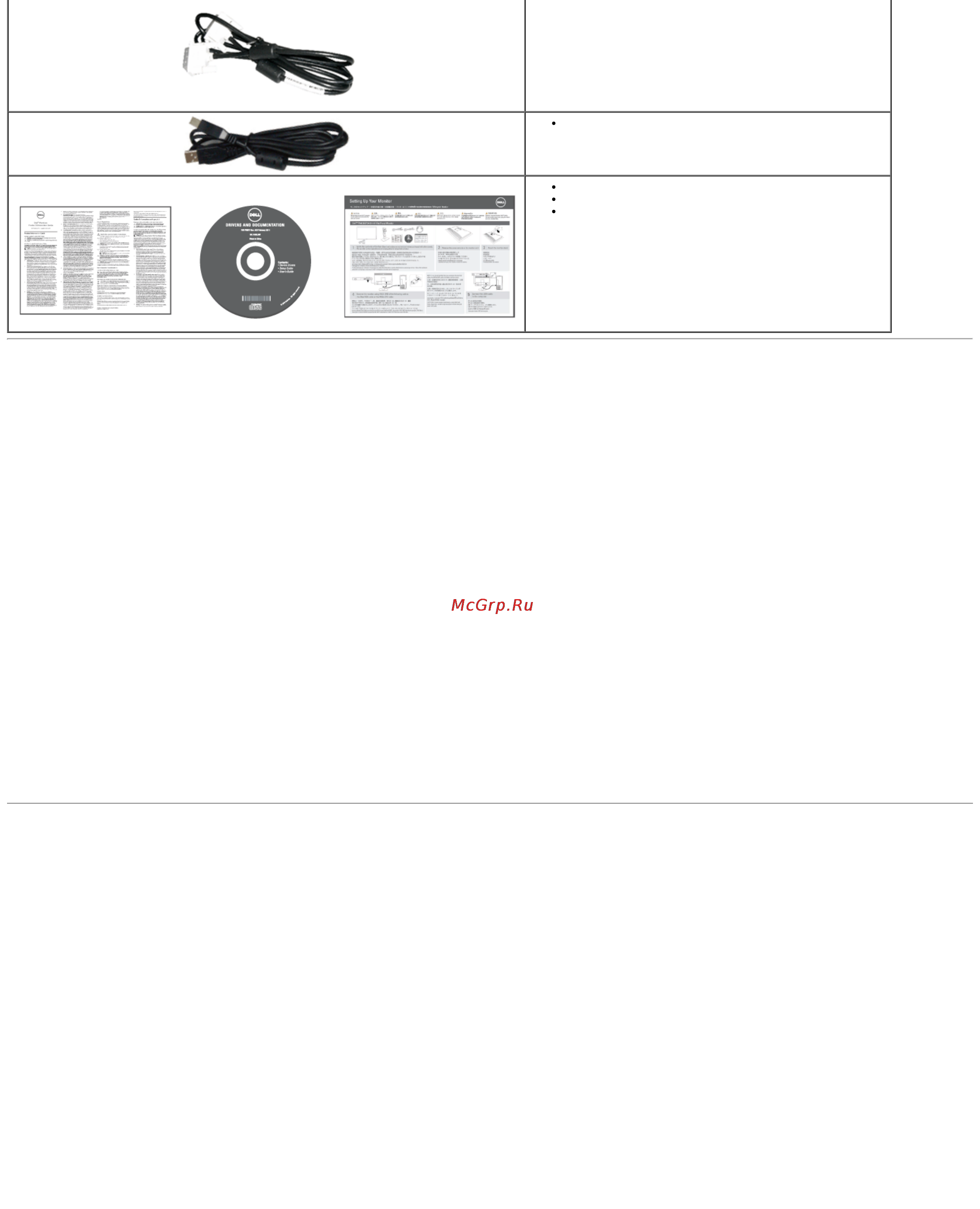

USB upstream cable (enables the USB ports on the monitor)
Drivers and Documentation media
Quick Setup Guide
Product and Safety Information Guide
Product Features
The U2412M flat panel display has an active matrix, Thin-Film Transistor (TFT), Liquid Crystal Display (LCD). The monitor features include:
■ 60.96 cm (24-inch) viewable area display (measured diagonally). 1920 x 1200 resolution, plus full-screen support for lower resolutions.
■ Wide viewing angle to allow viewing from a sitting or standing position, or while moving from side-to-side.
■ Tilt, swivel, vertical extension and rotate adjustment capability.
■ Removable stand and Video Electronics Standards Association (VESA
™) 100 mm mounting holes for flexible mounting solutions.
■ Plug and play capability if supported by your system.
■ On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.
■ Software and documentation media includes an information file (INF), Image Color Matching File (ICM), PowerNap software application and product documentation.
■ Energy Saver feature for Energy Star compliance.
■ Security lock slot.
■ Stand lock.
■ Asset Management Capability.
■ Capability to switch from wide aspect to standard aspect ratio while maintaining the image quality.
■ EPEAT Gold Rating.
■ Halogen Reduced.
■ TCO Certified Displays.
■ PowerNap Software included (comes in the CD shipped with the monitor).
Identifying Parts and Controls
Front View
