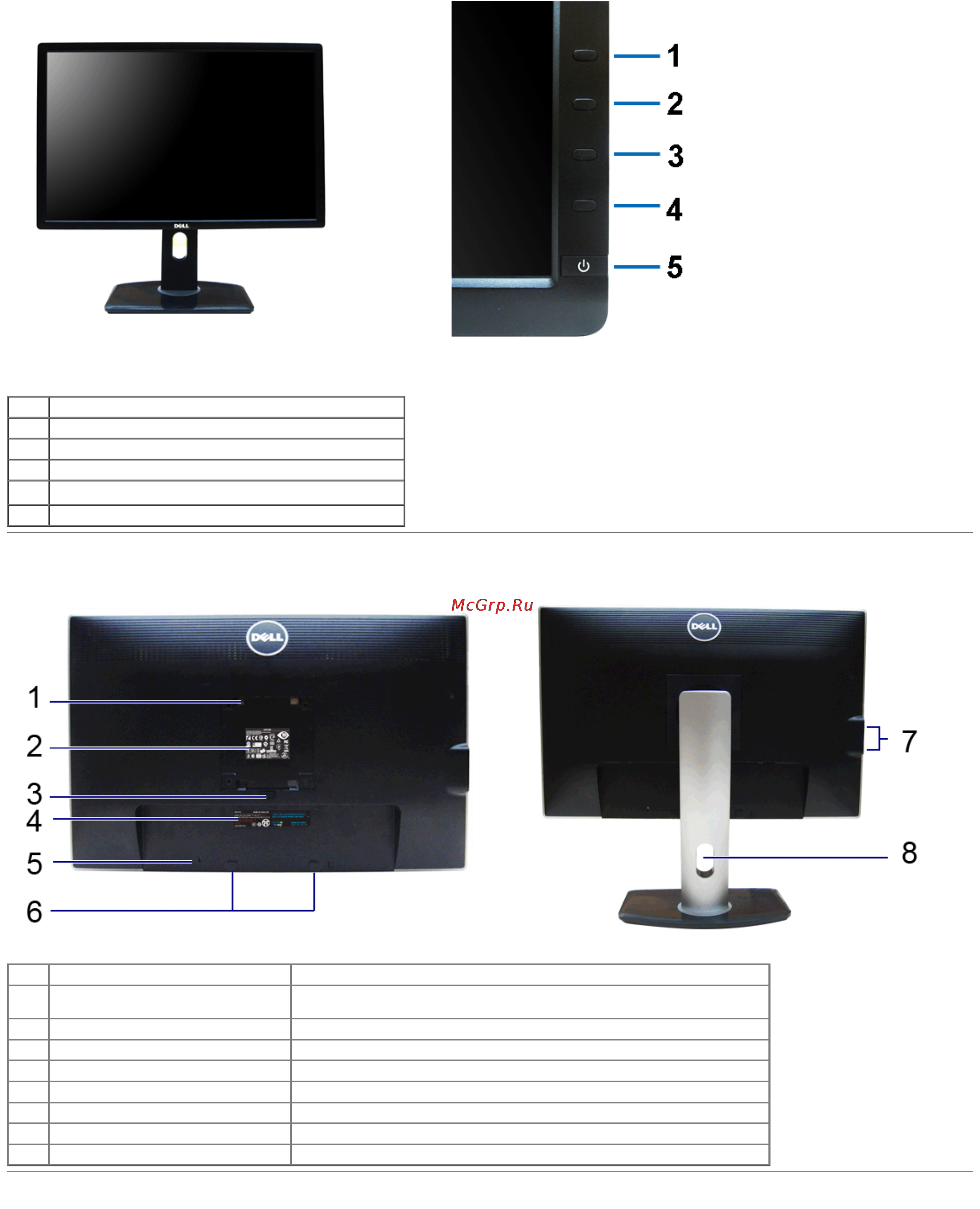

Front view Front panel controls
Label Description
1 Preset Modes (default, but configurable)
2 Brightness & Contrast (default, but configurable)
3 Menu
4 Exit
5 Power (with power light indicator)
Back View
Back view Back view with monitor stand
Label Description Use
1
VESA mounting holes (100 mm x 100 mm
- behind attached VESA Plate)
Wall mount monitor using VESA-compatible wall mount kit (100 mm x 100 mm)
2 Regulatory label Lists the regulatory approvals
3 Stand release button Release stand from monitor
4 Barcode serial number label Refer to this label if you need to contact Dell for technical support
5 Security lock slot Secures monitor with security cable lock
6 Dell Soundbar mounting brackets Attaches the optional Dell Soundbar
7 USB downstream ports Connect your USB devices
8 Cable management slot Use to organize cables by placing them through the slot
