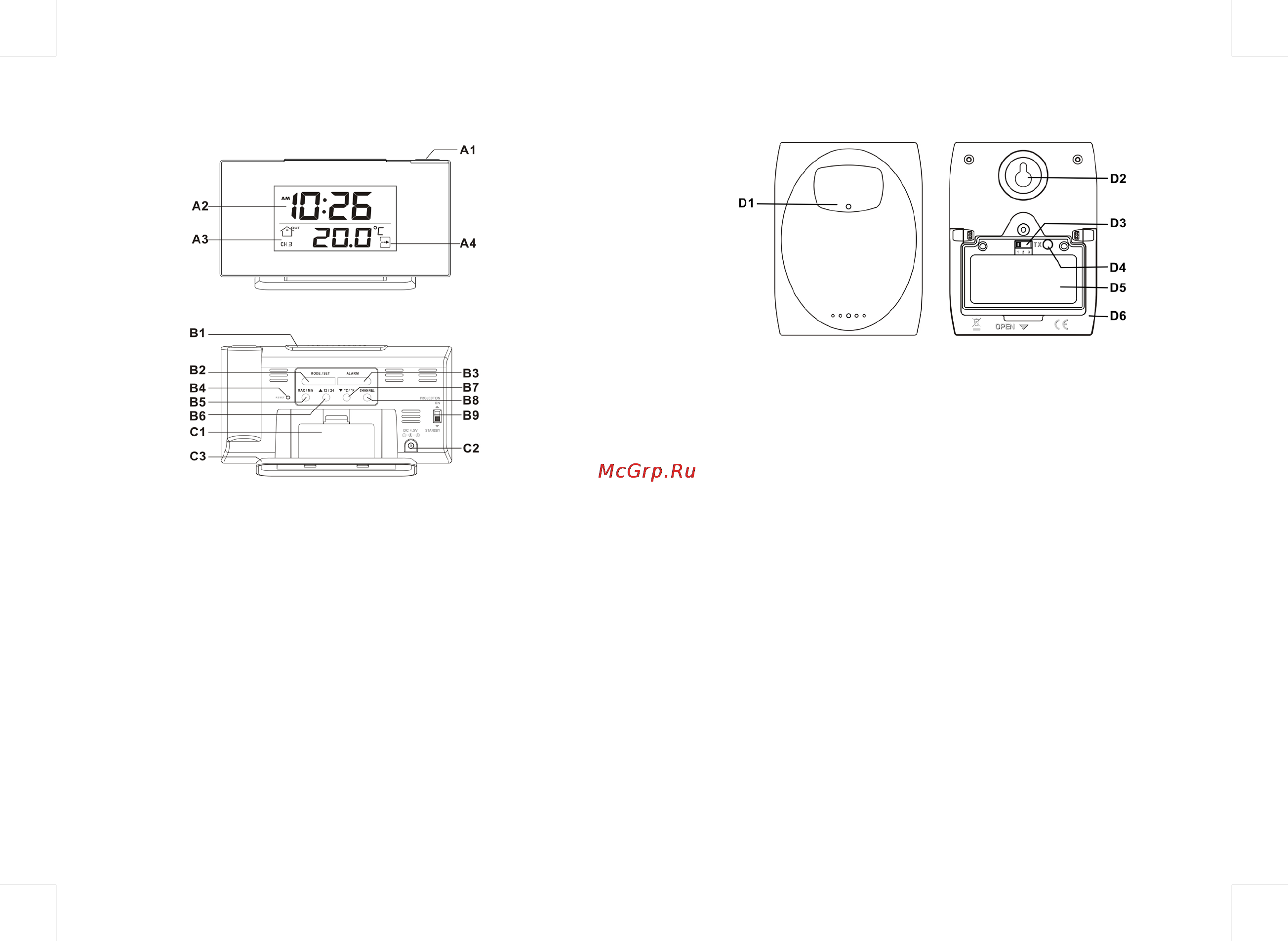

2. Main Unit Appearance 3. Outdoor Thermo Sensor
Part A - LCD
A1: Projection Time
A2: Time Display
A3: Temperature Channel
A4: Temperature Trend
Part B - Buttons
B1: ”SNOOZE/ LIGHT” button
B2: “MODE/SET” button
B3: “ALARM” button
B4: “RESET” button
B5: “MAX/MIN” button
B6: “▲ 12/24" button
B7: "▼/ °C/°F” button
B8: “CHANNEL” button
B9: “PROJECTION ON/STANDBY” slide
switch
Part C - Structure
C1: Battery Cover
C2: Adaptor Jack (DC 4.5V)
C3: Stand
D1: Transmission Indication LED
D2: Wall Mount Hole
D3: Channel Select Switch
D4: “TX” button
D5: Battery Compartment
D6: Stand
4. Getting Started
4.1 Main Unit:
Open main unit battery compartment cover [C1]
Insert 2 x AAA batteries observing polarity [“ +” and “ –“ marks]
Replace main unit battery compartment cover [C1]
Use a pin to press the RESET [B4] button on the rear of the main unit, the main unit is
now ready for use
4.2 Outdoor Thermo Sensor
Batteries compartment (D5) of thermo sensor is locating behind the back cover,
unscrews the batteries cover to open.
Insert 2 x AAA batteries observing polarity [ “+” and “–“ marks]
5. Installation
5.1 Main Unit
Place the main unit onto at surface (C3).
5.2 Outdoor Thermo sensor
The remote sensor should be securely mounted onto a horizontal surface.
Note:Transmissions between receiver and transmitter can reach up to 30m in open area.
Open Area: there are no interfering obstacles such as buildings, trees, vehicles, high
voltage lines, etc.
